Eco-Conscious by Design
Comfort and Connectivity
Aesthetically Pleasing Design
Say Goodbye to Tired Eyes
Commitment to Quality
Care for the Environment and You
Our Contribution to SDGs
Practical Viewing for Routine Tasks

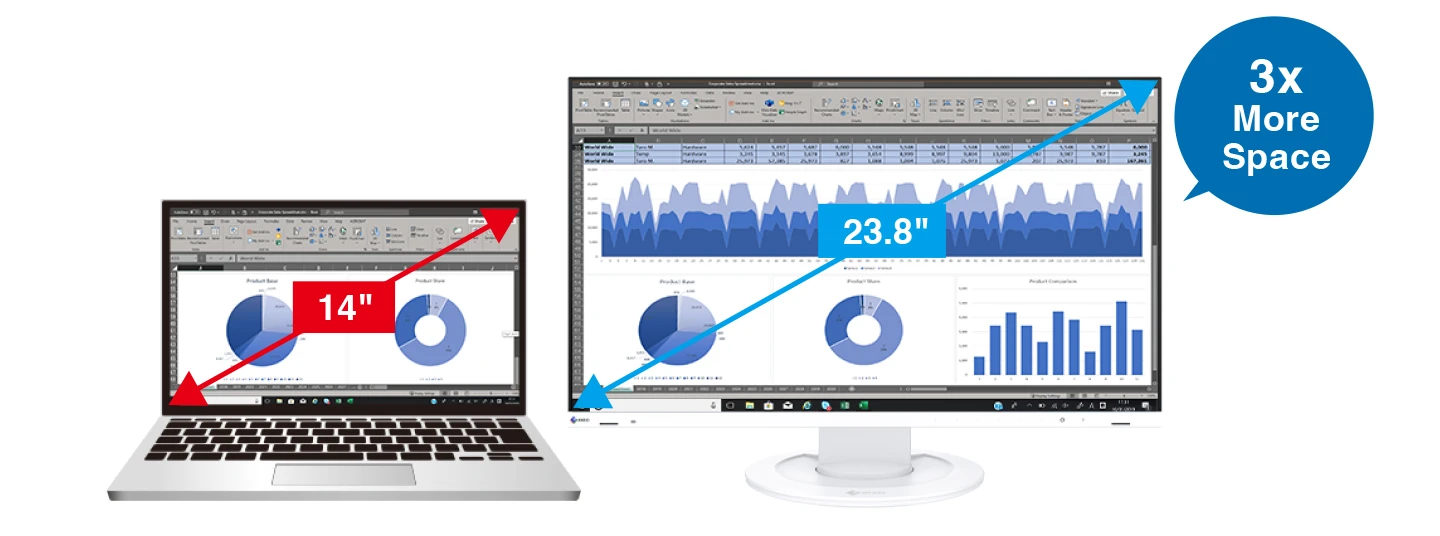

Expanded Viewing for Work Efficiency
Connecting your laptop to the 23.8-inch EV2400R expands your total screen space, helping you multitask efficiently by reducing the need to scroll or switch between windows. When paired with a 14-inch laptop, for example, the combined setup provides approximately three times the screen area compared to using the laptop alone.
Comfortably Fits in Modest Workspaces
The monitor features a space-saving design with a width of 537.8 mm and a depth of 233 mm, making it compact enough to fit comfortably in shared workspaces or smaller home offices.
100 Hz Refresh Rate
The EV2400R is the first FlexScan monitor to support a refresh rate of 100 Hz*, providing a subtle enhancement in motion smoothness during everyday tasks such as scrolling and window movement.
*The monitor's default refresh rate is set to 60 Hz.
Eco-Conscious by Design
Energy-Efficient for Low Carbon Footprint
The EV2400R consumes just 8 watts of power (typical). This helps reduce energy costs and contributes to a smaller carbon footprint, supporting your broader sustainability efforts.

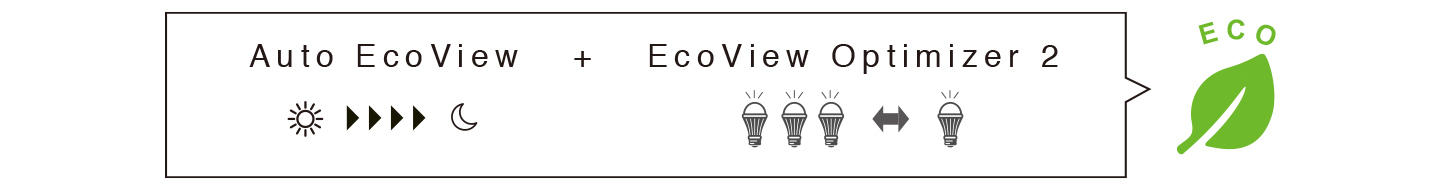

Smart Power Saving
The monitor’s Auto EcoView function uses a front-facing sensor to measure ambient light and automatically adjusts screen brightness throughout the day for optimal viewing. EcoView Optimizer 2 further fine-tunes brightness based on screen content to maintain visibility while conserving energy. Selecting the Eco Mode preset keeps both functions active, helping reduce power consumption up to 60%* compared to operating at maximum brightness.
*Compared to power consumption with no USB devices connected and brightness set to maximum.

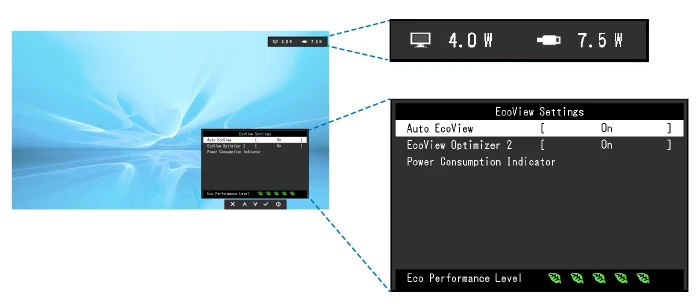

Power Consumption IndicatorPromote eco-consciousness by tracking the power consumption of the monitor and connected USB devices in real time through the OSD. You can also choose to display this information statically at the edge of the screen for quick, at-a-glance reference. |
|

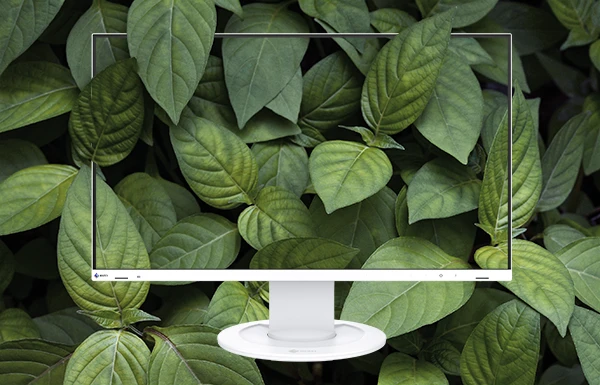

Low Environmental Impact MaterialsThe EV2400R's housing is made of more than 50% recycled plastic. This reduces the amount of plastic waste entering the environment, conserves resources, and promotes the reuse of materials to preserve our natural ecosystems. |
|
Comfort and Connectivity

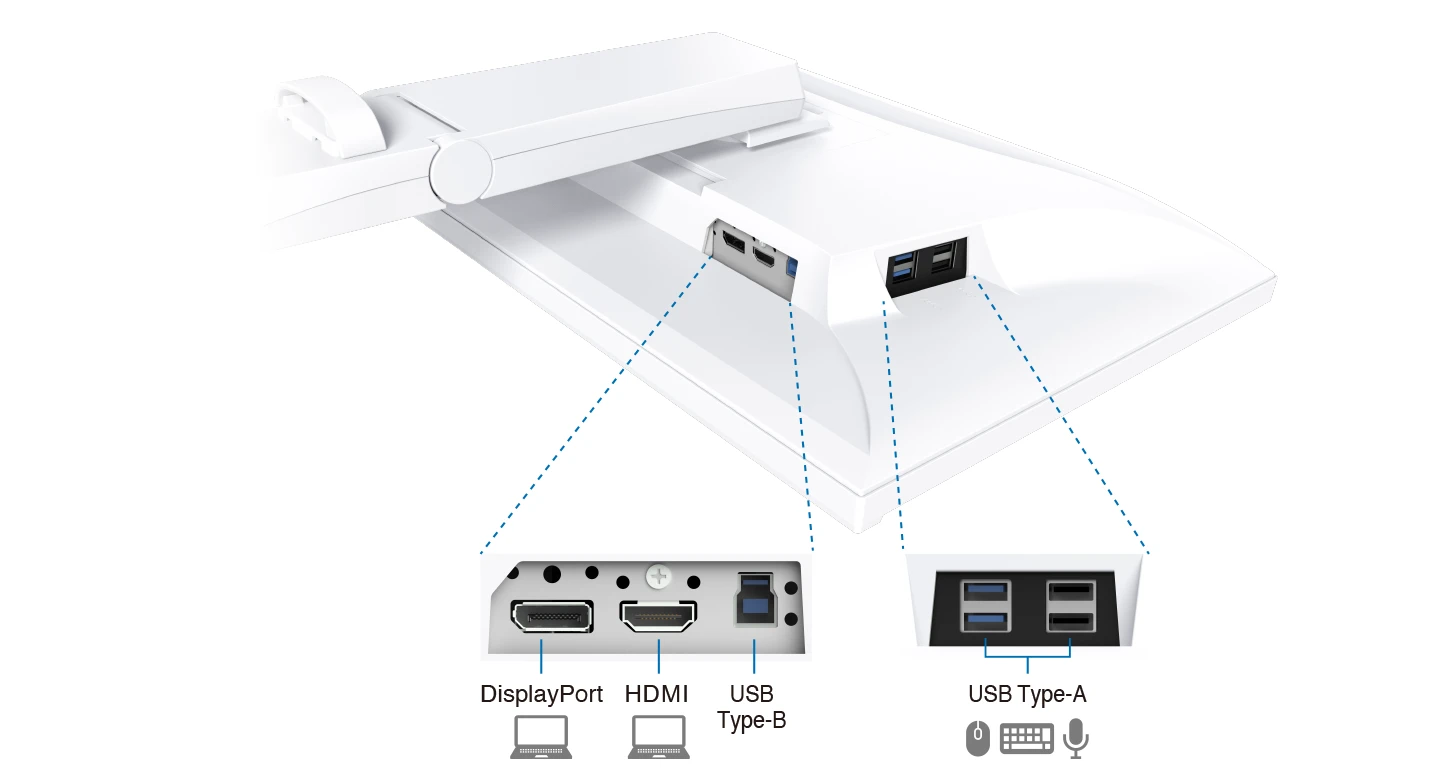

Convenient Connection
The monitor is equipped with DisplayPort™ and HDMI® input terminals, along with four USB Type-A ports conveniently located on the side for connecting peripheral devices.

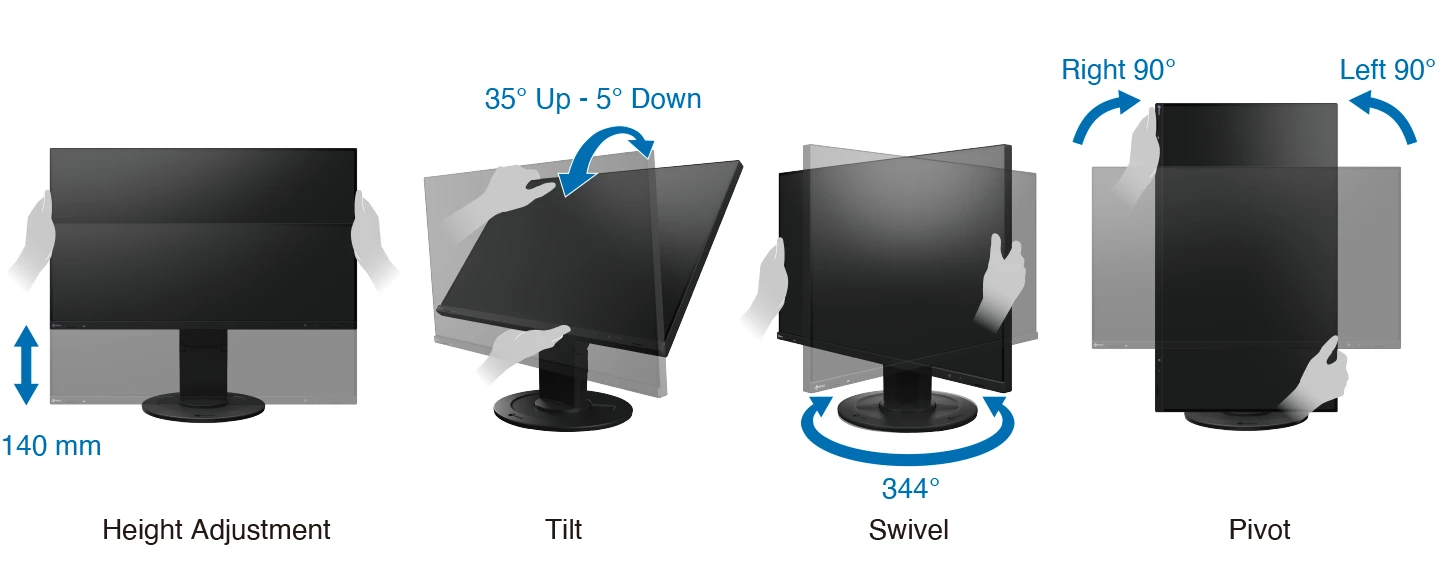

Versatile Stand for Optimal Positioning
The stand offers height adjustment, tilt, and swivel. It also supports pivot rotation for displaying long web pages or for convenient viewing in a multi-monitor setup. This flexibility allows you to position the screen to suit your workstyle.

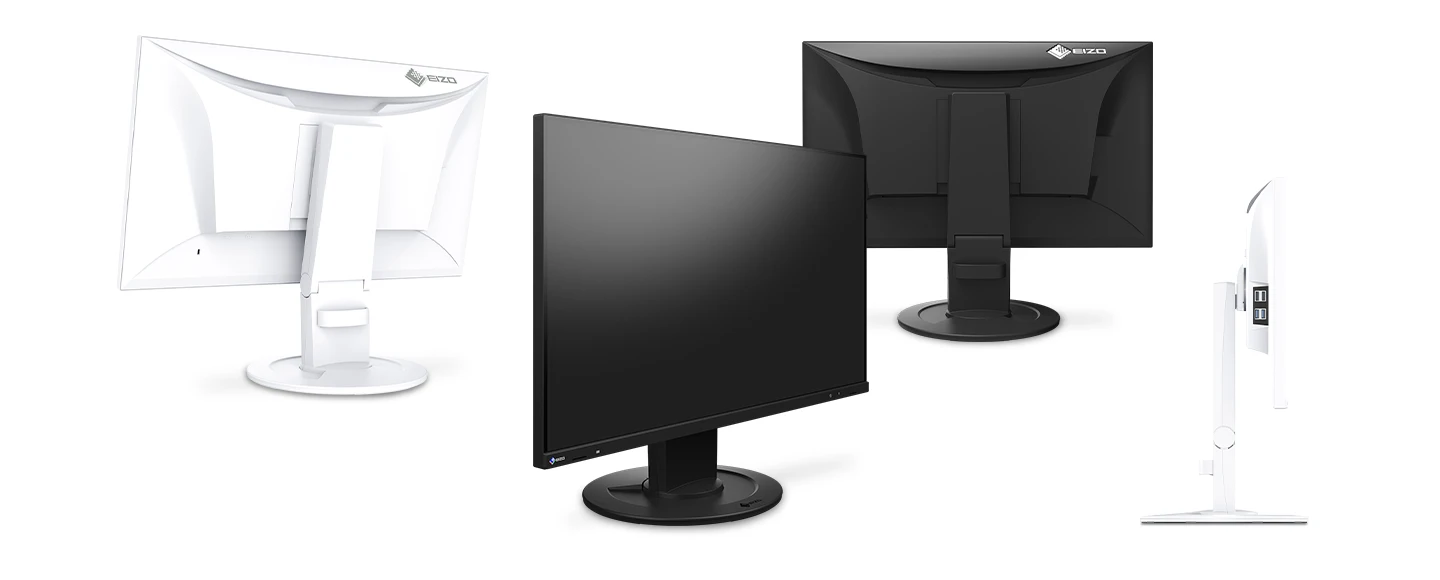

Aesthetically Pleasing Design
A monitor's aesthetic can go a long way in creating a more comfortable atmosphere. The monitor's minimalistic, ergonomic design allows it to fit naturally in any work environment.

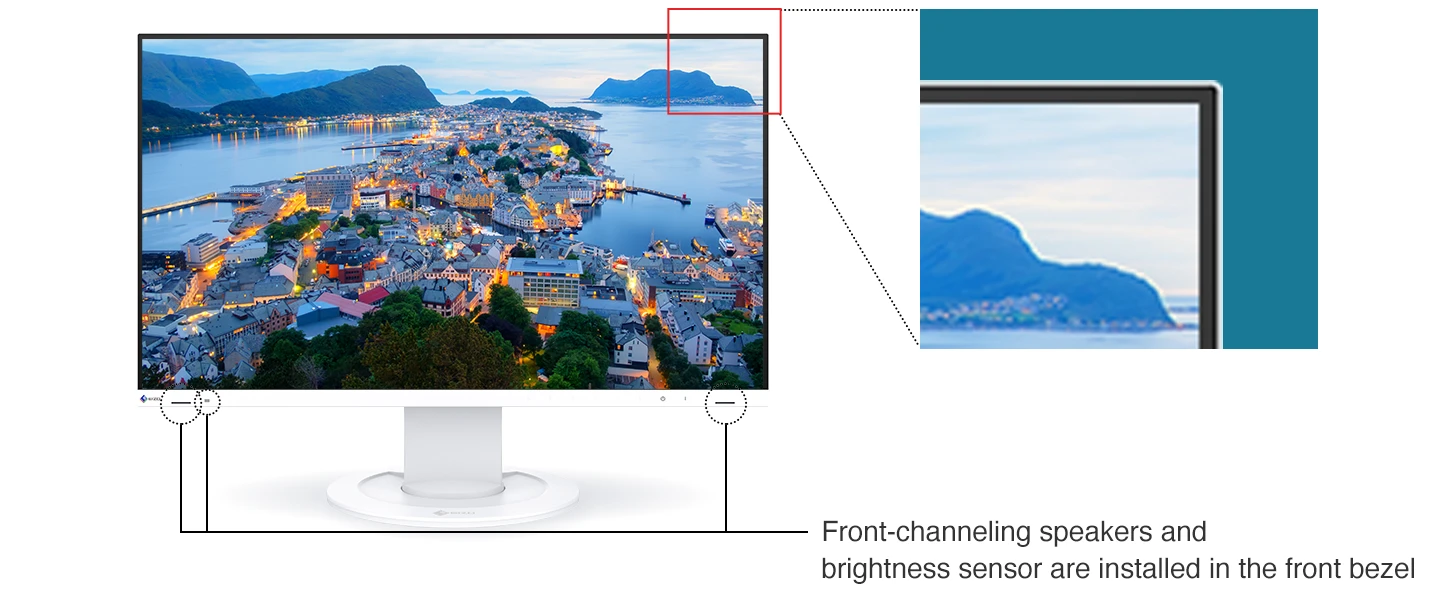

Bezels that are Barely There
The monitor features a three-sided frameless design for a sleek and minimalistic aesthetic. With minimal distance between the display area and the bezels, it seamlessly integrates into any environment.

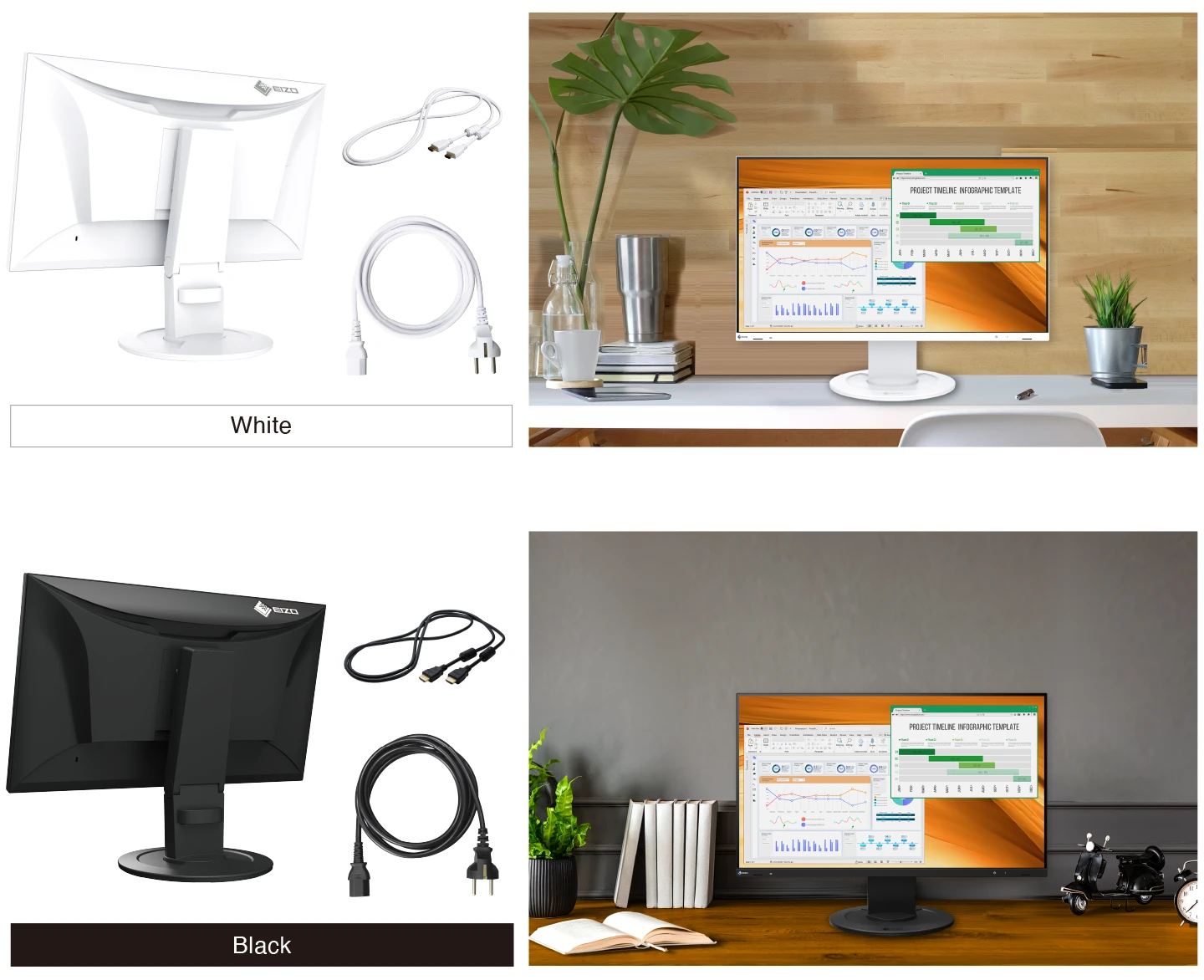

Color Coordination to Suit Your Workspace
The monitor cabinet is available in both white and black, with a matching stand and cables. Whether you prefer a bright, inviting aesthetic, or a chic, relaxed vibe, you can choose the color that best complements your workspace.
Tap below to see how EIZO fits into your workspace with augmented reality.
- Supported Models:
- iPhone 6s or later, iPad (5th generation or later)
- Supported Browsers:
- Safari, Chrome
Tap below to see how EIZO fits into your workspace with augmented reality.
- Supported Models:
- ARCore supported Android devices
- Supported Browsers:
- Chrome
-
Scan the code using your smartphone or tablet
to see how EIZO fits into your environment with augmented reality. - Supported Models:
- iPhone 6s or later, iPad (5th generation or later)
ARCore supported Android devices - Supported Browsers:
- Safari, Chrome

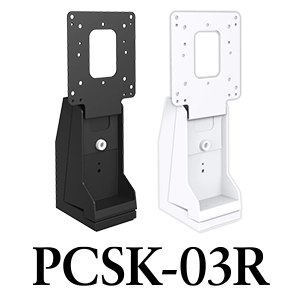

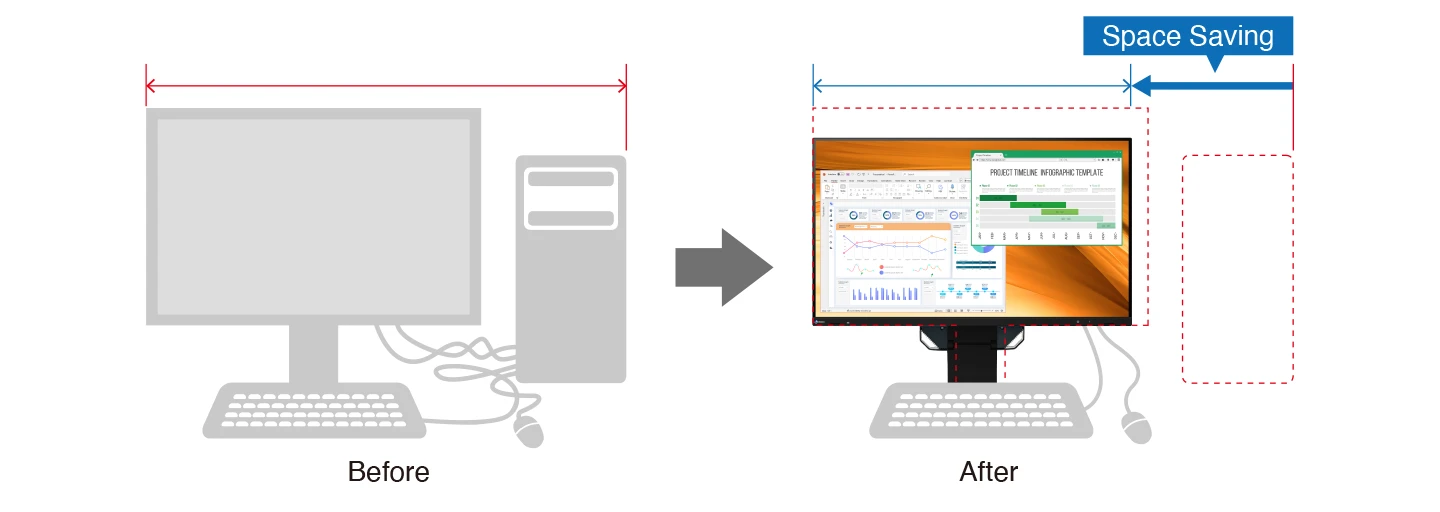

Free Up Your Workspace with a Stand BracketVESA-compliant stand brackets let you easily mount a client terminal, such as a thin client or mini PC, to the back of the monitor. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. Even with the client terminal attached you can adjust the monitor's stand freely. Read more about stand brackets |
|
Say Goodbye to Tired Eyes
The monitor is equipped with functions to help users concentrate on work by keeping their eyes comfortable throughout the day.

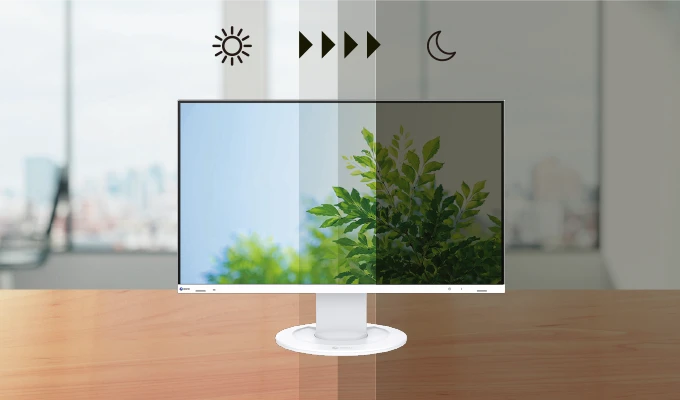

Auto Brightness Control
To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.

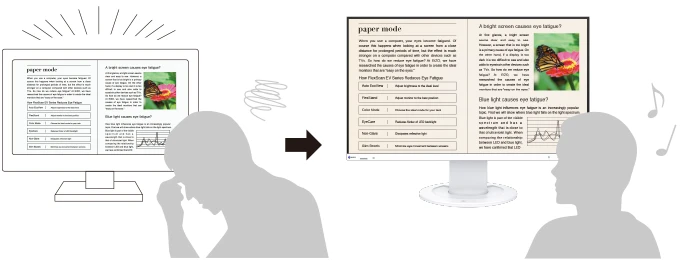

Reduce Blue Light by 80%
Paper Mode reduces the amount of blue light emitted from the monitor, helping to prevent eye fatigue when reading digital documents. When used in conjunction with the Auto EcoView auto-dimming function, blue light is reduced by up to 80%.

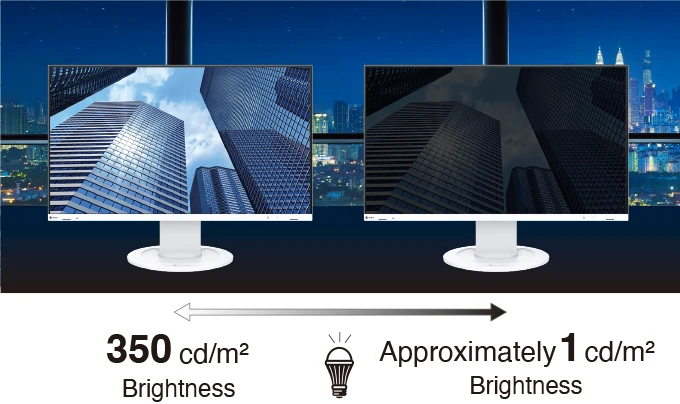

Minimum Brightness of 1 cd/m2
In a dimly lit work environment, a monitor with low brightness settings is more comfortable to use. The monitor is adjustable to approximately 1 cd/m², which is less than 1% of the maximum.

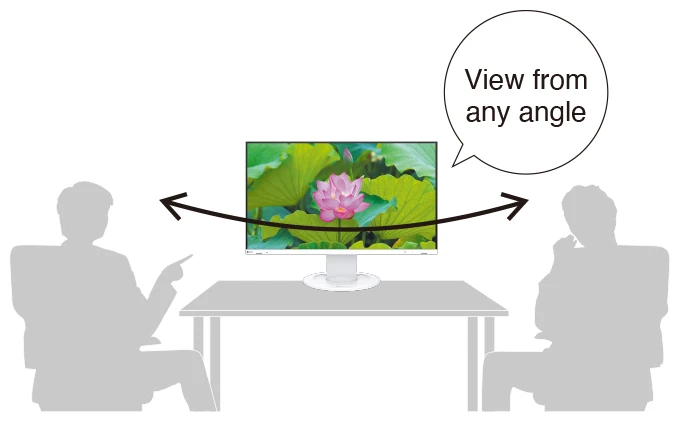

Clear View from Any Angle
The monitor uses an IPS panel with wide viewing angles that minimize color shifts and contrast changes. This ensures consistent image quality from any position.

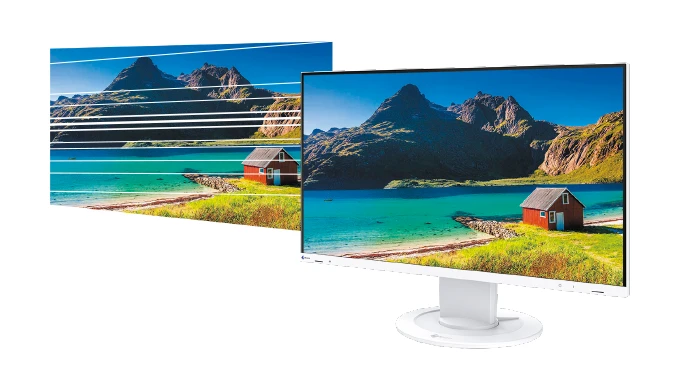

Flicker-Free Viewing
Due to the way brightness is controlled on LED backlights, some people experience flicker on the screen, causing eye fatigue. The monitor uses a hybrid solution to regulate brightness and eliminate perceived flicker without compromising color stability, even at low brightness settings.

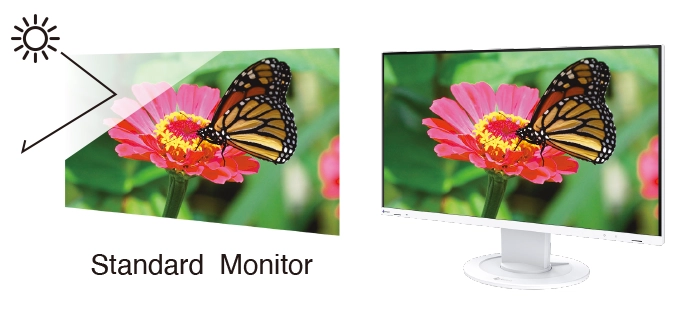

Glare Reduction
The panel is treated with an anti-glare coating to reduce screen reflections caused by ambient light. This makes the screen easier to see and helps reduce eye fatigue.
Learn more about how to combat eye fatigue
Certified for Eye Care
FlexScan monitors are certified by TÜV Rheinland to have low blue light and be flicker-free.
Commitment to Quality

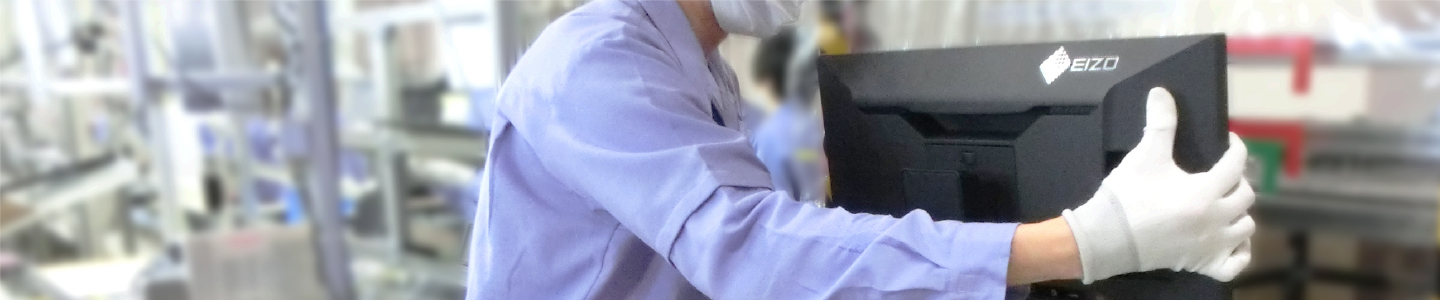

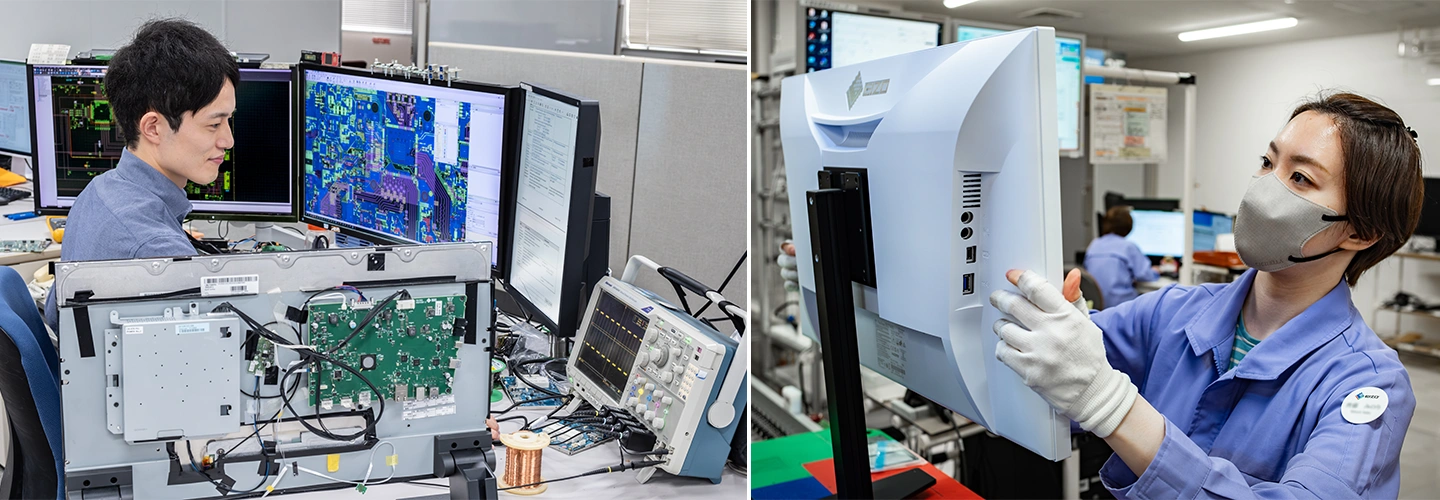

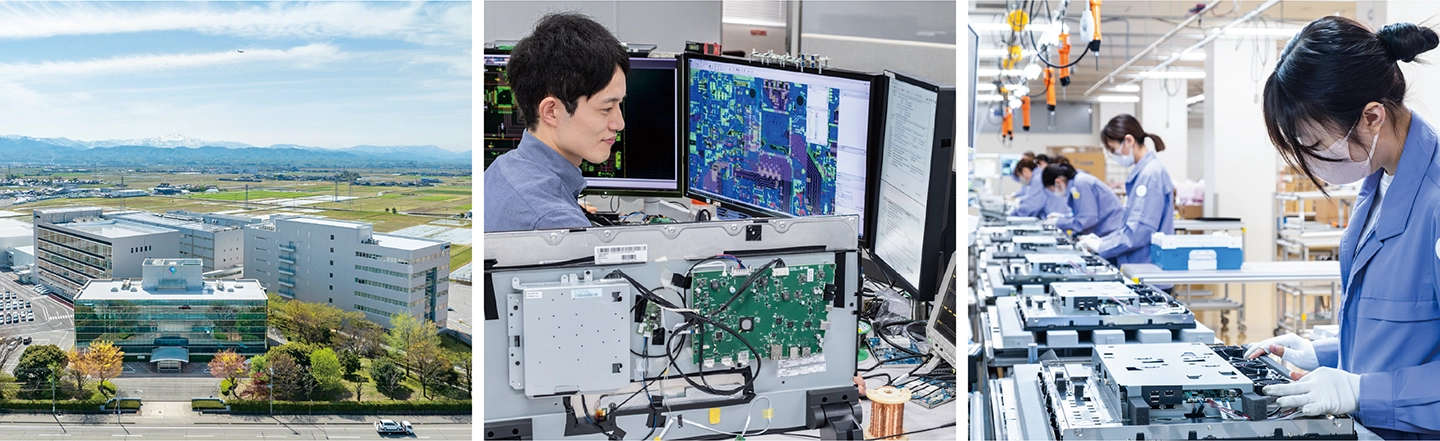

Integrated Approach
From research and development to manufacturing and quality control, EIZO believes that retaining control over the entire production chain is key to delivering unparalleled quality.

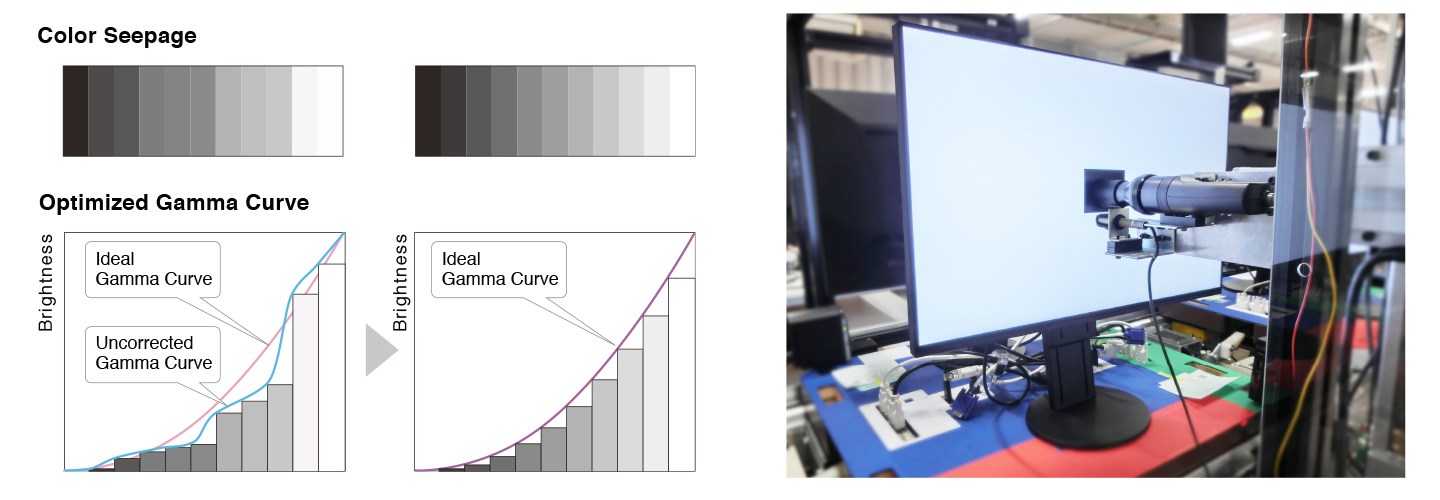

Exceptional Image Reproduction
The monitor internally converts the data from an 8-bit input signal to select the optimal gradations for smooth image display. Each monitor is individually measured and adjusted at the factory prior to shipping for exceptional image quality out of the box.
5-Year Warranty
FlexScan monitors are backed by a standard 5-year manufacturer's warranty that covers all components, including the LCD panel*. This extensive warranty period is two years longer than the standard warranty of most conventional monitors. EIZO's 5-year manufacturer's warranty contributes to significantly lower product life cycle costs. |
|
Zero Bright PixelsEIZO guarantees its FlexScan monitors will be free from bright sub-pixels for six months from the date of purchase. |
|
Care for the Environment and You
EIZO is committed to environmentally conscious product development, from the manufacturing process to the user experience. EIZO FlexScan monitors are at the forefront of these efforts, supporting users and organizations concerned with ESG (environmental, social, and governance) investments and SDGs (sustainable development goals).
Read more about Product Sustainability

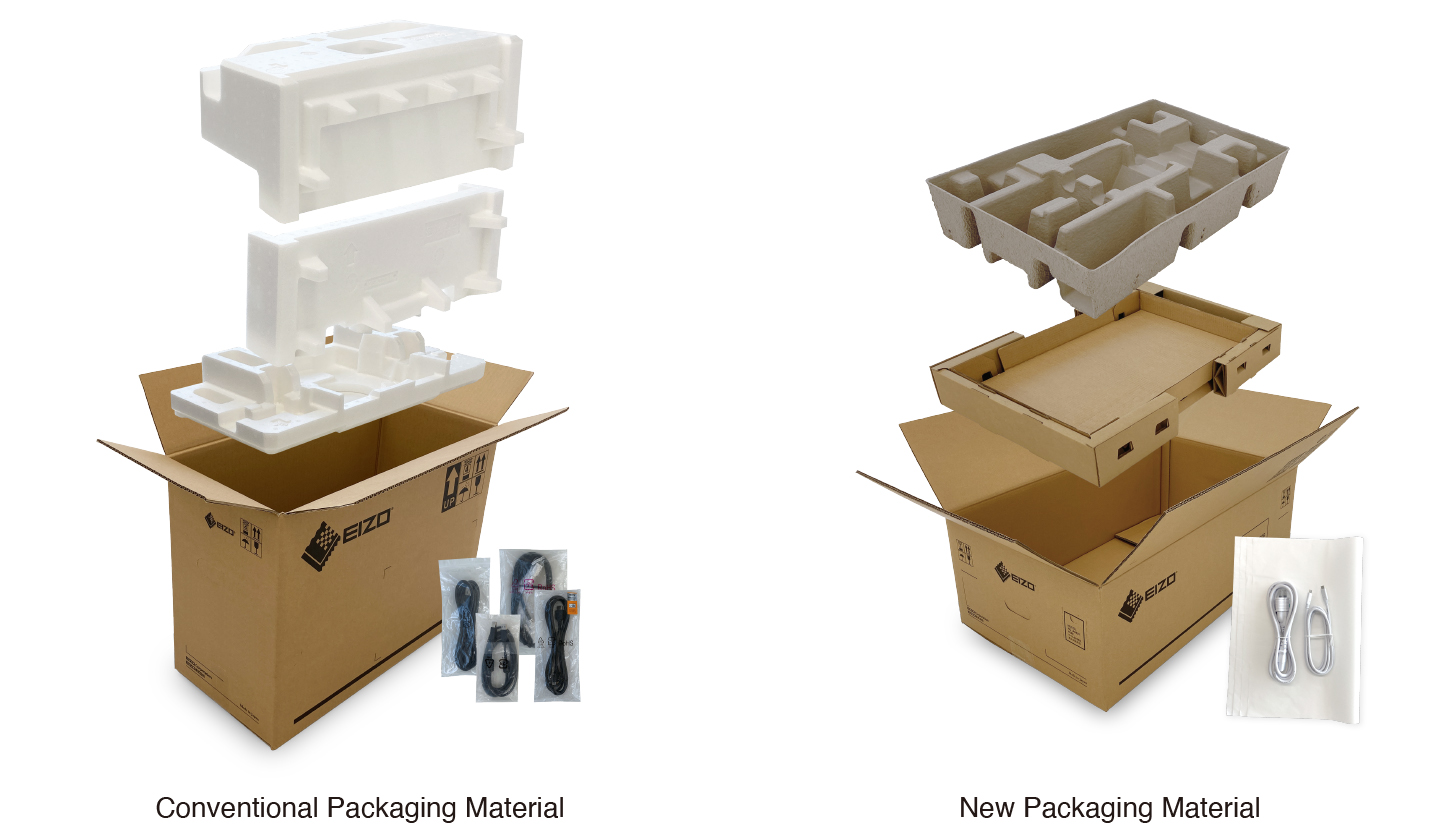

Eco-Conscious Packaging
EIZO is committed to reducing its environmental impact by transitioning away from plastic and other environmentally unfriendly materials in product packaging. The EV2400R is safely packed using molded pulp made from recycled cardboard and newspaper, and its cables are wrapped in paper instead of plastic bags.

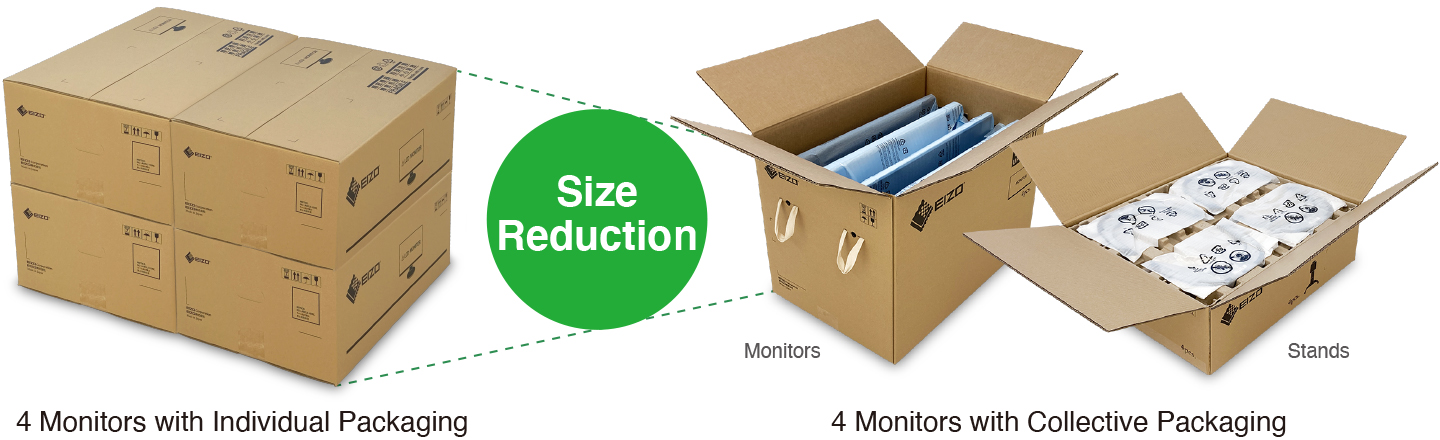

Collective Environmental Consciousness
EIZO offers corporate customers a collective packaging option to support their sustainability goals. Four monitors are packaged in a single box, while the stands are packaged separately in another box. Unnecessary stands or cables can be excluded upon request. This approach minimizes waste, improves loading efficiency during shipping, and streamlines unpacking and installation time.
EIZO's Collective Packaging Wins International Packaging Award
Certified Sustainable
The EV2400R is certified by worldwide comprehensive sustainability standards, including TCO Certified generation 10 and the ENERGY STAR® label. Furthermore, the monitor has achieved the highest tier of EPEAT Gold and the EPEAT Climate+ designation, highlighting EIZO's commitment to sustainability. Organizations concerned with ESG (environmental, social, and governance) investments or SDGs can confidently procure the monitor to meet required guidelines.
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
 |
|
Environmentally Conscious Product Development FlexScan embodies EIZO's commitment to sustainability through the use of recycled materials and low-impact components. The monitors are optimized for energy efficiency, contributing to lower greenhouse gas (GHG) emissions. EIZO also collects and recycles used products to further minimize environmental impact. We strive to promote efficient and circular resource use across every stage of the product lifecycle - from parts and materials procurement to manufacturing, transportation, user experience, and end-of-life disposal. All production sites at EIZO's headquarters in Japan operate on 100% renewable energy. |
   |
|
|
Workstyle Innovation and Productivity FlexScan offers a versatile lineup and user-friendly features to support a wide range of workstyles. Each monitor can be adjusted to match individual preferences for screen position and display settings, while integrated eye care technologies help reduce eye fatigue during use. With reliable image quality and thoughtful design, FlexScan empowers business professionals to work more efficiently and comfortably. |
 |
| Model Variations |

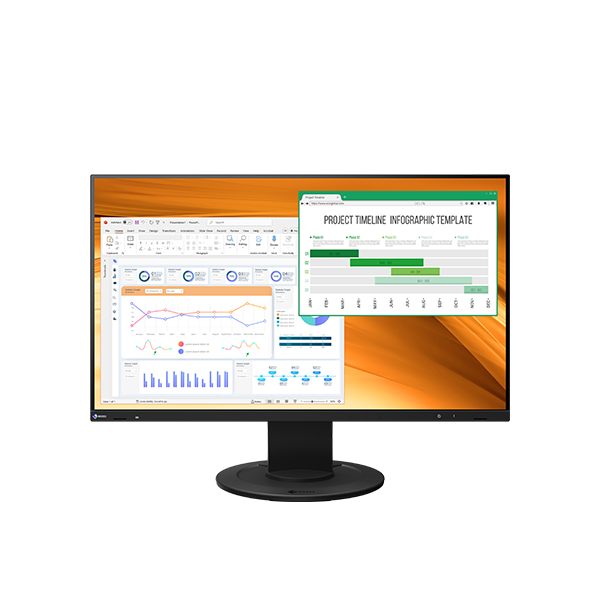

EV2400R-BK: with FlexStand, black

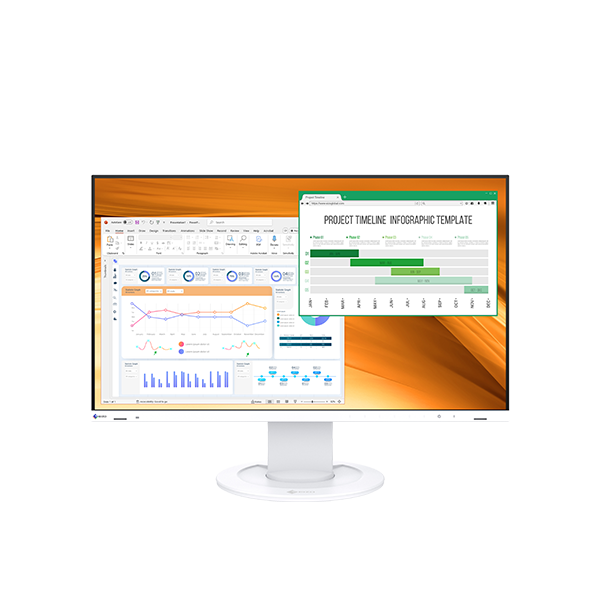

EV2400R-WT: with FlexStand, white EV2400R-FBK: without stand, black EV2400R-FWT: without stand, white Note: FlexStand is removable |
|---|---|
| Panel | |
| Type | IPS |
| Backlight | LED |
| Size | 23.8" (60.5 cm) |
| Native Resolution | 1920 x 1080 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 527 x 296.5 mm |
| Pixel Pitch (H x V) | 0.275 x 0.275 mm |
| Pixel Density | 93 ppi |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 350 cd/m2 |
| Contrast Ratio (typical) | 1500:1 |
| Response Time (typical) | 5 ms (gray-to-gray) |
| Color Gamut (typical) | sRGB |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP 1.3), HDMI (HDCP 1.4) |
| Digital Scanning Frequency (H / V) |
DisplayPort: 31 - 114 kHz / 59 - 100 Hz
HDMI: 31 - 114 kHz / 49 - 100 Hz |
| USB | |
| Upstream | USB 5Gbps: Type-B |
| Downstream |
USB 5Gbps: Type-A x 2
USB 2.0: Type-A x 2 |
| Audio | |
| Speakers | 1.0 W + 1.0 W |
| Input Terminals | DisplayPort, HDMI |
| Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 8 W |
| Maximum Power Consumption | 43 W |
| Power Save Mode | 0.37 W |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB, Eco, Paper, Movie, DICOM |
| Automatic Brightness Control | Auto EcoView |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 537.8 x 333.6 - 473.6 x 233 mm |
| Dimensions (Without Stand, W x H x D) | 537.8 x 317.5 x 57 mm |
| Net Weight | 5.6 kg |
| Net Weight (Without Stand) | 3.5 kg |
| Height Adjustment Range | 140 mm |
| Tilt | 35° Up, 5° Down |
| Swivel | 344° |
| Pivot | 90° (both clockwise and counter clockwise) |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Operating Temperature | 5 - 35°C |
| Operating Humidity (R.H., non condensing) | 20 - 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | TCO Certified, generation 10, EPEAT Gold with Climate+, TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES (B), TUV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC |
| Dedicated Software | |
| Monitor Control Utility Screen InStyle | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DisplayPort (2 m) |
| Others | AC power cord (2 m), USB Type-A - USB Type-B cable (2 m), setup guide |
| Warranty |
5 Years
Zero bright sub-pixels for six months from date of purchase. |
| Dimension Drawing |
- 2 With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
- 5 If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
- 16 EPEAT registration varies by country. Please check https://www.epeat.net for registration status.
