FlexScan EV2760
27" (68.5 cm) LCD Monitor
Refresh your Workstyle
  • Contact EIZO

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

High Resolution in a Space-Saving Design

The EV2760 uses a 27-inch IPS panel with WQHD (2560 x 1440) resolution, which offers 78% more pixels than conventional full HD (1920 x 1080) monitors. You can easily open multiple windows on the screen for efficient multi-tasking. Moreover, it incorporates a frameless design with width of just 611.7 mm, a new flexible stand featuring high adjustment range, and narrow depth for a neater desktop.

High Resolution in a Space-Saving Design




Smarter Usage, Higher Efficency

1. Space-Efficient Multi-Screen Environment

Easily place a laptop or a tablet under the monitor to realize a convenient multi-screen environment thanks to the flexible stand with 169 mm height adjustment range, which is 14 mm higher than a previous model. This gives you ample space to work freely and more efficiently when using multiple business applications, such as Excel and PowerPoint.

Realize Multi Screens




2. Comfortable Idea Sharing with Your Team

The monitor's space-saving body has a depth of 230 mm, which is 15 mm thinner than a previous model, all while housing a large 27-inch screen. This makes it comfortable to use in close-communication workspaces for easily sharing ideas. Furthermore, it uses an IPS (in-plane switching) panel with 178° viewing angles that minimizes color and contrast shift when viewed from the side for a clear view.

Share Your Ideas quickly in a Meeting






Lower Impact on the Environment



1. Reduced Power by 27%

The EV2760 is completely redesigned to reduce the power conumption to as little as 16 W, which is 27% lower than a previous model.

  Reduced Power by 27%



2. Relief for Your Eyes and the Environment

The EV2760 implements EIZO's proprietary EcoView technologies, which cut power consumption by as much as 50% compared to displaying at maximum brightness and help to eliminate eyestrain when viewing the monitor for long periods.



  • Auto EcoView: Automatically adjusts the screen’s brightness according to changes in the ambient lighting
  • EcoView Optimizer 2: Fine-tunes the balance between brightness and gain according to the content displayed on the screen.



Furthermore, as part of its efforts to maintain environmentally responsible manufacturing, EIZO developed the monitor without flame retardant in the plastic body to improve recyclability. EIZO also uses recyclable packing for the boxes the monitor is shipped in.



Relief for Your Eyes and the Environment



3. Rest Assured with Major Sustainability Standards

The monitor is certified by major comprehensive sustainability standards such as TCO Certified Generation 8, EPEAT, and EnergyStar. Organizations concerned with ESG investments or SDGs can assuredly procure the monitor to meet required guidelines.

<Examples of Compliance>

  • Safe use of chemicals in cable insulations
  • Extensive after-service information transparency throughout product life
  • Safe management of chemicals throughout the manufacturing process
  • Appropriate employee work hour management
  • Anti-corruption company management system
  • Responsible procurement of minerals (now including cobalt)
  • Disclosure of information regarding energy management



EU Energy Label   TCO   ENERGY STAR   EPEAT Green   SDG07.png   SDG12.png






Optimized for Hot Desking

1. Take Your Settings with You

EIZO's Screen InStyle proprietary software's Color Briefcase allows you to effortlessly maintain your individual screen preferences and take them with you, even to different monitors. Your settings are automatically reflected simply by connecting your laptop to a monitor supported by Screen InStyle. This is useful in environments with hot-desking or shared workspaces, providing enhanced comfort and work efficiency.

Color Briefcase
Applicable Settings

2. The Perfect Position

The stand features wide range height adjustment, tilt, and swivel, while saving space and remaining stylish. You can adjust your monitor to the perfect position with ease.

The Perfect Position



The Perfect Position

3. Refreshing White with Frameless Design

The EV2760 comes with a white cabinet option with matching cables. Compared to black, white monitors offer a refreshing change that brightens the office with style. The frameless design further sophisticates the look.

Refreshing White with Frameless Design

Refreshing White with Frameless Design




Say Goodbye to Tired Eyes

The EV2760 is equipped with functions to help prevent eye fatigue, so you can concentrate on work throughout the day without tiring.



Auto Brightness Control

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.


Auto Brightness Control



Reduce Blue Light by 80%

In the visible light spectrum, blue light has wavelengths adjacent to ultraviolet light. Compared to the factory preset setting of 6500 K of typical LCD monitors, Paper Mode is closer to the spectral distribution with long reddish wavelengths so it reduces the amount of blue light, a cause of eye fatigue, and helps prevent eyestrain when reading documents. When used in conjunction with Auto EcoView dimming function, blue light can be reduced by as much as 80%.

Reduce Blue Light by 80%

Minimum Brightness of Approximately 1 cd/m2

In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the monitor is adjustable to approximately 1 cd/m² which is less than 1% of the maximum.

Minimum Brightness of Approximately 1 cd/m2

Clear View from All Angles

The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at the one computer can easily see the screen with high image quality.

Clear View from All Angles



Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The FlexScan EV2760 utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.



Flicker-Free Viewing

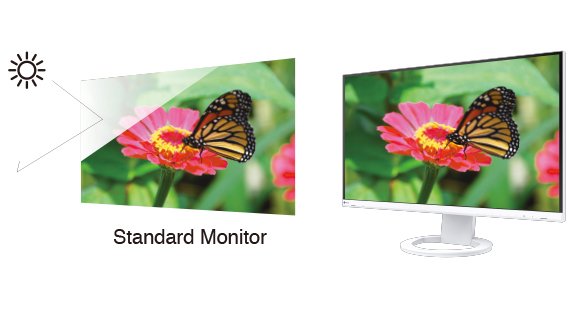

Anti-Glare Coating

The EV2760 is treated with an anti-glare coating to reduce screen reflections caused by ambient lighting. The coating scatters incoming light, reducing the amount of light reflected into your eyes.


Anti-Glare Coating



tuvrheinland logo


  • FlexScan monitors are certified by TÜV Rheinland to have low blue light and be flicker-free.






Additional Convenience

Connectivity on the Side and Back

The monitor is equipped with four input terminals: 2 x DisplayPort, HDMI and DVI-D. Four USB 3.1 Type-A ports and a headphone jack are also installed for convenient connection with peripheral devices.

Connectivity on the Side and Back



Rear Terminal and Side Terminal



Picture by Picture

The FlexScan EV2760 lets you view data from two input sources at once such as a Windows and a Mac computer with no distracting bezel in between.

Picture by Picture



Free Up Your Workspace with a Stand Bracket

The PCSK-03 is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor's stand. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. Even with the client terminal attached you can adjust the monitor's stand freely.

Free Up Your Workspace with a Stand Bracket



5-Year Warranty

5-year.jpgA manufacturer’s 5-year warranty covers all components including the LCD panel* to ensure a long service life. This warranty is 2 years or 67% longer than the standard 3-year warranty of most monitor brands for significantly lower running costs.

* Usage time is limited to 30,000 hours.



Zero Bright Pixels

Zero bright policyEIZO guarantees this product will be free from bright sub-pixels for six months.

See our Bright Pixel Policy for details.





Our Contribution to SDGs

As part of its corporate social responsibility (CSR) activities, EIZO is contributing towards the United Nations’ Sustainable Development Goals (SDGs).

SDGs Logo


■Environmentally Friendly

This contribution extends to our FlexScan Monitors; environmentally friendly monitors made with ever improving energy efficiency, using recycled plastics and sustainably procured materials, boxed in recyclable packaging, and with a responsible after-service recycling system.

Learn more


■Higher Work Efficiency

Furthermore, with innovate technology and software, we aim to improve the working conditions and work efficiency of users. Through these features and more, FlexScan monitors are upholding the values of the UN’s Sustainable Development Goals, toward a brighter and more sustainable tomorrow.

Learn more




Read about our recent activities in our annual CSR report.

Model Variations EV2760-BK: with FlexStand, black
EV2760-WT: with FlexStand, white
EV2760-FBK: without stand, black
EV2760-FWT: without stand, white

Note: FlexStand is removable
Panel
Type IPS
Backlight LED
Size 27" / 68.5 cm
Native Resolution 2560 x 1440 (16:9 aspect ratio)
Viewable Image Size (H x V) 596.7 x 335.7 mm
Pixel Pitch 0.233 x 0.233 mm
Pixel Density 109 ppi
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 5 ms (gray-to-gray)
Color Gamut (typical) sRGB
Video Signals
Input Terminals DisplayPort (HDCP 1.3) x 2, HDMI (HDCP 1.4), DVI-D (HDCP 1.4)
Digital Scanning Frequency (H / V) DisplayPort: 31 - 89 kHz / 59 - 61 Hz
HDMI: 31 - 89 kHz / 29 - 31 Hz, 49 - 51 Hz, 59 - 61 Hz
DVI: 31 - 89 kHz / 29 - 31 Hz, 59 - 61 Hz
USB
Upstream USB 3.1 Gen 1: Type-B
Downstream USB 3.1 Gen 1: Type-A x 4
Audio
Speakers 1.0 W + 1.0 W
Input Terminals Stereo mini jack, DisplayPort x 2, HDMI
Output Terminals Headphones (Stereo mini jack)
Power
Power Requirements AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption 16 W
Maximum Power Consumption 67 W
Power Save Mode 0.5 W or less
Features & Functions
Preset Modes Color mode (User1, User2, sRGB, Paper, Movie, DICOM)
Auto EcoView Yes
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D) 611.7 x 376.3 - 545.3 x 230 mm
Dimensions (Portrait, W x H x D) 364.4 x 623.3 - 675.9 x 230 mm
Dimensions (Without Stand, W x H x D) 611.7 x 364.4 x 53.7 mm
Net Weight 8.5 kg
Net Weight (Without Stand) 5.7 kg
Height Adjustment Range 169 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90°(both clockwise and counter clockwise)
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) TCO Certified Generation 8, EPEAT 2018 (US), TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, China Energy Label Grade2, EAC
Dedicated Software
Monitor Control Utility Screen InStyle Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables DisplayPort (2 m)
Others AC power cord (2 m), USB cable (2 m), Screw for VESA mount x 4, setup guide
Warranty Five Years
Zero bright sub-pixels for six months from date of purchase.
Dimension Drawing PDF
