Reference Materials for Furthering Your Creativity
Simple and Precise Color Management

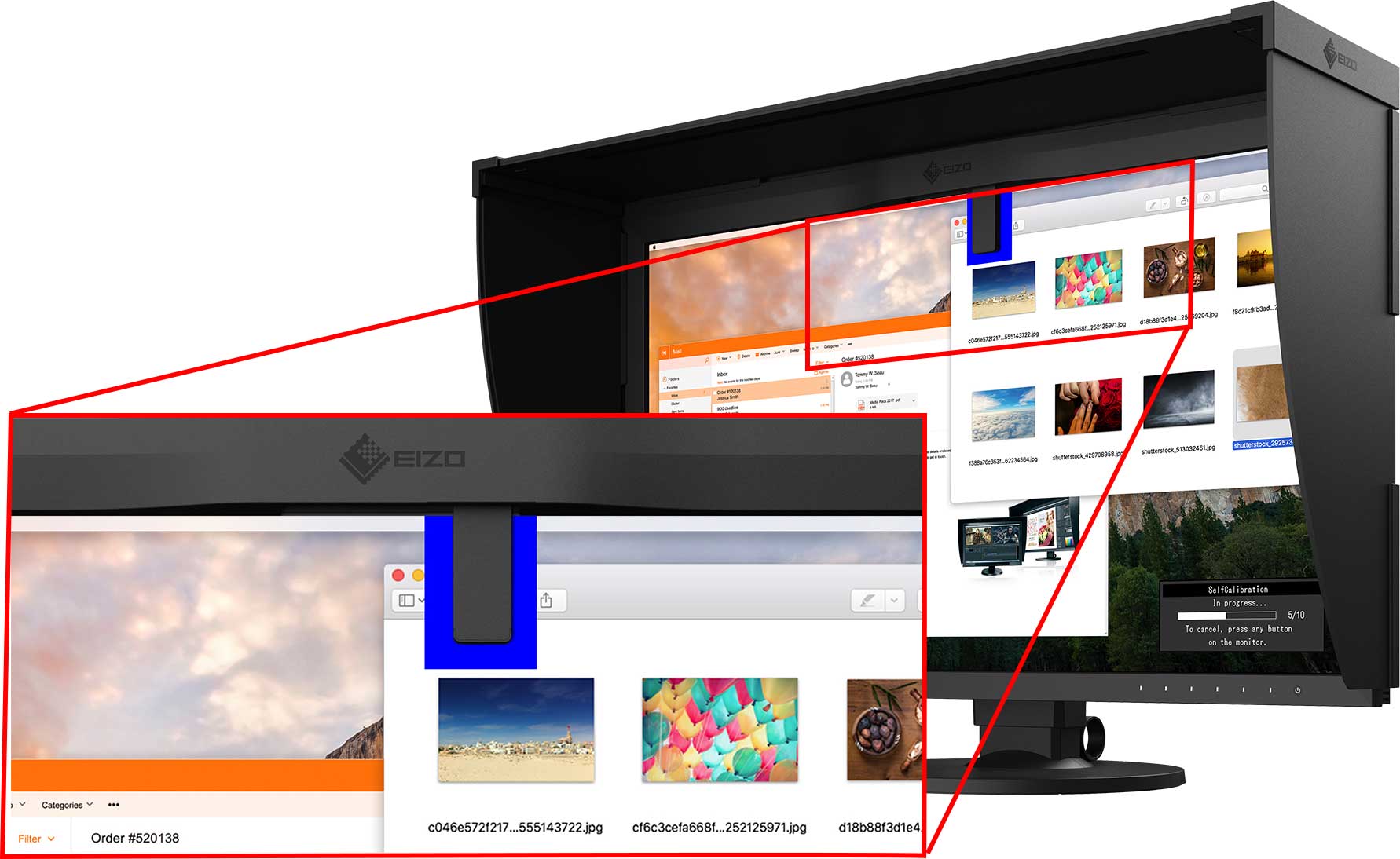

Built-In Sensor to Automate Your Workflow
The ColorEdge CG279X is equipped with a built-in sensor which can be set to calibrate the monitor automatically at designated times. This eliminates the need for a third-party calibration device and ensures your screen stays color-accurate. In addition, the monitor features the latest sensor technology, which allows you to continue using it even during recalibration. The sensor swings onto the screen, taking up minimal space, so your work remains uninterrupted.
It is not recommended to carry out color-critical work during recalibration as the screen's colors will be adjusted.
ColorNavigator 7 Color Management Software
ColorNavigator 7 is the latest calibration and quality control software for ColorEdge color management monitors. It combines all the features of EIZO's previous color management software, ColorNavigator 6 and ColorNavigator NX, to create a new and improved solution for creatives in a range of fields. The proprietary software makes calibration simple and produces predictable results for photography, design, print, and video creation.
ColorNavigator Network Color Management Software
ColorNavigator Network provides centralized quality control of ColorEdge monitors that have ColorNavigator 7 or NX installed. Administrators can set color modes, schedule self-calibration, register or adjust asset management settings, and other tasks whether the monitors are local or remote. ColorNavigator Network is hosted on a secure cloud server to free you from the initial investment and running costs of providing your own server.
Features for Video Editing and Post Production
HDR Gamma Support
The ColorEdge CG279X is equipped with HLG (hybrid log-gamma) and the PQ (perceptual quantization) curve for displaying and editing HDR (high dynamic range) video content. The optimized gamma curves render images to appear more true to how the human eye perceives the real world compared to SDR (standard dynamic range). This ensures professional creators can reliably display HDR content for editing and color grading.
Vivid Colors Reproduced to Industry Standards
This wide-gamut monitor faithfully reproduces 98% of the DCI-P3 standard used in digital cinema and supports the BT.2020 standard used in broadcasting. In addition, it covers 99% of the Adobe RGB color space so images shot in Adobe RGB will be displayed correctly. The wide color gamut also ensures reproduction of almost the entire ISO-coated and US web-coated CMYK color spaces used in printing.
True Black Display
In compliance with the DCI standard, the ColorEdge CG279X offers a high contrast ratio of 1300:1* for producing true blacks that are otherwise difficult to display on a typical LCD monitor. When viewing the screen from an angle in a dimly lit room, dark tones typically appear washed out due to the display characteristics of LCD backlights. The CG Series is equipped with a retardation film which allows tones to retain their depth even when viewed from an angle.
* Typical value when DUE Priority is set to "Brightness".
3D LUT for Accurate Color Display
A 3D LUT is included which adjusts colors individually on an RGB cubic table. With the supported ColorNavigator 7 software’s emulation function, creators can check how content will appear to their audience. The 3D LUT also improves the monitor's additive color mixture (combination of RGB), which is a key factor in its ability to display neutral gray tones.
10-Bit Simultaneous Display
With 10-bit simultaneous display from a 16-bit look-up-table (LUT), the ColorEdge CG279X can show more than one billion colors simultaneously. This results in smooth color gradations and reduced Delta-E between two adjacent colors.
Broadcast and Cinema Presets
Preset modes for DCI-P3, BT.709, and BT.2020 ensure you can work in the appropriate color spaces and gamma values. In addition, preset modes for PQ (DCI and BT.2100) and HLG (BT.2100) are available for viewing HDR content. With the built-in calibration sensor, you can conveniently adjust or maintain the brightness setting for each preset.
Safe Area Marker
A safe area marker designates the area of the screen that will be displayed when the monitor is connected to a particular device. This allows you to check that subtitles and other text will be visible. The color of the marker is changeable to ensure it remains with any imagery.
Features for Stable Image Display
Adjusted at the Factory for Smooth Color Gradations
The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the 256 most appropriate tones and achieve the desired value. This ensures the smoothest color gradations in your images.
Stable Display Technology for Unrivaled ColorEdge Quality
The color and brightness of an LCD monitor can shift due to changes in ambient temperature and the temperature of the monitor itself. ColorEdge monitors are equipped with a temperature sensor for accurately measuring the temperature inside the monitor, as well as estimating the temperature of the surrounding environment. With this temperature sensing and estimation technology, the monitor adjusts in real-time so gradations, color, brightness, and other characteristics continue to be displayed accurately. Furthermore, EIZO uses AI (artificial intelligence)* in the estimation algorithm of the CG279X so it can distinguish between various temperature changing patterns to calculate even more accurate correction.
Stable Color in Just 3 Minutes
A typical monitor takes 30 minutes or more for its brightness, chromaticity, and tone characteristics to stabilize. The ColorEdge CG279X takes a mere 3 minutes. Whether you are working in a studio or taking the monitor with you on location, you get reliable color display soon after turning the monitor on.
Uniformity Across the Screen
Fluctuations in brightness and chromaticity on different parts of the screen are a common trait of LCD monitors. ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology which counterbalances the influences that a fluctuating temperature may have on color temperature and brightness for stable image display.
Sleek, User-Friendly Design
The ColorEdge CG279X features a sleek new cabinet design so you can focus more on the screen. The bottom bezel is approximately 46% slimmer and monitor depth approximately 20% thinner compare to the previous model.
Seamless Electrostatic Switches
The flat design uses electrostatic switches on the front bezel in place of traditional buttons for seamless access to monitor settings.

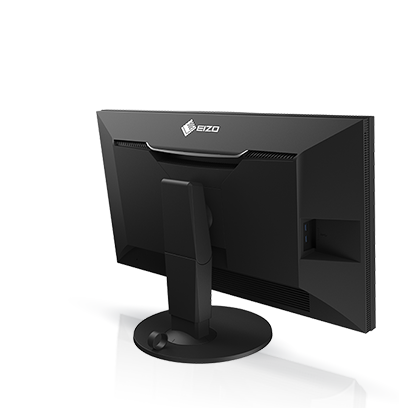

Built-In Carrying Handle
A carrying handle on the back of the monitor allows you to easily move it from one location to another. The monitor is also 20% lighter than its predecessor, weighing just 10.3 kg, making it even easier to carry.
Features for Comfort and Ease-of-Use
Minimized Reflections with Non-Glare Panel
The monitor is equipped with an IPS non-glare panel for high visibility. It also uses dimming technology to minimize flicker and help prevent eye fatigue for a more comfortable working environment.
I/P Conversion for Flicker-Free Display
The HDMI input of the ColorEdge CG279X supports I/P (interlace/progressive) conversion for converting the interlace signals from TV and video into progressive signals for flicker-free display.
Wide Viewing Angles with IPS Panel
The 178° wide viewing angles afforded by the IPS panel technology allow two or more people to view the screen at once with little change in color or contrast.
Light Shielding Hood
The CG Series comes bundled with a shading hood that effectively prevents glare on the monitor's screen caused by ambient lighting. The ColorEdge CG279X's shading hood attaches to the monitor magnetically. This allows the users to attach the hood quickly and easily without needing to connect separate parts.
Ergonomic Stand for Comfort and Convenience
Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments. The stand is also equipped with a quick release that allows you to easily remove the screen from the stand with a single touch.
Multiple Inputs Including USB Type-C Connectivity
The ColorEdge CG279X features USB Type-C connectivity for easily connecting to a notebook PC using a single cable. It is also equipped with a USB Type-B and two USB Type-A ports as well as DVI-D, HDMI, and DisplayPort inputs.
Commitment to Quality
5-Year Manufacturer's Warranty
ColorEdge monitors are backed by a manufacturer's 5-year warranty that covers all components including the LCD panel*. EIZO manufactures its products at its own factories to allow close control over production quality and ensure each monitor is built to last.
*Usage time is limited to 30,000 hours.
Zero Bright Pixels
EIZO guarantees its ColorEdge monitors will be free from bright sub-pixels for six months from the date of purchase.
Brightness and Color Warranty
The brightness and color of the ColorEdge CG279X's warranted for up to 10,000 hours* from the date of purchase.
A brightness level of 120 cd/m2 or more and a color temperature of 5000 - 6500 K are warranted.
Used by Professional Creatives Worldwide
In 2015, EIZO established the ColorEdge Ambassador Program which showcases professional photographers, designers, filmmakers, and other creatives who are committed to inspiring and educating artists around the world. EIZO's Ambassadors – all of them ColorEdge users – are passionately dedicated to their craft and prepare the best equipment for realizing their creative vision.
To see our ColorEdge Ambassadors, click here.
|Size||27" / 68.4 cm|
|Native Resolution||2560 x 1440 (16:9 aspect ratio)|
|Viewable Image Size (H x V)||596.7 x 335.6 mm|
|Pixel Pitch||0.233 x 0.233 mm|
USB Type-C、DisplayPort, HDMI: 1,024 tones (a palette of 65 thousand tones)
DVI: 256 tones (a palette of 65 thousand tones)
USB Type-C、DisplayPort, HDMI: 1.07 billion from a palette of 278 trillion
DVI: 16.77 million from a palette of 278 trillion
|Viewing Angles (H / V, typical)||178°, 178°|
|Brightness (typical)||350 cd/m2|
|Contrast Ratio (typical)||1300:1|
|HDR Gamma||HLG, PQ curve|
|Response Time (typical)||13 ms (Gray-to-gray)|
|Color Gamut (typical)||Adobe RGB: 99%, DCI-P3: 98%|
USB Type-C (DisplayPort Alt Mode, HDCP 1.3), DisplayPort (HDCP 1.3), HDMI (Deep Color, HDCP 1.4), DVI-D (HDCP 1.4)
|Digital Scanning Frequency (H / V)||
USB Type-C, DisplayPort, DVI: 26 - 89 kHz, 23 - 61 Hz
HDMI: 15 - 89 kHz, 23 - 61 Hz
|Upstream||USB 3.1 Gen 1: Type-C (DisplayPort Alt Mode, Power Delivery Source 15 W max.), Type-B|
USB 3.1 Gen 1: Type-A x 2
USB 2.0: Type-A x 2
|Power Requirements||AC 100 - 240 V, 50 / 60 Hz|
|Typical Power Consumption||32 W|
|Maximum Power Consumption||111 W|
|Power Save Mode||1.0 W or less|
|Standby Mode||1.0 W or less|
|Built-in Calibration Sensor||Yes|
|Features & Functions|
|Digital Uniformity Equalizer||Yes|
|Preset Modes||Color Mode (User, BT.2020, BT.709, DCI, PQ_DCI, PQ_BT.2100, HLG_BT.2100, Adobe RGB, sRGB, CAL)|
English, German, French, Spanish, Italian, Swedish, Simplified Chinese,
Traditional, Chinese, Japanese
|Others||Mode Skip, Color Adjustment(Brightness, Temperature, Gamma, Color Gamut, Hue, Saturation, Clipping, Gain, Black Level, 6 Colors, HLG System Gamma), Picture Expansion, Color Format, Input Range, HDMI Settings(Noise Reduction, Film Detection), Signal Format, Compatibility Mode, Power Save, Off Timer, Orientation, OSD Information, Usage Time, Indicator, Input Selection, Input Skip, Key Lock, USB Selection, Safe Area Marker, Safe Area Size, Aspect Marker, Aspect Settings, Border Color, XYZ Format, BT.709 Gamut Warning, Media Emulation, DUE Priority, Luminance Warning, Custom Key, All Reset, I/P Conversion|
|Dimensions (Landscape, W x H x D)||638 x 415.9 - 570.9 x 265 mm|
|Dimensions (Portrait, W x H x D)||390 x 649 - 689 x 265 mm|
|Dimensions (Without Stand, W x H x D)||638 x 390 x 69.4 mm|
|Dimensions (Landscape with Hood, W x H x D)||657.4 x 425.6 - 580.6 x 353.5 mm|
|Net Weight||10.3 kg / 22.7 lbs|
|Net Weight (Without Stand)||6.6 kg / 14.6 lbs|
|Net Weight (With Hood)||11.0 kg / 24.3 lbs|
|Height Adjustment Range||155 mm|
|Tilt||35° Up, 0° Down|
|Hole Spacing (VESA Standard)||100 x 100 mm|
|Operating Temperature||0 - 35 °C|
|Operating Humidity (R.H., non condensing)||20 - 80 %|
|Certifications & Standards (Please contact EIZO for the latest information.)||CB, CE, cTUVus, FCC-B, CAN ICES-3 (B), VCCI-B, RCM, RoHS, WEEE, TUV/GS, TUV/S, PSE, TUV/Ergonomics, TUV/Color Accuracy, EAC|
|Easy Screen-to-Print Color Matching Tool Quick Color Match||Supported|
|Color Mangement Software ColorNavigator 7||Supported|
|Supplied Accessories (May vary by country. Please contact EIZO for details.)|
|Signal Cables||USB Type-C (2 m), DisplayPort (2 m)|
|Others||AC power cord, USB cable, adjustment certificate, setup guide, ScreenCleaner, monitor hood, warranty card|
Five Years 2 5
Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later.
- 2 With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
- 5 If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
