Main Features

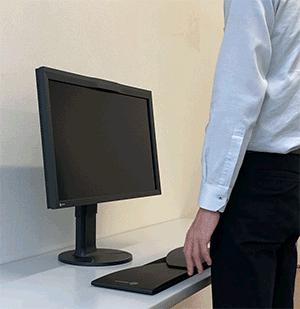

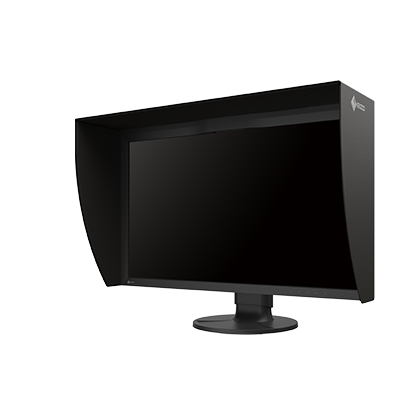

The CH2700 and CH2400 feature a new design and attach to the monitor magnetically. This allows you to attach the hood quickly and easily without needing to connect separate parts.
The CH7, CH6, and CH5 have a sliding plate that allows you to easily attach and remove a calibration sensor.
The inside of the hood is made with anti-glare material.
The CH7 and CH5 can be used in portrait mode as well.
Supported Models
CH2700 Monitor Hood for 27" EIZO Widescreen Monitors
ColorEdge
| CG Series |
27" CG2730 |
|---|---|
| CS Series |
27" CS2730 |
CH2400 Monitor Hood for 24.1" EIZO Widescreen Monitors
ColorEdge
| 4K |
23.8" CG248-4K |
|---|---|
| CG Series |
24.1" CG2420 |
| CS Series |
24.1" CS2420 |
CH7 Monitor Hood for 24.1" EIZO Widescreen Monitors
ColorEdge
| CG Series |
24.1" CG247, CG246 |
|---|---|
| CX Series |
24.1" CX241, CX240 |
| CS Series |
24.1" CS240 |
CH6 Monitor Hood for 23" EIZO Widescreen Monitor
ColorEdge
| CS Series |
23" CS230 |
|---|
CH5 Monitor Hood for 27" EIZO Widescreen Monitors
FlexScan
| Widescreen Format |
27" SX2762W |
|---|
ColorEdge
| CG Series |
27" CG277, CG276, CG275W |
|---|---|
| CX Series |
27" CX271, CX270 |
| CS Series |
27" CS270 |
CH2700
| Weight | 0.66 kg |
|---|---|
| Dimensions (W x H x D) | 657.4 x 387.9 x 172.7 mm |
CH2400
| Weight | 0.67 kg |
|---|---|
| Dimensions (W x H x D) | 572.4 x 354.7 x 172.7 mm |
CH7
| Weight | 0.84 kg |
|---|---|
| Dimensions (W x H x D) |
Landscape: 582.5 x 373 x 225.5 mm Portrait: 406 x 555 x 225.5 mm |
CH6
| Weight | 0.84 kg |
|---|---|
| Dimensions (W x H x D) |
Landscape: 552 x 373 x 225.5 mm Portrait: 361 x 555 x 225.5 mm |
CH5
| Weight | 1.18 kg |
|---|---|
| Dimensions (W x H x D) |
Landscape: 653 x 373 x 225.5 mm Portrait: 410.5 x 635.5 x 225.5 mm |
CH4
| Weight | 0.81 kg |
|---|---|
| Dimensions (W x H x D) | 513 - 571 x 355 x 229 mm |
CH2
| Weight | 0.86 kg |
|---|---|
| Dimensions (W x H x D) | 425.8 - 483.8 x 344.5 x 202.4 mm |
CH2700
Manuals
Languages
| Document | Language | Size | Download |
|---|---|---|---|
| CH2700 User's manual | English Chinese-Simplified Japanese |
982 KB |  |
CH2400
Manuals
Languages
| Document | Language | Size | Download |
|---|---|---|---|
| CH2400 / User's manual | English | 638 KB | |
| CH2400 / User's manual | Chinese-Simplified | 881 KB | |
CH7
Manuals
Languages
| Document | Language | Size | Download |
|---|---|---|---|
| CH5 / CH6 / CH7 User's manual | English | 7.35 MB | |
| CH5 / CH6 / CH7 User's manual | Chinese-Simplified | 7.39 MB | |
CH6
Manuals
Languages
| Document | Language | Size | Download |
|---|---|---|---|
| CH5 / CH6 / CH7 User's manual | English | 7.35 MB | |
| CH5 / CH6 / CH7 User's manual | Chinese-Simplified | 7.39 MB | |
CH5
Manuals
Languages
| Document | Language | Size | Download |
|---|---|---|---|
| CH5 / CH6 / CH7 User's manual | English | 7.35 MB | |
| CH5 / CH6 / CH7 User's manual | Chinese-Simplified | 7.39 MB | |
CH4
Manuals
Languages
| Document | Language | Size | Download |
|---|---|---|---|
| CH4 User's Manual (English) | English | 1.73 MB | |
CH2
Manuals
Languages
| Document | Language | Size | Download |
|---|---|---|---|
| CH2 User's Manual (English) | English | 426 KB | |
