RadiForce MX243W
24.1" Color LCD Monitor
24.1-inch widescreen medical monitor with DICOM Part 14 calibration
for viewing medical images.
  • Contact EIZO
2 items


  • Features
  • Specifications
  • Documents Compatibility
  • Graphics Boards
  • QC Software & Tools Accessories

Comfortable Use, Convenient Connectivity


View More with Widescreen

The monitor has a resolution of 1920 x 1200 pixels and 16:10 aspect ratio. This provides more space for comfortably working with images, tool palettes, and other windows compared to conventional square monitors.

View More with Widescreen



Elegant Cabinet Design

The monitor's cabinet is designed with rounded corners and elegant curves on the back to present a gentle aesthetic and facilitate a comforting environment for patients and medical staff.

Elegant Cabinet Design



Save Work Space with Sleek Cabinet Design

With the new monitor cabinet and stand design, compared to its predecessor, the monitor's width and depth are reduced by 23 mm and 45 mm respectively. This results in a monitor that takes up 24% less space, giving you more room for other tasks.

Save Work Space with Sleek Cabinet Design



Hassle-Free Multi-Monitor Configuration

Using the DisplayPort connection, you can drive several monitors in a daisy chain sequence. This allows you to configure a multi-monitor setup without the complicated hassle of excessive cabling.

A graphics board that supports daisy chain is necessary.

Compatibility between RadiForce monitors using DisplayPort daisy chains

Hassle-Free Multi-Monitor Configuration




Select the Ideal Mode for Modalities

The CAL Switch function allows you to choose various modes for different modalities such as CR, CT, and endoscopy. Using the bundled RadiCS LE software, modes can be set to automatically switch to optimal image viewing conditions.

Select the Ideal Mode for Modalities






High Fidelity Images for Peace of Mind



Display Both Monochrome and Color

Hybrid Gamma PXLThe Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale.

As a result, monochrome images such as CR and DR are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as those used in endoscopy, nuclear medicine, 3D rendering, and fusion imaging are faithfully reproduced corresponding to Gamma 2.2. This improves the efficiency of viewing both monochrome and color images together on one screen.

Display Both Monochrome and Color

Visual Assessment

The Kumamoto Chuo Hospital, Japan, conducted a visual assessment of the Hybrid Gamma PXL function included on the RadiForce monitor. Approximately a 37% improvement was noted when comparing the use of a color monitor with Hybrid Gamma PXL to one without it. In addition, Hybrid Gamma PXL was found to operate equally as well as monochrome monitors with GSDF when displaying monochrome images.


See the White Paper "The Advantages of Hybrid Gamma PXL" [PDF]

Visual Assessment

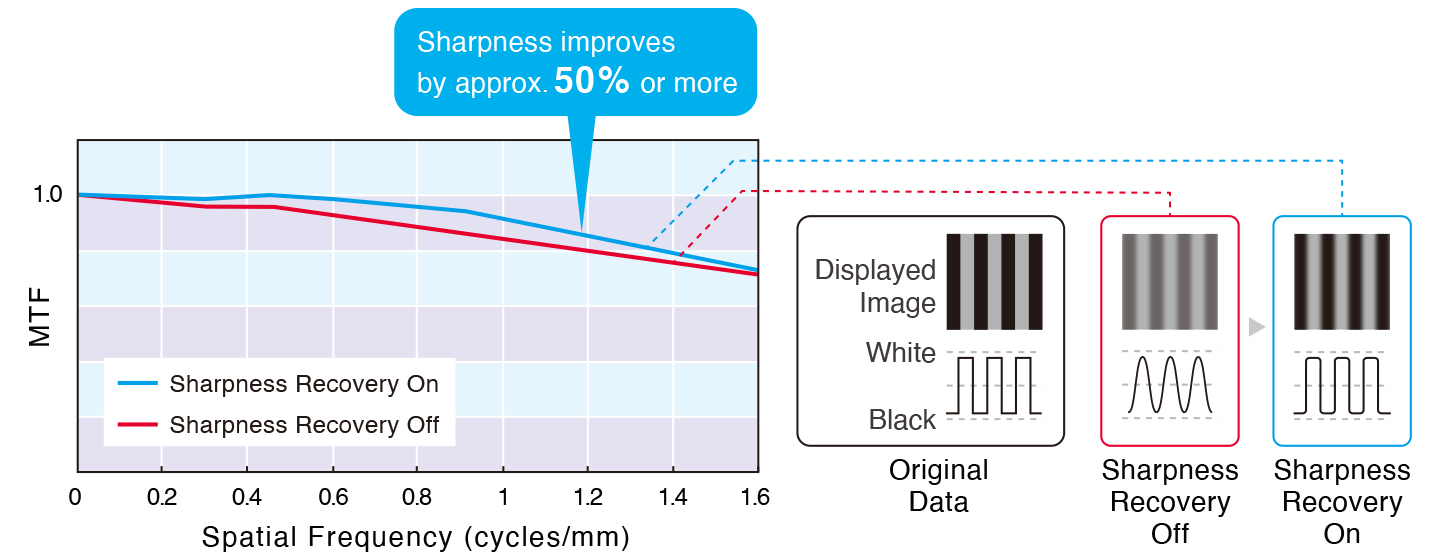

Achieve Clarity True to the Source Data

A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image that is true to the original source data safely on the monitor, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 0.926 cycles/mm) the MTF increases by over 50%.

Achieve Clarity True to the Source Data





Make the Precise Diagnosis

EIZO carefully measures and sets the grayscale at the factory to ensure each monitor is compliant with DICOM Part 14. Furthermore, at startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level and compensates the brightness fluctuations caused by the ambient temperature and the passage of time, allowing medical images to be faithfully reproduced with stable brightness and grayscale.



Make the Precise Diagnosis




Rest Assured with Image Consistency


Maintain the Precision

Perform a simplified calibration compliant with DICOM Part 14 using the bundled RadiCS LE quality control software. RadiCS LE corrects the brightness and grayscale tones of the monitor to maintain image accuracy and consistency over time.

Maintain the Precision



Stay Confident with Stable Brightness

EIZO's confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.



Warranty with Safety and Trust

EIZO and its authorized distributors offer a five-year limited warranty.






Care for the Environment


Conserve to Preserve

The monitor is made of approximately 19% recycled plastic. This cuts down on the amount of plastic waste going into the environment, conserves resources, and promotes reuse of materials for preserving our natural ecosystems.

Conserve to Preserve




Cushioning Environmental Impact

EIZO is moving away from using plastic and styrofoam in its packaging to reduce environmental impact. The monitor is safely packed using molded pulp, which is made from recycled cardboard and newspaper, and cables are wrapped in environmentally friendly pulp sheet instead of plastic bags.

RadiNET Pro Web Hosting




We also implement  following  initiatives:

  • Partial use of halogen-free PCBs (printed circuit board)



Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Supporting a Healthy Life
Starting with our message “Making Each Life Visual”, we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies.

SDGs 03SDGs 08

Environmentally Conscious
Our healthcare products are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system.

SDGs 07SDGs 12
Model Variations MX243W-BK: with stand, black
Panel
Type Color (IPS)
Backlight LED
Size 24.1" (61 cm)
Native Resolution 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V) 518.4 x 324.0 mm
Pixel Pitch (H x V) 0.270 x 0.270 mm
Display Colors 10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors
8-bit: 16.77 million from a palette of 543 billion (13-bit) colors
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 410 cd/m2
Recommended Brightness for Calibration 220 cd/m2
Contrast Ratio (typical) 1350:1
Response Time (typical) 22 ms (black-white-black)
Video Signals
Input Terminals DisplayPort, DVI-D
Output Terminals DisplayPort (daisy chain)
Digital Scanning Frequency (H / V) 31 - 76 kHz / 59 - 61 Hz
USB
Upstream USB 2.0: Type-B
Downstream USB 2.0: Type-A x 2
Power
Power Input AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption 26 W
Maximum Power Consumption 56 W
Power Save Mode 0.6 W or less
Sensor Backlight Sensor
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Hybrid Gamma PXL Yes
Work-and-Flow Point-and-Focus
Preset Modes CAL Switch (DICOM, CAL1, CAL2, Custom, sRGB, Text)
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 7.8 kg
Net Weight (Without Stand) 4.9 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
FDA 510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables DisplayPort (3m)
Others AC power cord (3 m), USB Type-A - USB Type-B cable (3m), Utility Disk (RadiCS LE, PDF instructions for use, PDF installation manual), instructions for use
Warranty 5 Years
Dimension Drawing PDF

Brochures

NEW
RadiForce general
14.4 MB

Download



RadiForce MX243W
1.71 MB

Download



Manuals

Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page*. If you have forgotten your User ID or Password, please send us an e-mail.

* This user registration form is a CRM web marketing tool provided by Tricorn Corporation called KREISEL. By clicking on the form, you will be forwarded to the KREISEL page.

Languages

MX243W Instructions for Use English 625 KB PDF
MX243W Installation Manual English 2.45 MB PDF
MX243W Instructions for Use German 631 KB PDF
MX243W Installation Manual German 2.45 MB PDF
MX243W Instructions for Use French 633 KB PDF
MX243W Installation Manual French 2.45 MB PDF
MX243W Instructions for Use Russian 645 KB PDF
MX243W Installation Manual Russian 2.47 MB PDF
MX243W Instructions for Use Italian 609 KB PDF
MX243W Instructions for Use Czech 611 KB PDF
MX243W Instructions for Use Swedish 606 KB PDF
MX243W Instructions for Use Chinese-Simplified 1.43 MB PDF
MX243W Installation Manual Chinese-Simplified 2.64 MB PDF
MX243W Instructions for Use Chinese-Traditional 942 KB PDF
MX243W Installation Manual Chinese-Traditional 2.56 MB PDF
MX243W Instructions for Use Arabic 641 KB PDF
MX243W Instructions for Use Danish 608 KB PDF
MX243W Instructions for Use Dutch 610 KB PDF
MX243W Instructions for Use Finnish 606 KB PDF
MX243W Instructions for Use Greek 633 KB PDF
MX243W Instructions for Use Korean 711 KB PDF
MX243W Instructions for Use Norwegian 607 KB PDF
MX243W Instructions for Use Polish 615 KB PDF
MX243W Instructions for Use Portuguese 610 KB PDF
MX243W Instructions for Use Spanish 611 KB PDF
MX243W Instructions for Use Turkish 607 KB PDF
MX243W Instructions for Use Estonian 605 KB PDF
MX243W Instructions for Use Latvian 610 KB PDF
MX243W Instructions for Use Lithuanian 609 KB PDF
MX243W Instructions for Use Romanian 611 KB PDF
MX243W Instructions for Use Slovak 615 KB PDF
MX243W Instructions for Use Slovene 604 KB PDF
MX243W Instructions for Use Hungarian 611 KB PDF
MX243W Instructions for Use Bulgarian 626 KB PDF
MX243W Instructions for Use Croatian 606 KB PDF

Compatibility

Date Subject
October 30, 2023 HP Z6 G5 Workstation and FlexScan, RadiForce Compatibility
August 3, 2023 HP Z4 G5 Workstation and FlexScan, RadiForce Compatibility
June 27, 2023 Compatibility between RadiForce monitors using DisplayPort daisy chains
November 1, 2022 HP Z2 SFF G9, Z2 Tower G9, Z2 Mini G9 Workstation and FlexScan, RadiForce Compatibility
Graphics Boards
MED-XN92

- EIZO original driver and bios
- PCI-Express x16
- Daisy chain supported

Graphics Boards
MED-XN72

- EIZO original driver and bios
- PCI-Express x16
- Daisy chain supported

Graphics Boards
MED-XN51LP

- EIZO original driver and bios
- PCI-Express x16
- Daisy chain supported

Graphics Boards
MED-XN31LP

- EIZO original driver and bios
- PCI-Express x16
- Daisy chain supported

Quality Control Software & Tools
RadiCS UX2

- Quality Control Software
- UX2 Calibration Sensor bundled

Quality Control Software & Tools
UX2 Sensor

- Quality Control External Calibration Sensor

Comfort Light for Reading Rooms
RadiLight

- Comfort Light for Reading Rooms

Arms
LA-011-W

35° up tilt and 180° swivel wide adjustment range

Mounting Bracket
VESAMP100

VESA mounting plate for attaching an IP decoding box to certain FlexScan monitors using VOP-01

Monitor Cleaning Kit
ScreenCleaner

- Keep your screen free from dust and fingerprints
- Includes pump spray and cloth
