Unique SQFHD (1920 x 1920) Resolution for More Efficient Viewing of Data
The EV2730Q is wide all around. The unique 1920 x 1920 resolution provides users with 78% more pixels compared with a standard wide screen 1920 x 1080 monitor. The extended vertical space is convenient for displaying large amounts of information in long windows, reducing the need for excess scrolling and providing a more efficient view of data.
Desktop Screen Examples with 1920 x 1920 Resolution

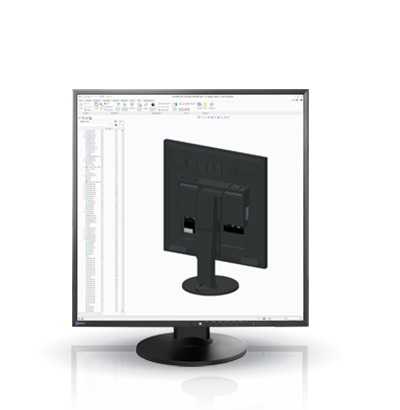

3D CAD designers can view more of their item lists with the extended vertical space. They can also use the entire screen to enlarge 3D objects and check vital details whereas a standard wide monitor leaves blank space around the object.

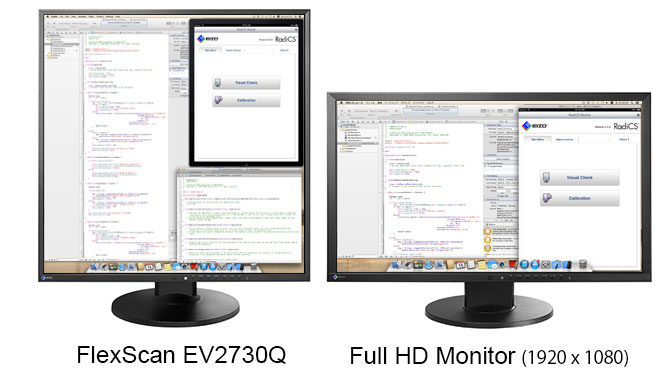

With the extended vertical space, programmers can see all their work at once. This helps them work more efficiently and reduces the need for excess scrolling.

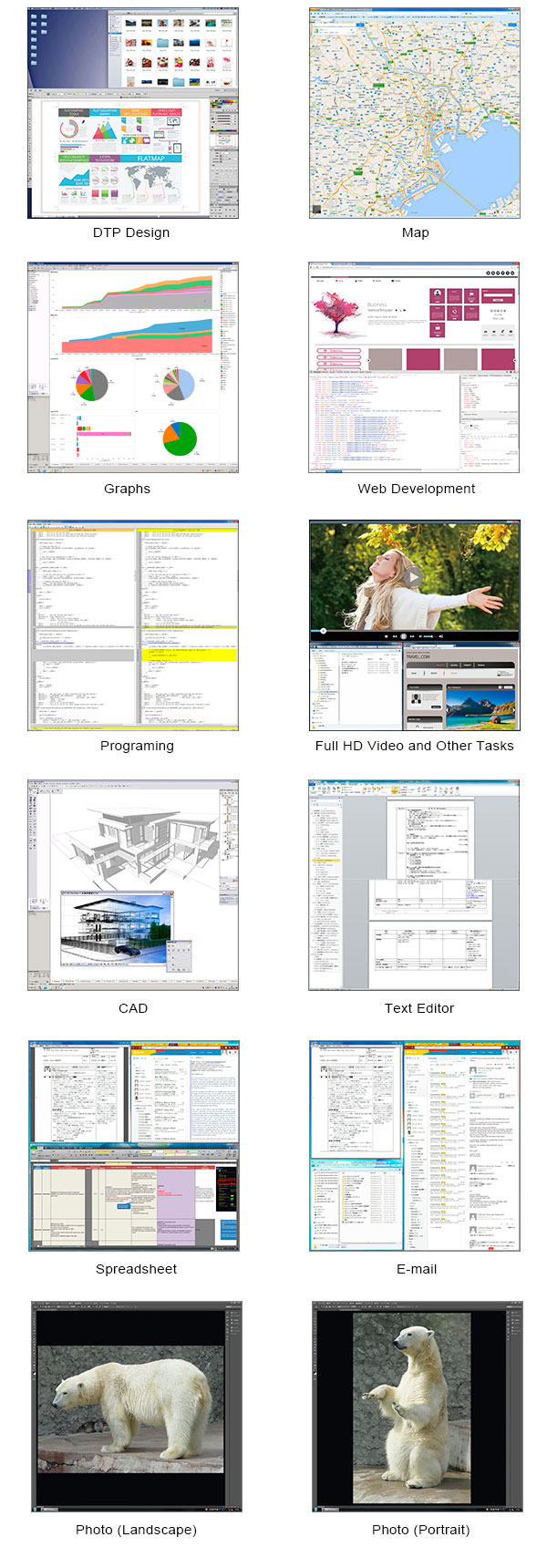

Other Examples with Website Development, Office Tools, or Photo
- Dual link DVI x 1*
- DisplayPort x 1
- 2-port USB hub
- 3.5mm stereo jack audio input and output
* 60 Hz (1920 x 1920) with a Dual-Link DVI cable. 30 Hz with a Single-Link DVI cable.
Ergonomics – Visual Comfort to Increase Your Productivity
- IPS panel for a clear view from all angles
- Best positioning with flexible stand
- Tireless eyes with flicker-free image and reduced blue light
Stefan Hartter, Head of Calibration and Maintenance at TÜV Rheinland Japan, commented, "We have measured EIZO FlexScan EV Series monitors with different brightness levels and display modes (blue-light strength, wavelength, etc.). We confirmed that the FlexScan EV Series is truly flicker-free and provides eye-pleasing images even in low-brightness environments."
- Wide dimming range – adjustable to just 1% of maximum brightness
Environment – Energy-Saving Features to Reduce Your Eco Footprint
- LED Backlights – Less Power, Longer Life
- Presence sensor detects when you leave your desk and automatically switches to power save mode. When you return, it powers the monitor on again.
Economy – Lower Total Cost of Ownership
- 5-Year Warranty
A manufacturer’s 5-year warranty covers all components including the LCD panel to ensure a long service life. This warranty is 2-years or 67% longer than the standard 3-year warranty of most monitor brands for significantly lower running costs.
EIZO guarantees this product will be free from bright sub-pixels for six months from purchase date for purchases made on September 1, 2015 or later.
EV2730Q-GY: With FlexStand, Gray
EV2730Q-BK: With FlexStand, Black
EV2730Q-FGY: Without Stand, Gray
EV2730Q-FBK: Without Stand, Black
Note: The FlexStand can be removed
|Cabinet Color||Gray, Black|
|Size||26.5" / 67 cm|
|Native Resolution||1920 x 1920 (1:1 aspect ratio)|
|Viewable Image Size (H x V)||475.7 x 475.7 mm|
|Pixel Pitch||0.248 x 0.248 mm|
|Viewing Angles (H / V, typical)||178° / 178°|
|Brightness (typical)||300 cd/m2|
|Contrast Ratio (typical)||1000:1|
|Response Time (typical)||5 ms (Gray-to-gray)|
|Color Gamut (typical)||sRGB|
|Input Terminals||DisplayPort (HDCP 1.3), DVI-D (HDCP 1.4)|
|Digital Scanning Frequency (H / V)||31 - 127 kHz / 59 - 61 Hz|
|Upstream||USB 2.0: Type-B|
USB 2.0: Type-A x 2
1.0 W +1.0 W
|Input Terminals||Stereo mini jack, DisplayPort|
|Output Terminals||Headphones (Stereo mini jack)|
|Power Requirements||AC 100 -240 V, 50 / 60 Hz|
|Typical Power Consumption||
|Maximum Power Consumption||64 W|
|Power Save Mode||0.5 W or less|
|Features & Functions|
FineContrast (User1, User2, sRGB, Paper, Movie)
|OSD Languages||English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese|
|Dimensions (Landscape, W x H x D)||497 x 512.5 - 613.5 x 245 mm|
|Dimensions (Without Stand, W x H x D)||
497 x 501.5 x 56 mm
|Net Weight||7.1 kg|
|Net Weight (Without Stand)||4.2 kg|
|Height Adjustment Range||101 mm|
|Tilt||35° Up, 5° Down|
|Hole Spacing (VESA Standard)||100 x 100 mm|
|Operating Temperature||5 - 35 °C|
|Operating Humidity (R.H., non condensing)||20 - 80 %|
|Certifications & Standards (Please contact EIZO for the latest information.)||
TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, RoHS, WEEE, China RoHS, CCC, EAC
|Supplied Accessories (May vary by country. Please contact EIZO for details.)|
|Signal Cables||DisplayPort (2 m), Dual Link DVI-D (2 m)|
|Others||AC power cord (2 m), Screw for VESA mount x4 (EV2730Q-F), EIZO LCD Utility Disk (PDF user's manual, ScreenManager Pro for LCD [DDC/CI], EIZO ScreenSlicer software), setup guide|
Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later.
- 2 With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
- 5 If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
