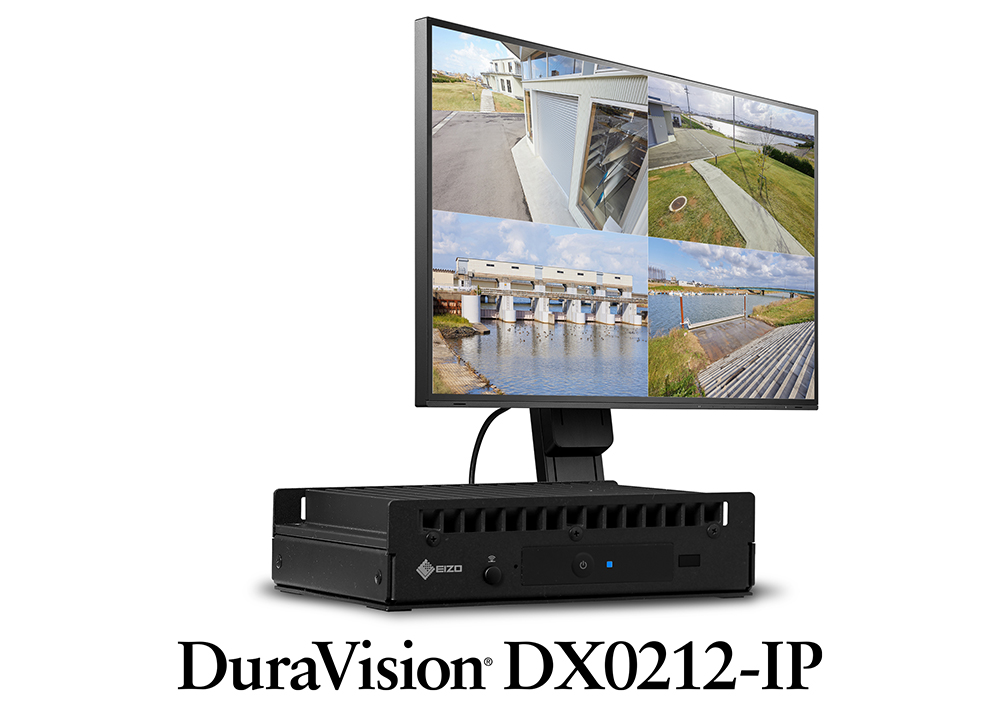

DuraVision DX0212-IP
IP Decoding Box
The DuraVision DX0212-IP connects directly to an IP camera or switch with just a LAN cable to immediately begin streaming video. It does not require a PC to operate and is ideal for video walls and multi-monitor environment.
  • Contact EIZO
2 items


  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

PC-Less Live Streaming Directly from IP Cameras

The DuraVision DX0212-IP connects directly to an IP camera or switch and streams video to a connected monitor. It does not require a PC, software, or other hardware to operate, greatly simplifying installation and saving on time and labor costs. This also eliminates several potential points of failure and addresses security concerns typical of a conventional setup by heavily reducing the amount of equipment needed to manage sensitive visual data.

The box is able to stream video without a decentralized recording system, such as edge recording or cloud archiving, providing a solution for environments that do not record and store images.







4K Output to Dual Monitors

The DuraVision DX0212-IP is equipped with two HDMI® outputs that support 4K UHD resolution (3840 x 2160) on up to two monitors. This enables users to view dual monitors side-by-side in an extended display, or flexibly combine different resolutions, such as Full HD and 4K, for an optimal multi-monitor viewing environment.

Integrated Solution
Extended Display Multi-Monitor Display (mirroring)






Custom Event Response with Alert-to-Action

The web API supports custom integration with local security systems and devices to allow communication with and response to alerts over the network. When an event occurs and an alert is sent from IP cameras, access control,  hazard detection, VMS, or other systems, EIZO's IP decoding solution responds with a preassigned action, such as layout adjustment, message display, audio activation, camera adjustment, masking, and more. Implementing an intelligent visual communication system into the workflow ensures operators have the most pertinent information at the right time to respond to situations quickly. EIZO works closely with security system providers and end users to custom tailor Alert-to-Action to streamline individual environments.


Event Response for Every Environment

An efficiently running facility relies heavily on staff and security personnel having the right information at the right time. See how Alert-to-Action helps facilitate streamlined operations and  maintain a safe environment for hospitals, public transportation hubs, and more.

Learn more








IP Camera Support

Interoperable with Over 300 Cameras

DuraVision IP decoding solutions support cameras with ONVIF Profile S, Axis VAPIX, Panasonic, and i-PRO protocols for flexible installation and ensured interoperability with a wide range of products. In addition, a direct connection through RTSP is available (Direct URI). ONVIF

Camera compatibility details

support cameras

Register up to 48 Cameras

Register up to 48 IP cameras, including 4K cameras, through the intuitive web UI. Cameras can be discovered automatically or registered manually, and individual settings are easily managed centrally through the web UI. Camera_Registration_List.jpg
Camera Registration List (Web UI)






VMS Integration

EIZO works with security & surveillance leaders to ensure technical compatibility and streamlined functionality with various video management systems/software (VMS). By fully integrating co-developed plugins into these VMS frameworks, users can easily setup, manage, and command EIZO's IP decoding solutions from a centralized platform.





Read More






Intuitive Operation and Functionality

Powerful Video Decoding Performance

DuraVision IP decoding solutions can decode H.265 (HEVC), as well as H.264 and MJPEG codecs, displaying them in real time for assessing any situation quickly. In addition, the decoding technology ensures a high fps (frames-per-second) for displayed content, even when streaming high-resolution video.

Adjustable Screen Layout

With the user-friendly web UI, you can easily adjust the layout of the video streams with multiple default options, displaying up to 32 screens. In addition, flexible arrangement of the screens in a custom layout allows you to fulfill individual viewing needs. With custom layout you can merge individual windows to focus on specific areas, or split them to see more on a single screen. Video feeds can be viewed in the original aspect ratio or stretched to fill the custom-created space.

Choose from 7 default layouts.
Adjustable Screen Layout

Create a custom layout.



Customize Visual Settings and Functions

Operators can choose from numerous visual functions to maintain high situational awareness according to the needs of the viewing environment.

Sequential Screen Lock

When using the sequential image display setting, users can select an image to remain static, event through page changes.

Sequential Screen Lock
Example of locked image (red frame)

Privacy Mask

Users can assign static privacy masks to hide sensitive information on the live video stream without altering the source stream.

Privacy Mask video

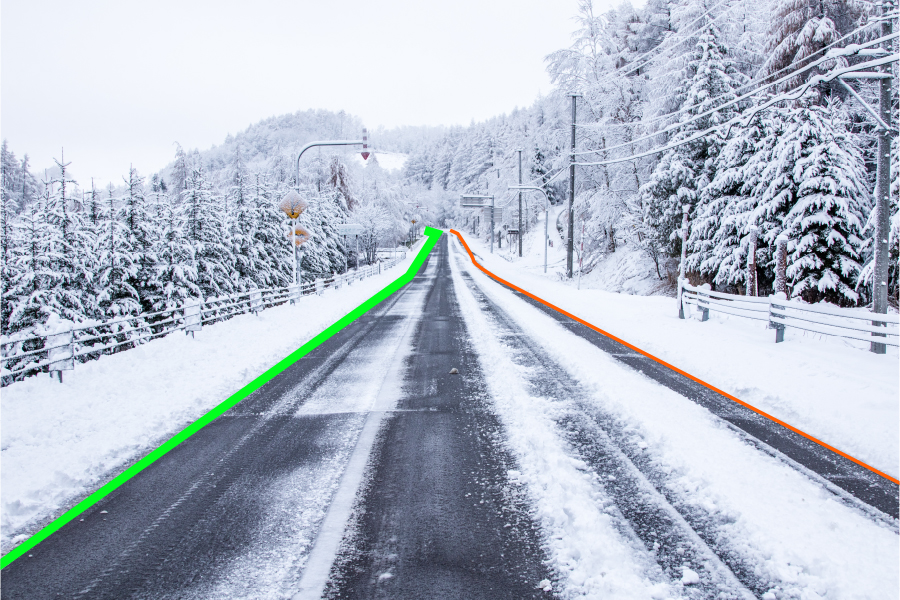

Virtual Line

Virtual lines and shapes can be applied to the screen to track barriers and designated zones. Up to 10 objects can be applied and do not alter the source stream.

Virtual Line

Camera PTZ Control

Operators can easily control individual camera PTZ settings using the buttons displayed over the selected video stream.


Camera PTZ Control






Enterprise License for Advanced Operation

Users can subscribe to an optional Enterprise License which includes advanced features, such as those listed below, to meet specific environment or application requirements. Contact EIZO for more information about licensing.

Enterprise License Additional Features

✔ Playback recorded video
✔ View remote monitor live streams via the web UI
✔ Live image menu customization
✔ Screen rotation support
✔ VMS failover
✔ SRT, LDAP, AXIS SRTP, protocols

Learn more about the Enterprise License.






Security and Reliability

Secure Network Communication

DuraVision IP decoding solutions support HTTPS protocol to ensure authenticated access for secure communication over a network.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (https://www.openssl.org/)
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).

SNMP (Simple Network Management Protocol)

SNMP is a communication protocol for monitoring and controlling devices connected to a network. It consists of an SNMP manager and SNMP agent. The IP decoding box acts as an SNMP agent to return device information in response to a request sent by the SNMP manager, and to notify a change in status when a specified event occurs. The DuraVision DX0212-IP supports SNMP v1 and v2c.

FanlessFanless Solution with Low Heat Output

The DuraVision DX0212-IP provides noiseless, fanless operation while maintaining low heat output for long-term reliability. The top of the box is designed so that heat escapes efficiently, keeping it cool even during long periods of operation.

24-Hour Use, 2-Year Warranty

24-Hour Use, 2-Year Warranty

The product is built for 24-hour use and is backed by a two-year manufacturer’s warranty for long-term reliability.








Flexible Installation

Minimal Footprint for Mounted Solutions

The DuraVision DX0212-IP can be easily mounted to the back of any VESA-supported monitor using the VOP-01 mounting plate. The box's slim, compact design allows it to fit perfectly behind a monitor that is mounted on the wall or ceiling, occupying minimal space in the installation area. Direct attachment to the monitor also helps to keep cabling controlled to the designated space, reducing overall clutter.

Some monitors require the VESAMP100 mounting plate in order to attach the VOP-01.

Minimal Footprint for Mounted Solutions
DX0212-IP with VOP-01 mounting plate. DX0212-IP attached directly to the monitor and wall mount.

Clean Workspace for Desktop Solutions

The DuraVision DX0212-IP can be attached directly to many of EIZO's desktop monitors using the PCSK-03 or PCSK-03R monitor stand bracket. This provides a cleaner workspace when using a desktop solution. The attachment does not interfere with the balance of the monitor so it stays firmly in place on your desk.

Clean Workspace for Desktop Solutions
  DX0212-IP attached to the monitor's stand.

Power Delivery without AC AdapterPower Delivery without AC Adapter

The DuraVision DX0212-IP is equipped with a PoE+ hub so it stays powered without needing an AC adapter and cable, keeping the installation area clear. An optional AC adapter is available for environments where PoE+ is not supported.




Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Industry, Innovation, and Infrastructure
DuraVision offers a range of visual solutions for facilities that are indispensable to people's daily lives such as hospitals, businesses, airports, factories, public transportation hubs, and many more. We support the uninterrupted continuation of security, industrial, and other activities with robust product build, manufacturer's warranty, and after-sales services.

SDGs 09

Environmentally Friendly
Our products for industrial environments are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed for creators in every industry. We also implement a responsible after-service recycling system.

SDGs 07SDGs 12






Solution Lineup

EIZO's lineup of IP decoding solutions include 23 and 27-inch monitors, as well as an external box solution for connecting to multiple monitors or a video wall.

DX0212-IP FDF2712W-IP FDF2312W-IP" FDF4627W-IP
IP Decoding Box
DX0212-IP
IP Decoding Monitor
FDF2712W-IP
27.0" / 1920 x 1080
IP Decoding Monitor
FDF2312W-IP
23.0" / 1920 x 1080
IP Decoding Monitor
FDF4627W-IP
46.0" / 1920 x 1080






Decoding Processor
Simultaneous Display Channels 32 (maximum)
Registrable Cameras 48 (maximum)
Camera Protocol ONVIF Profile S, AXIS VAPIX, Panasonic / i-PRO, RTSP
Video Codec H.26510, H.264, MJPEG13
Streaming Protocol RTP (H.265, H.264, MJPEG, MPEG2-TS), SRT14 (H.265, H.264), SRTP15 (H.265, H.264), UDP (MPEG2-TS)
Decoding Performance (camera resolution / framerate) *Bitrate 4096 kbps 1-screen layout: 3840 x 2160 / 30 fps, 1920 x 1080 / 60 fps
4-screen layout: 3840 x 2160 / 20 fps, 1920 x 1080 / 60 fps
16-screen layout: 1920 x 1080 / 20 fps
32-screen layout: 1280 x 720 / 15 fps
Bitrate 8192 kbps (maximum)
Video Signals
Output Terminals HDMI x 2
Output Resolution 3840 x 2160 (maximum) / 60 Hz
Network
Wired LAN RJ-45 (1000BASE-T, 100BASE-TX)
USB
Host USB 2.0: Type-A
Power
Input Voltage PoE+12 (IEEE802.3at Type2): 42.5 V - 57 V (48 V typ.)
AC Adapter (option): DC12 V
Maximum Power Consumption PoE+: 25.5 W
AC Adapter (option): 21.5 W
Features & Functions
Communication Protocol DHCP, DNS, HTTP, HTTPS, LDAP15, LDAPS15, NTP, RTP, RTSP, SNMP, SRT14, SRTP15, IEEE802.1X15
Others System software version 6.x
Physical Specifications
Dimensions (W x H x D) 165 x 44.2 x 130 mm
Net Weight 770 g
Environmental Requirements
Operating Temperature 0 - 40°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, UKCA, cTUVus, FCC-A, CAN ICES-3 (A), VCCI-A, RCM, RoHS, WEEE, BIS, India RoHS
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables HDMI (0.5 m)
Others Setup manual
Warranty 2 Years (24-hour use)
Dimension Drawing PDF
  1. 10  Please check IP camera compatibility on our EIZO Web site.
  2. 12  Power can only be received from 2-Event Classification-enabled network switches.
  3. 13  MJPEG is only available with the ONVIF Profile S protocol.
  4. 14  Enterprise license and extension license are required.
  5. 15  Enterprise license is required.

Brochures

NEW
Security & Surveillance Visual Solutions
9.43 MB

Download



Manuals

Languages

FDF2712W-IP / FDF2312W-IP / DX0212-IP User's manual English 11 MB PDF
FDF2712W-IP / FDF2312W-IP / DX0212-IP User's manual German 10.5 MB PDF
DX0212-IP Setup manual English 2.09 MB PDF
DX0212-IP Setup manual Chinese-Simplified 2.59 MB PDF
DX0212-IP Setup manual French 2.13 MB PDF
DX0212-IP Setup manual German 2.11 MB PDF
DX0212-IP Setup manual Russian 2.11 MB PDF
EIZO IP Decoder Utility User's manual English 769 KB PDF

Compatibility

Date Subject
March 23, 2023 IP Camera and DuraVision DX0212-IP, FDF2712W-IP, FDF2312W-IP Compatibility

Technical Information

February 24, 2023 IP Monitor Functional Comparison between Models [PDF]

The available functions of IP monitors differ depending on the model. This document explains the available functions.

Mounting Bracket
PCSK-03

Dedicated bracket for attaching a client to the back of the FlexScan Frameless models

Mounting Bracket
PCSK-03R

Dedicated bracket for attaching a client to the back of the FlexScan Frameless models

Mounting Bracket
VOP-01

VESA offset plate for attaching an IP decoding box directly to a monitor

Mounting Bracket
VESAMP100

VESA mounting plate for attaching an IP decoding box to certain FlexScan monitors using VOP-01

Cable
DVAC-01

An optional AC adapter for to be used in systems without PoE+ support.
