Evolve Your Image Reading
Seamless Viewing, Hassle-Free Use
Environmental Initiatives
High Fidelity Images for Peace of Mind
Make the Precise Diagnosis
EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14 standard. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.
Simple Calibration with Built-In Sensor
With the Integrated Front Sensor (IFS) built into the front bezel and the bundled monitor control software RadiCS LE, you can easily calibrate to DICOM Part 14 standard without having to mount, run, and remove an external sensor.
Energy-Efficient Calibration with WS Power Off
Mammography QC Standards Compliance
|
EIZO's easy-to-use quality control software and calibration sensor RadiCS UX2 (sold separately) performs precise calibration conforming to DICOM Part 14 and enables high-grade quality control (QC), complying with ACR Practice Guidelines and other QC standards for digital mammography monitors. Learn more about QC standards for digital mammography monitors and RadiCS |
 |
5 Megapixels for High-Definition Display
When a monitor displays data that exceeds its maximum resolution, the data is downsampled, resulting in a loss in image quality. The RX570 displays 5 megapixels (2048 x 2560 pixels) with a pixel pitch of 0.165 mm, ensuring highly detailed mammography images are shown more clearly compared to 2 or 3 megapixel monitors.
Optimum Breast Screening Monitor
|
The monitor has obtained FDA 510(k) clearance by the U.S. Food and Drug Administration for breast tomosynthesis and mammography. This ensures that the monitor is capable of displaying detailed breast screening images where high performance is essential. |
|

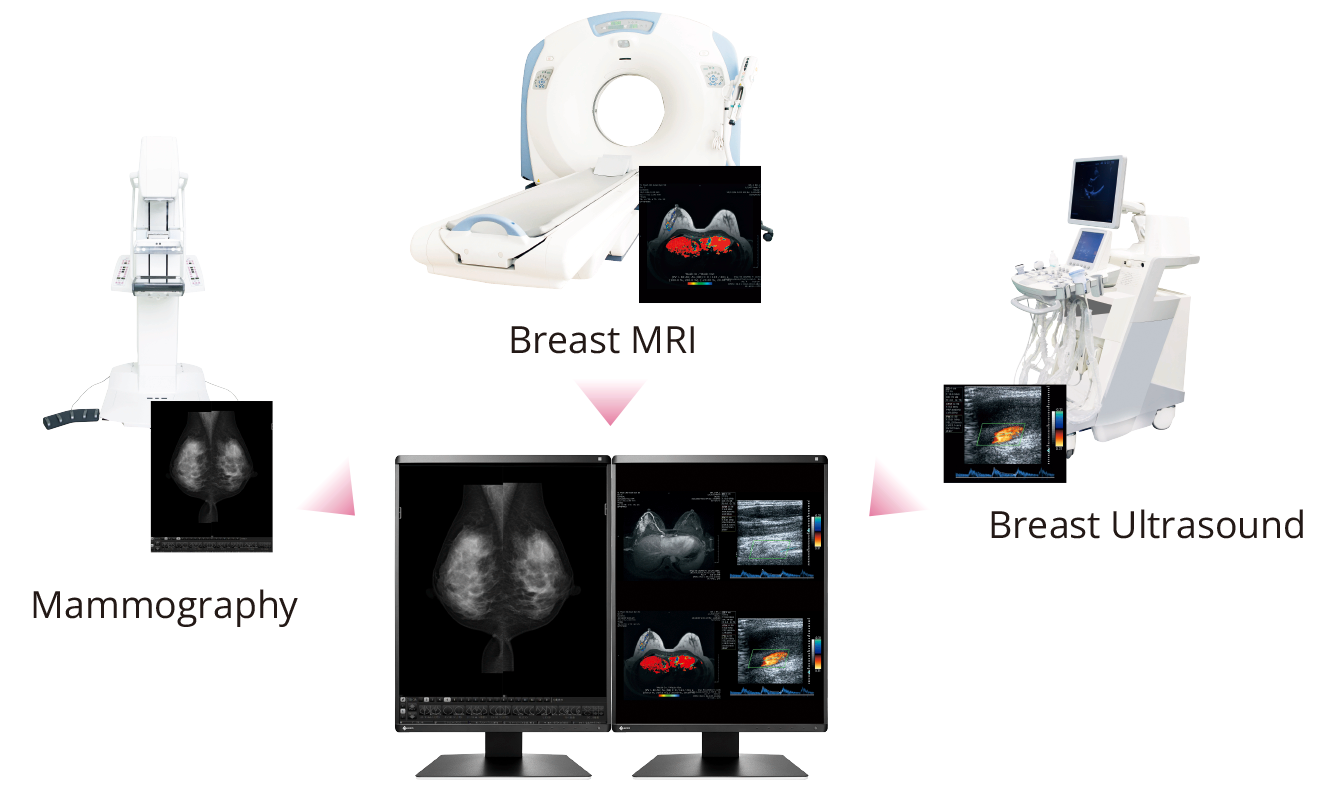

Full Color Support for Ultrasound, Breast CT and MRI
The RX570, while a color monitor, achieves an impressive brightness of 1200 cd/m2. This allows it to display high-definition monochrome breast tomosynthesis and mammography images conveniently alongside color images from breast MRI, CT, and ultrasound, all on one screen.

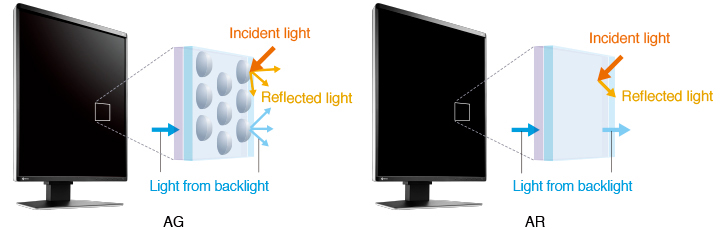

Variations for Specific User Needs
EIZO offers anti-glare (AG) and anti-reflection (AR) screen variations to suit user environments. AG treatment is ideal for exceptionally bright environments and drastically reduces glare from ambient lighting. AR treatment is ideal for moderately-lit environments to reduce mild screen glare while maintaining crisp text and images.
Evolve Your Image Reading
Hybrid Display of Monochrome and Color
The Hybrid Gamma PXL function automatically distinguishes between monochrome and color images, optimizing grayscale for each pixel. This allows for the simultaneous display of monochrome mammography images according to the DICOM standard (GSDF) and color images from breast MRI, CT, and ultrasound at Gamma 2.2 on the same screen, enhancing reading efficiency.
Visual AssessmentKumamoto Chuo Hospital in Japan conducted a visual assessment of a RadiForce monitor equipped with the Hybrid Gamma PXL function. They observed an approximate 37% improvement when using a color monitor with Hybrid Gamma PXL compared to one without. In addition, Hybrid Gamma PXL performed as effectively as monochrome monitors with GSDF when displaying monochrome images. See the White Paper "The Advantages of Hybrid Gamma PXL" [PDF] |
 |
Achieve Clarity True to the Source Data
A medical monitor must achieve high brightness to meet performance standards. However, to achieve this in an LCD panel, the pixel aperture ratio has to be increased, resulting in a decline in sharpness. EIZO's unique Sharpness Recovery technology restores this loss in sharpness (MTF), ensuring images displayed on the monitor remain true to the original source data, even at high brightness levels.
MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 1.515 cycles/mm) the MTF increases by approximately 45%.
Boost Images for Easy Viewing
The Instant Backlight Booster function allows users to maintain the monitor at the recommended 500 cd/m2 for standard tasks and, with a single hotkey, instantly boost brightness to the maximum level of 1200 cd/m2 for a seamless user workflow. The brightness automatically reverts to its original level after a set period, ensuring optimal performance for critical image viewing sessions while minimizing strain on the backlight over time.
DICOM Part 14 is not supported while Instant Backlight Booster is on.

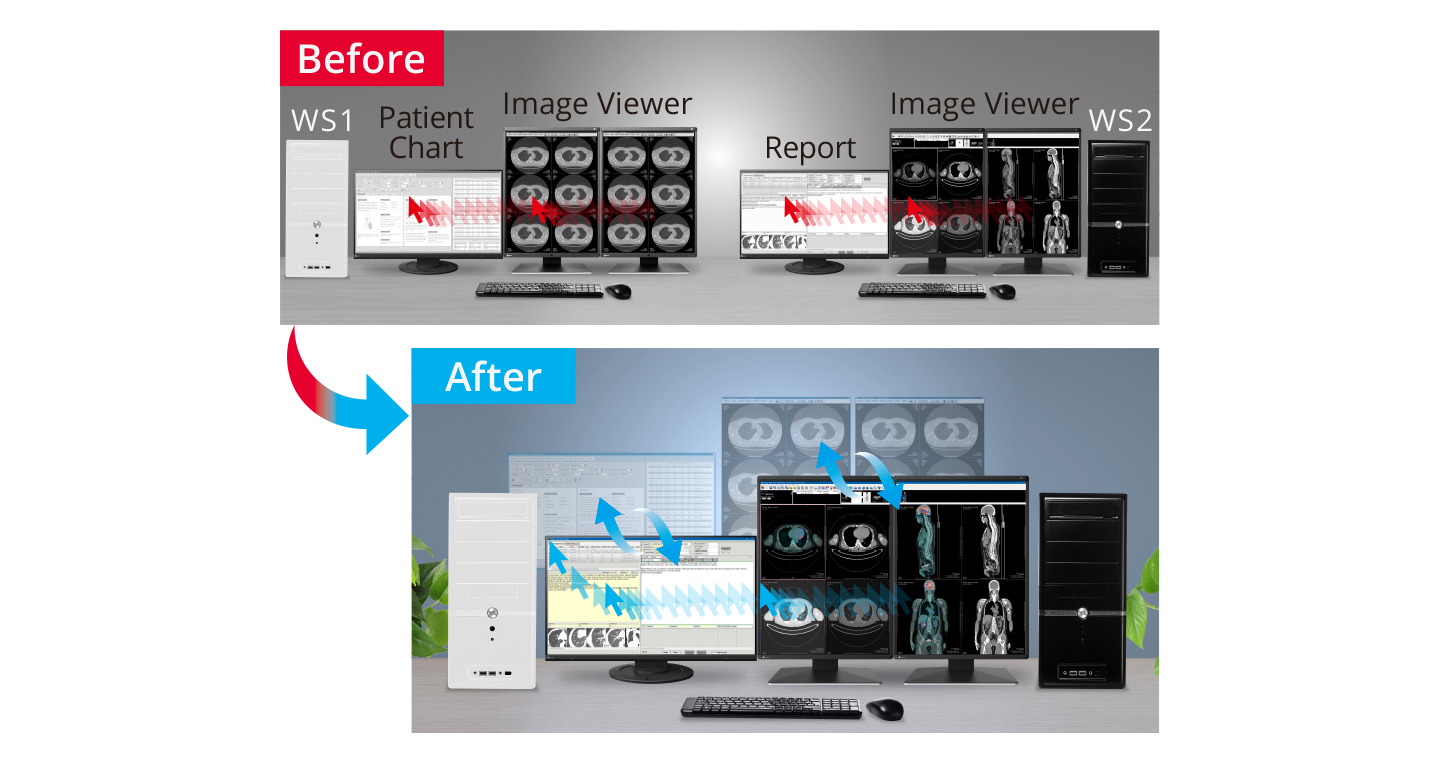

Barrier-Free Workstyle
Modern medical imaging workflows require multiple workstations and monitors, which can be complex and impact productivity. To promote a barrier-free workstyle, the monitor features Switch-and-Go function, allowing users to operate two workstations with a single keyboard and mouse. This enables seamless cursor movement across screens, reducing the need for multiple peripheral devices and enhancing overall workflow efficiency.
Additional signal cables and USB cables required.
Seamless Viewing, Hassle-Free Use

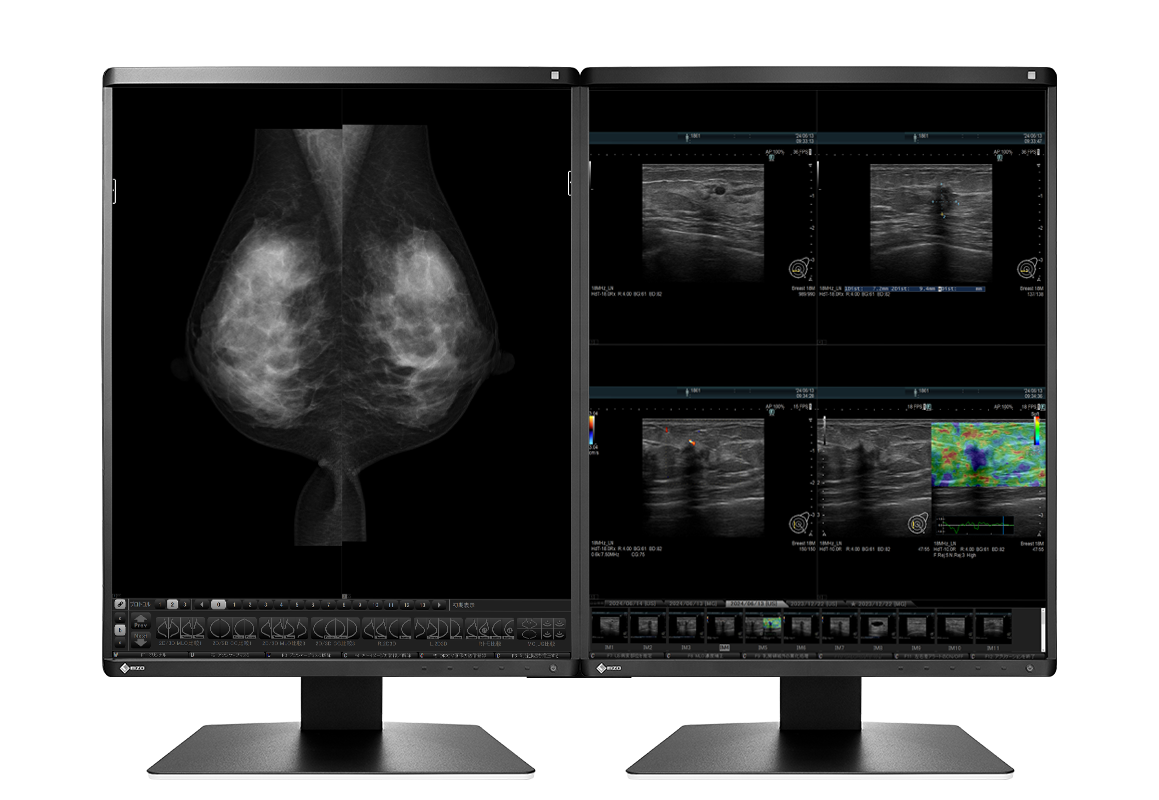

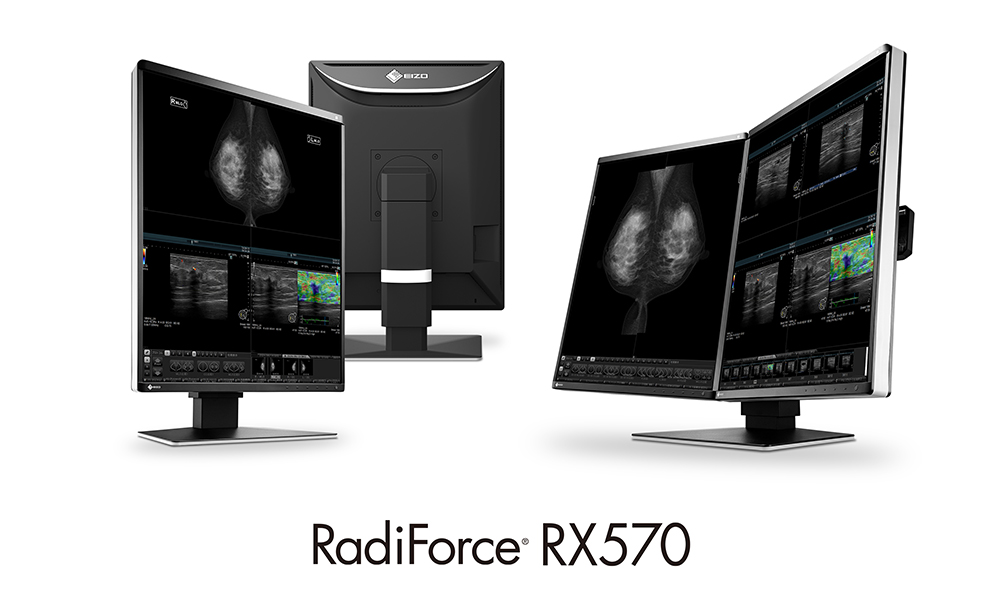

The RX570 MammoDuo integrates two RX570 monitors side-by-side with a dedicated stand.

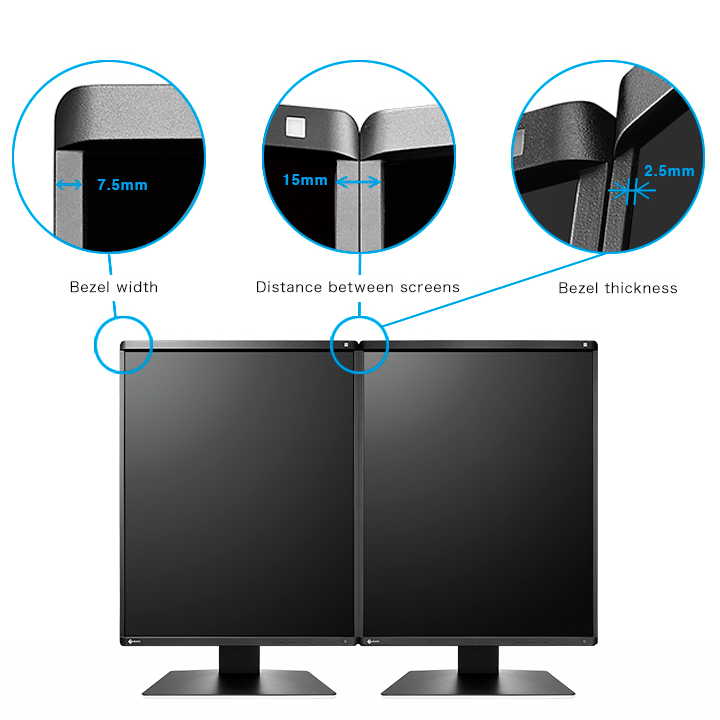

Distraction-Free Viewing
With a 7.5 mm bezel, the total distance between two side-by-side screens is only 15 mm. Furthermore the screen is almost completely flat with the bezel sitting only 2.5 mm above the screen.
Clean and Sophisticated
The black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides of the monitor presents a fresh, clean aesthetic. Rounded corners and elegant curves on the back present a gentle aesthetic and facilitate a comforting environment for patients and medical staff.

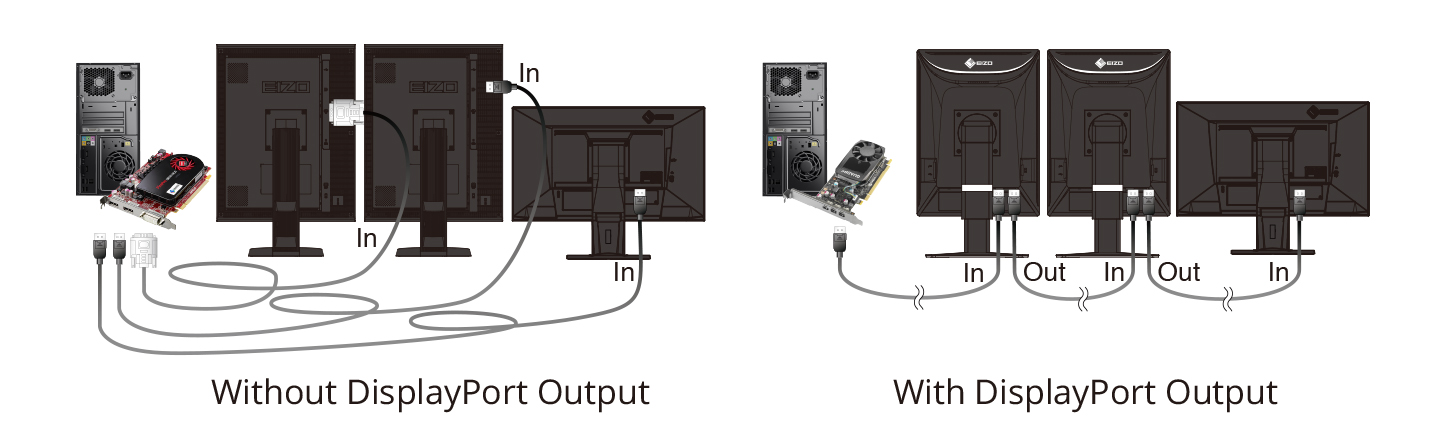

Hassle-Free Multi-Monitor Configuration
The monitor is equipped with DisplayPortTM input and output terminals. Using the output terminal allows you to easily configure several monitors in a daisy chain sequence without the hassle of excessive cabling.
A graphics board that supports daisy chain is necessary.
Additional signal cables may be required.
Compatibility between RadiForce monitors using DisplayPort daisy chains
Warranty with Safety and Trust
EIZO and its authorized distributors offer a five-year full warranty.
Environmental Initiatives
Eco-Conscious Packaging
EIZO is committed to reducing its environmental impact by transitioning away from plastic and other environmentally unfriendly materials in product packaging. Single RX570 monitors are packaged using molded pulp made from recycled cardboard and newspaper, and dual monitors are packaged in cardboard. The monitor's cables are wrapped in paper instead of plastic bags.
EIZO also uses halogen-free PCBs (printed circuit board).
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
 |
|
Environmentally Conscious Product Development EIZO's healthcare products combine high performance and advanced functionality to meet the demands of medical environments, while also incorporating environmentally conscious features such as the use of recycled materials and low-impact components. They are optimized for energy efficiency, contributing to lower greenhouse gas (GHG) emissions. EIZO also collects and recycles used products to further minimize environmental impact. We strive to promote efficient and circular resource use across every stage of the product lifecycle - from parts and materials procurement to manufacturing, transportation, user experience, and end-of-life disposal. All production sites at EIZO’s headquarters in Japan operate on 100% renewable energy. |
   |
|
|
Quality and Safety in Healthcare In today's medical field, efforts are underway to deliver care tailored to each individual. Under our message "Making Each Life Visual," EIZO offers healthcare solutions that collect, connect, and utilize vast amounts of medical information. These solutions help build optimal imaging environments, supporting greater efficiency, accuracy, and safety in diagnosis and treatment. |
  |
| Model Variations |
RX570-BK-MD: Anti-Glare coating, two screens, with dual stand, black
RX570-ARBK-MD: Anti-Reflection coating, two screens, with dual stand, black RX570-BK: Anti-Glare coating, one screen, with stand, black RX570-ARBK: Anti-Reflection coating, one screen, with stand, black |
|---|---|
| Panel | |
| Type | Color (IPS) |
| Backlight | LED |
| Size | 21.3" (54.1 cm) |
| Native Resolution | 2048 x 2560 (4:5 aspect ratio) |
| Viewable Image Size (H x V) | 337.9 x 422.4 mm |
| Pixel Pitch (H x V) | 0.165 x 0.165 mm |
| Display Colors |
10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors
8-bit: 16.77 million from a palette of 543 billion (13-bit) colors |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 1200 cd/m2 |
| Recommended Brightness for Calibration | 500 cd/m2 |
| Contrast Ratio (typical) | 2200:1 |
| Response Time (typical) | 12.5 ms (black-white-black, half cycle) |
| Video Signals | |
| Input Terminals | DisplayPort x 2, DVI-D (dual link) |
| Output Terminals | DisplayPort (daisy chain) |
| Digital Scanning Frequency (H / V) | 31 - 135 kHz / 23 - 61 Hz |
| USB | |
| Upstream | USB 2.0: Type-B x 2 |
| Downstream | USB 2.0: Type-A x 2 |
| Dedicated Charging Port | USB Type-C (Power Supply 15 W max.) |
| Power | |
| Power Input | AC 100 - 240 V: 50 / 60 Hz |
| Typical Power Consumption | 34 W |
| Maximum Power Consumption | 115 W |
| Power Save Mode | 1 W or less |
| Sensor | Backlight Sensor, Integrated Front Sensor, Ambient Light Sensor |
| Features & Functions | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Hybrid Gamma PXL | Yes |
| Work-and-Flow | Hide-and-Seek, Switch-and-Go, Point-and-Focus, Instant Backlight Booster |
| Preset Modes | DICOM, CAL1, CAL2, Custom, sRGB, Text |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Physical Specifications | |
| Net Weight |
RX570-MD, RX570-AR-MD:
16.3 kg RX570, RX570-AR: 7.6 kg |
| Net Weight (Without Stand) | 4.8 kg |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Certifications & Standards (Please contact EIZO for the latest information.) |
RX570, RX570-AR:
CB, CE / UKCA (Medical Device), c-TUV-us, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES (B), RCM, RoHS, China RoHS, WEEE, CCC |
| FDA | 510(k) Clearance for Breast Tomosynthesis, Mammography, and General Radiography |
| Dedicated Software | |
| Monitor Quality Control Software RadiCS | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables |
RX570-MD, RX570-AR-MD:
DisplayPort (3 m) x 2, DisplayPort (1 m) RX570, RX570-AR: DisplayPort (3 m) |
| Others |
RX570-MD, RX570-AR-MD:
AC power cord (3 m) x 2, USB Type-A - USB Type-B cable (3 m) x 2, Utility Disk (RadiCS LE, PDF installation manual), instructions for use RX570, RX570-AR: AC power cord (3 m), USB Type-A - USB Type-B cable (3 m), Utility Disk (RadiCS LE, PDF installation manual), instructions for use |
| Warranty | 5 Years |
| Dimension Drawing |
