Visibility Optimizer for Clear Images
The DuraVision FDF2306W is equipped with EIZO's Visibility Optimizer visibility-enhancing technology which includes functions for improving the clarity of images in real time.

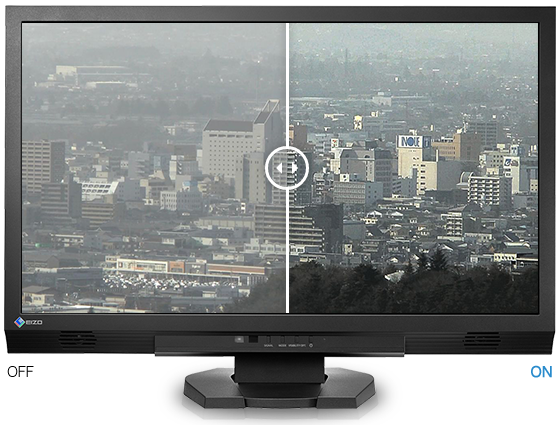

Defog enhances images that are affected by fog, snow, or other environmental factors that cause the video to appear hazy or unclear.
Low-light Correction detects areas of the screen that are dark and difficult to see and adjusts the brightness of each pixel. This reproduces highly visible images with a realistic sense of depth by brightening dark areas and keeping lighter areas from becoming washed out.
Outline Enhancer analyzes the displayed content and ensures that noise is not accentuated while correcting blurred areas for a sharper, clearer image. For images with a great deal of depth, it sharpens the foreground more strongly to maintain a real-world sense of focus.
|White Paper: Technology for Improving Visibility - "Visibility Optimizer" and Its Effects|
Clear View from Below
For environments where the monitor is placed above eye level, the DuraVision FDF2306W includes an Up View function that minimizes color wash-out that may occur from viewing an LCD screen from below. This ensures that the screen can be viewed clearly whether the monitor is placed on a desk or mounted to a wall or ceiling.
The DuraVision FDF2306W converts an 8-bit input signal from a PC to 14-bit and selects the most appropriate tones from a 14-bit look-up-table (LUT). The signal is then converted back to 8-bit for smooth gradations.
2-Year, 24-Hour Use Warranty
The monitor is built for 24-hour use and is backed by a two-year manufacturer's warranty for long-term reliability.
Adjust the monitor to the most comfortable position with height adjustment, tilt, and swivel capability. The stand can be easily removed for wall mounting with VESA support.
The monitor is equipped with an LED backlight that has a wide dimming range adjustable to as low as 3 cd/m2. This provides flexibility and comfort when using the monitor in environments with low or changing ambient lighting.
Compact Remote Control
Change inputs, sound, screen size, and other settings with the included remote control.
|Model Variations||With Stand|
|Size||23.0" / 58 cm|
|Native Resolution||1920 x 1080 (16:9 aspect ratio)|
|Viewable Image Size (H x V)||509.7 x 286.7 mm|
|Pixel Pitch||0.266 x 0.266 mm|
|Display Colors||16.7 million|
|Viewing Angles (H / V, typical)||170°, 160°|
|Brightness (typical)||250 cd/m2|
|Contrast Ratio (typical)||1000:1 (5000:1 with ContrastEnhancer)|
|Response Time (typical)||10 ms (Black-White-Black)|
PC: DVI-D 24 pin (with HDCP), D-Sub mini 15 pin
PC / AV: HDMI x 2
|Digital Scanning Frequency (H / V)||HDMI: 15 - 68 kHz / 49 - 61 Hz (VGA Text: 69 - 71 Hz), DVI: 31 - 68 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)|
|Analog Scanning Frequency (H / V)||
PC: 31 - 81 kHz, 55 - 76 Hz
|Speakers||0.5 W + 0.5 W (stereo)|
PC: 3.5 mm stereo jack x 1
PC / AV: HDMI x 2
|Output Terminals||3.5 mm stereo jack, 3.5 mm headphone jack|
|Sound Adjustment||Volume, Mute, Sound Level, source (HDMI)|
|Power Requirements||AC 100 - 120 V/ AC 200 - 240 V, 50 / 60 Hz|
|Maximum Power Consumption||38 W|
|Typical Power Consumption||19 W|
|Power Save Mode||Less than 0.4 W|
|Standby Mode||Less than 0.3 W|
|Power Management||DVI DMPM, VESA DPM|
|Features & Functions|
|Preset Modes||Color Mode (User1, User2, sRGB)|
|Auto EcoView||Yes (Default: Disabled)|
|OSD Languages||English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish|
|Others||Visibility Optimizer(Low-light Correction, Defog, Auto Fog Detection, Outline Enhancer, Skin Tone Detection, Text Detection, Noise Reduction), Smoothing, Overdrive, Contrast Enhancer, Up View, Key Lock|
|Dimensions (Landscape, W x H x D)||545 x 390 - 450 x 200 mm|
|Dimensions (Without Stand, W x H x D)||545 x 348.5 x 54 mm|
|Net Weight||5.2 kg / 11.5 lbs|
|Net Weight (Without Stand)||3.9 kg / 8.6 lbs|
|Height Adjustment Range||60 mm|
|Tilt||25° Up, 0° Down|
|Hole Spacing (VESA Standard)||100 x 100 mm|
|Operating Temperature||5 - 35 °C|
|Operating Humidity (R.H., non condensing)||20 - 80 %|
|Certifications & Standards (Please contact EIZO for the latest information.)||CB, CE, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, CCC, RCM, EAC, RoHS, WEEE, China RoHS|
|Supplied Accessories (May vary by country. Please contact EIZO for details.)||Power cord, Signal cable (DVI-D - DVI-D, HDMI - HDMI), remote control with battery, Screws for mount option, Setup manual, CD-ROM (PDF user's manual)|
