EIZO's IP decoding solutions provide high performance, long-term reliability, and flexible installation to a wide range of environments.

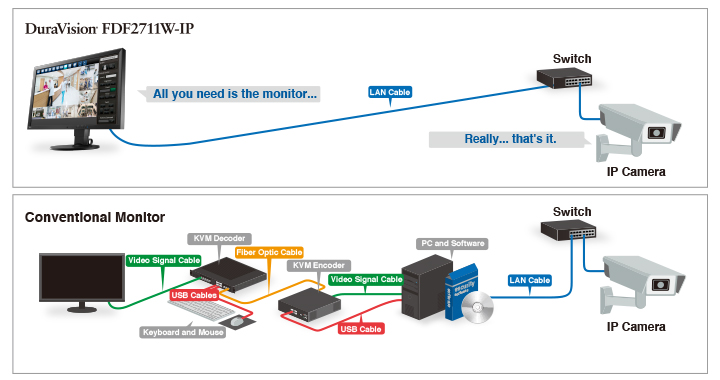

Integrated Solution

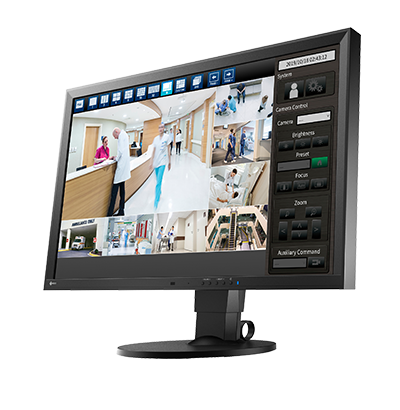

The DuraVision FDF2711W-IP connects to an IP camera or switch to immediately begin streaming video. It does not require a PC, software, or other hardware to operate, greatly simplifying installation and saving on time and labor costs. This also eliminates several potential points of failure and addresses security concerns typical of a conventional setup by heavily reducing the amount of equipment needed to manage sensitive visual data.
Powerful Performance
Video Decoding
The DuraVision FDF2711W-IP can decode H.265 (HEVC), as well as H.264 and MJPEG codecs, displaying them in real time for assessing any situation quickly. In addition, the decoding technology ensures a high fps (frames-per-second) for displayed content, even when streaming high-resolution video. For example, 16 Full HD (1920 x 1080) video feeds displayed simultaneously on a single monitor achieve a consistent 20 fps.

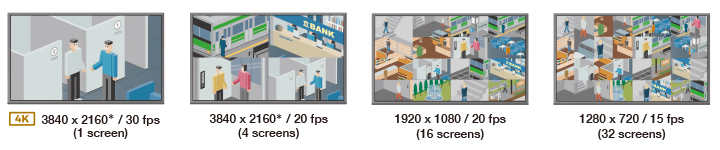

Examples of framerate at different resolution and screen combinations.
*Downscaled to 1920 x 1080 resolution

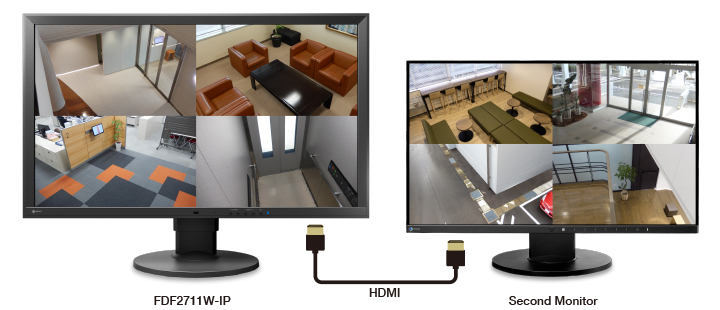

Multi-Monitor Viewing
The DuraVision FDF2711W-IP is equipped with an HDMI output that supports connection to a second monitor with Full HD resolution (1920 x 1080). This provides a multi-monitor environment that allows users to flexibly manage video from the same network source across two screens.
Secure Investment with Support for Over 300 Cameras
|
The DuraVision FDF2711W-IP supports cameras with ONVIF Profile S, Axis VAPIX, and Panasonic protocols for flexible installation and ensured interoperability with a wide range of products. In addition, a direct connection through RTSP is available (Direct URI). |
|

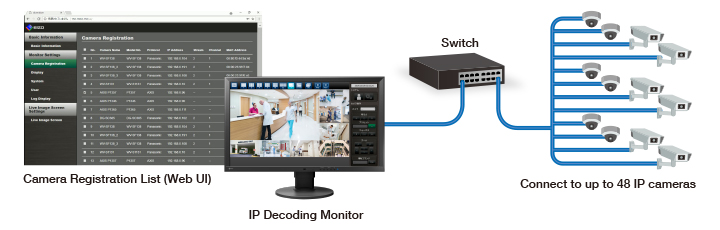

Register up to 48 IP Cameras
Up to 48 different IP cameras, including 4K cameras, can be registered to the IP decoding monitor through the intuitive web UI. Cameras can be discovered automatically or registered manually, and individual settings are easily managed from a central location.

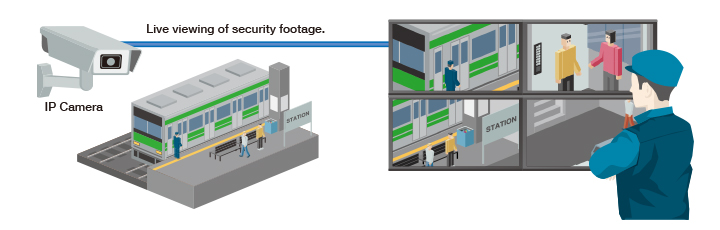

Live Streaming Directly from IP Cameras
Connecting IP cameras directly to the DuraVision FDF2711W-IP allows for the live streaming of video without a decentralized recording solution, such as edge recording or cloud archiving. This provides a solution for scenarios which require live streaming without the storage of recorded images.
Features for Ease-of-Use

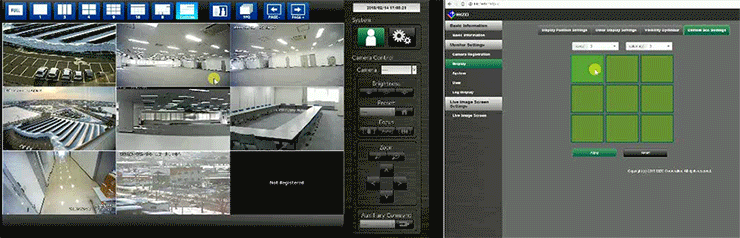

Adjustable Screen Layout
With the user-friendly web UI, you can easily adjust the layout of the video streams with 7 default options, displaying up to 32 screens on the monitor. In addition, flexible arrangement of the screens in a custom layout allows you to fulfill individual viewing needs. With custom layout you can merge individual windows to focus on specific areas, or split them to see more on a single screen. Video feeds can be viewed in the original aspect ratio or stretched to fill the custom-created space.

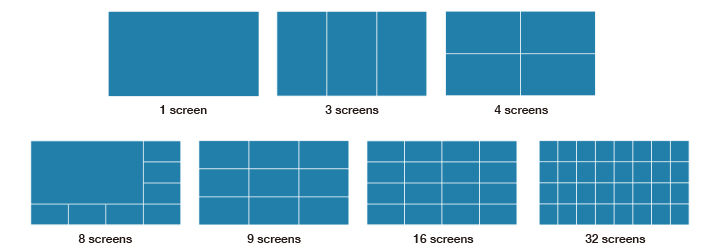

Choose from 7 default layouts.
Create a custom layout.
Sequential Screen Lock
When using the sequential image display setting, users can select an image to remain static, even through page changes. This allows operators to keep eyes on a single focus point while maintaining a coverage in several other areas.
Privacy Mask and Virtual Line
The DuraVision FDF2711W-IP allows users to assign static privacy masks to hide private information or virtual lines to track barriers and other areas of concern on the live video stream. Up to 10 objects can be applied at once and they do not alter the source stream. This ensures operators can reliably monitor activity while observing necessary privacy rules and regulations, with the original data securely stored separately.

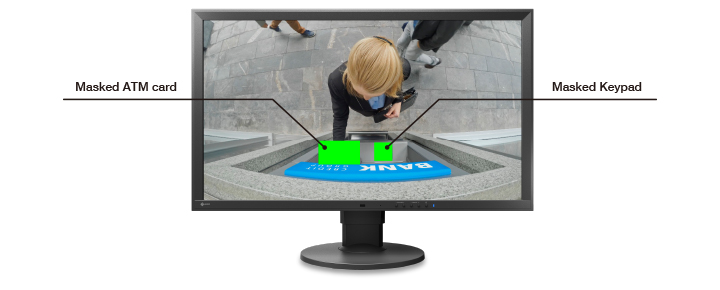

Example of privacy mask used to protect private information at an ATM.
Example of virtual line used to track road barriers.

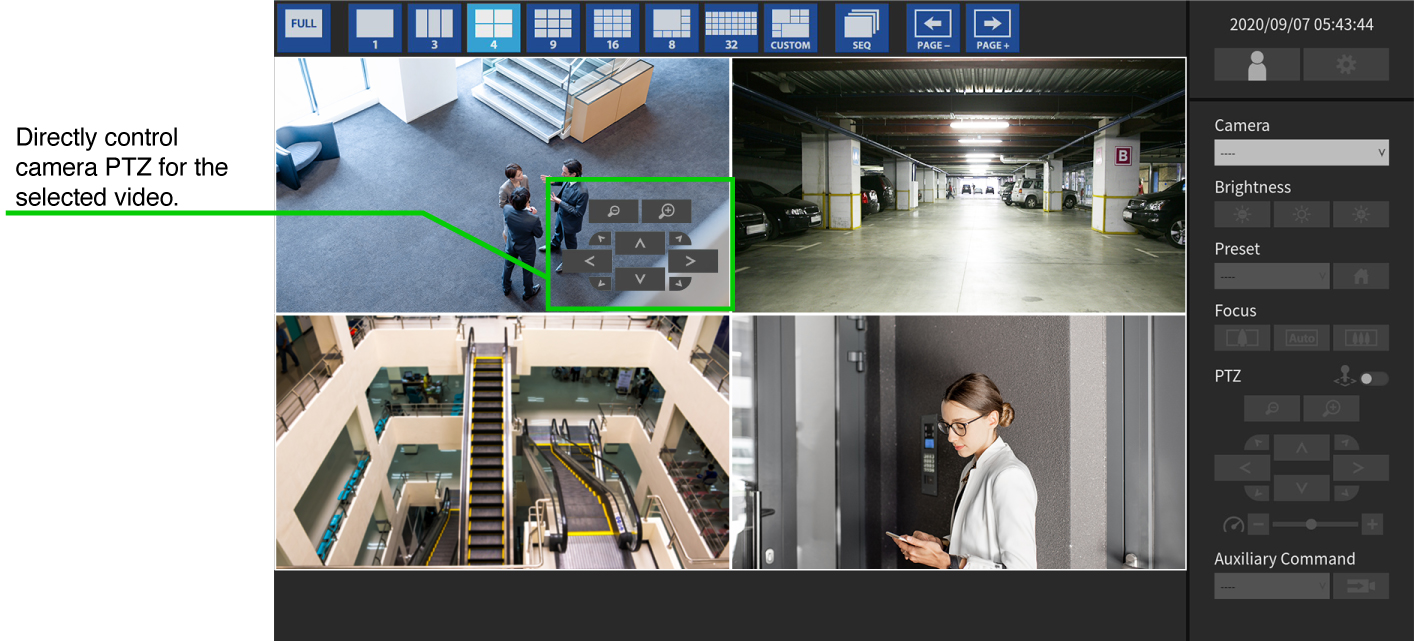

Intuitive Camera PTZ Control
Operators can easily control individual camera PTZ settings using the buttons displayed over the selected video stream. This intuitive interface streamlines operation for more efficient viewing.
Secure Network Communication
The DuraVision FDF2711W-IP supports HTTPS protocol to ensure authenticated access for secure communication over a network.
This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (https://www.openssl.org/)
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).
Integration with Security Systems

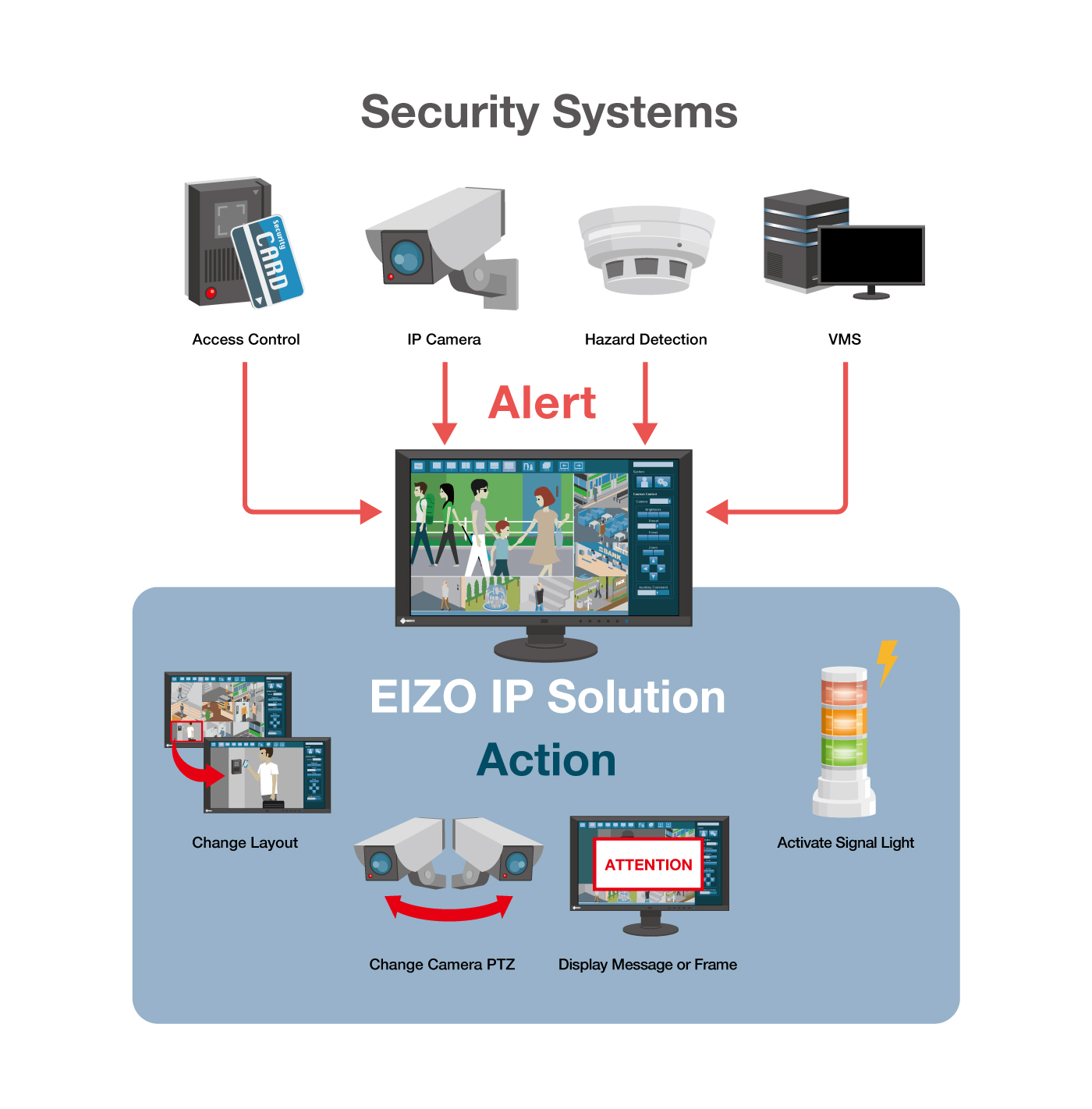

Custom Event Response with Alert-to-Action
The web API supports custom integration with local security systems and devices to allow communication with and response to alerts over the network. When an event occurs and an alert is sent from IP cameras, access control, hazard detection, VMS, or other systems, EIZO's IP decoding solution responds with a preassigned action, such as layout adjustment, message display, audio activation, camera adjustment, masking, and more. Implementing an intelligent visual communication system into the workflow ensures operators have the most pertinent information at the right time to respond to situations quickly. EIZO works closely with security system providers and end users to custom tailor Alert-to-Action to streamline individual environments.
 |

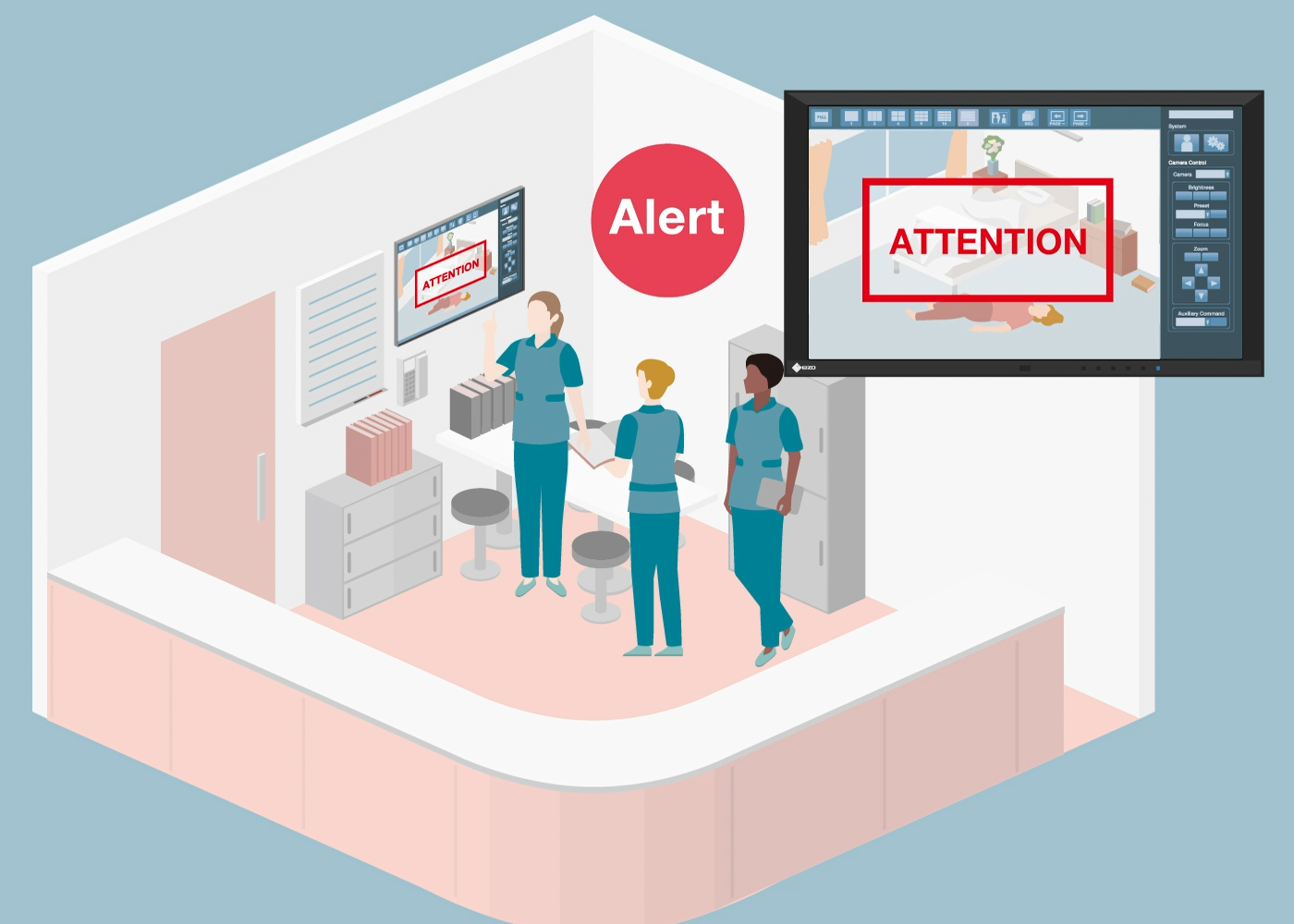

Event Response for Every Environment An efficiently running facility relies heavily on staff and security personnel having the right information at the right time. See how Alert-to-Action helps facilitate streamlined operations and maintain a safe environment for hospitals, public transportation hubs, and more. Learn more |

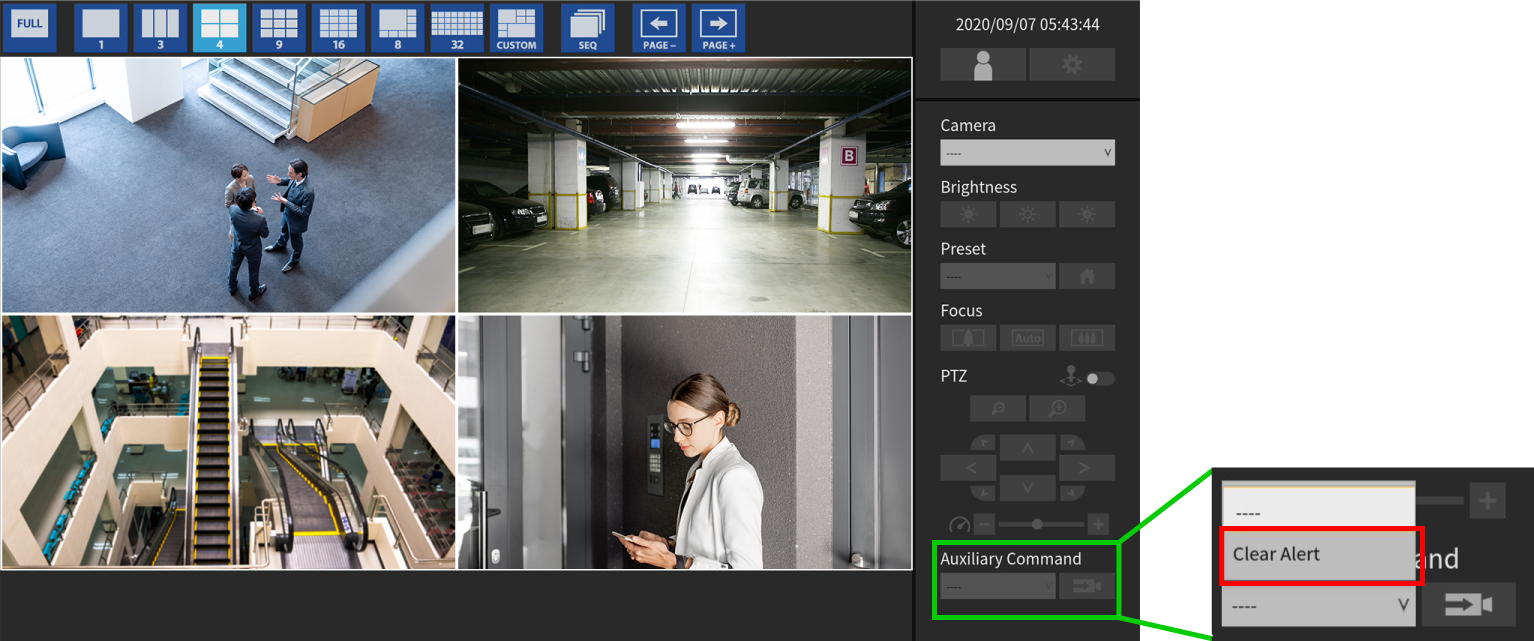

Issue Commands to Network Devices
Through the event notification settings, users can manually send HTTP commands directly to the IP monitor or network device from the live view screen. For example, activate a door lock or turn off the alert and return to original viewing state.
Synergy with Leading VMS
EIZO works with security & surveillance leaders to ensure technical compatibility and streamlined functionality with various video management systems/software (VMS).

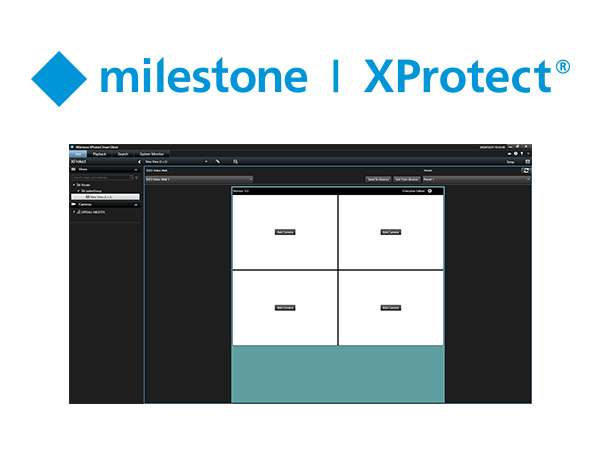

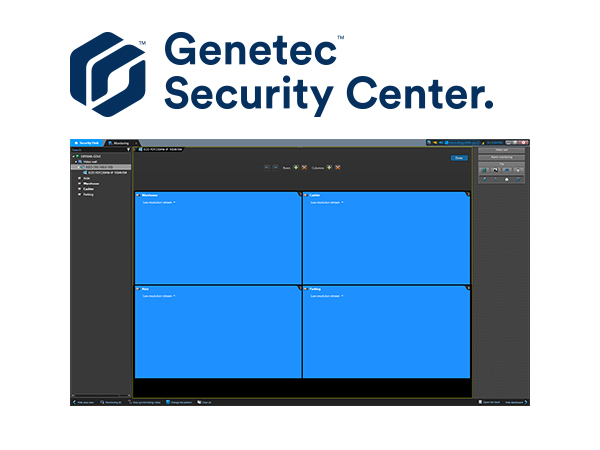

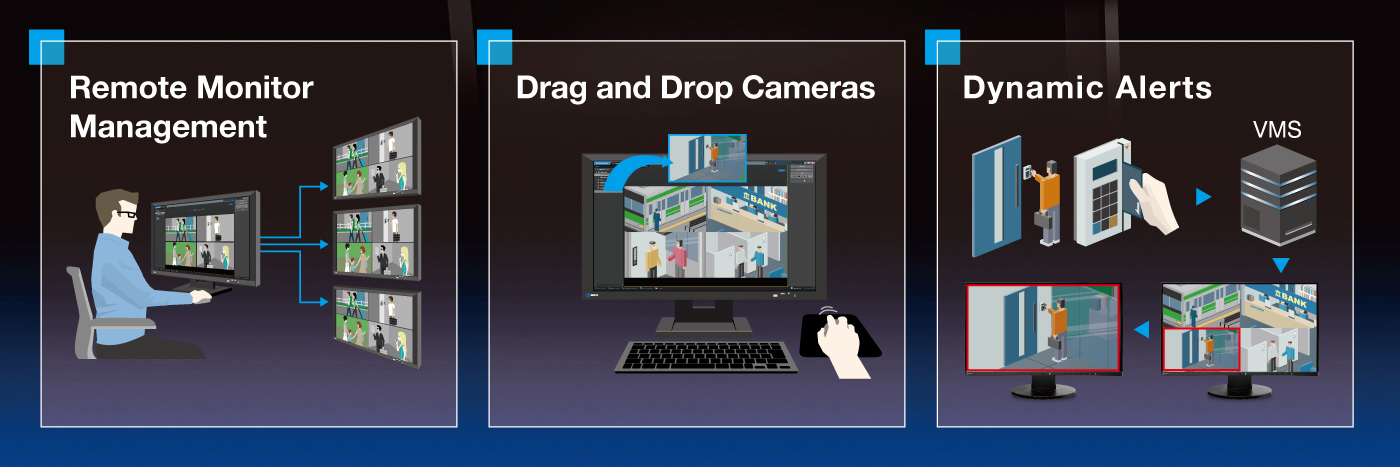

Co-Development of User-Requested Plugins
EIZO came together with leading VMS makers to design plugins to meet highly requested end user requirements. By fully integrating into these VMS frameworks, users can easily setup, manage, and command EIZO's IP decoding solutions from a centralized platform.
| Read more on the plugin for Genetec Security Center. | Download the plugin for Milestone XProtect. |
 |
 |
Upgraded Functionality
Software Updates
EIZO's in-house development team continues to provide upgraded features and functions to its IP decoding solutions through periodic software updates. Innovating these updates in-house ensures EIZO provides its customers with the latest functionality and technical support with efficiency and reliability.
Download the latest software
Enterprise License
Users can subscribe to an optional Enterprise License which includes advanced features, such as those listed below, to meet specific environment or application requirements. Contact EIZO for more information about licensing.

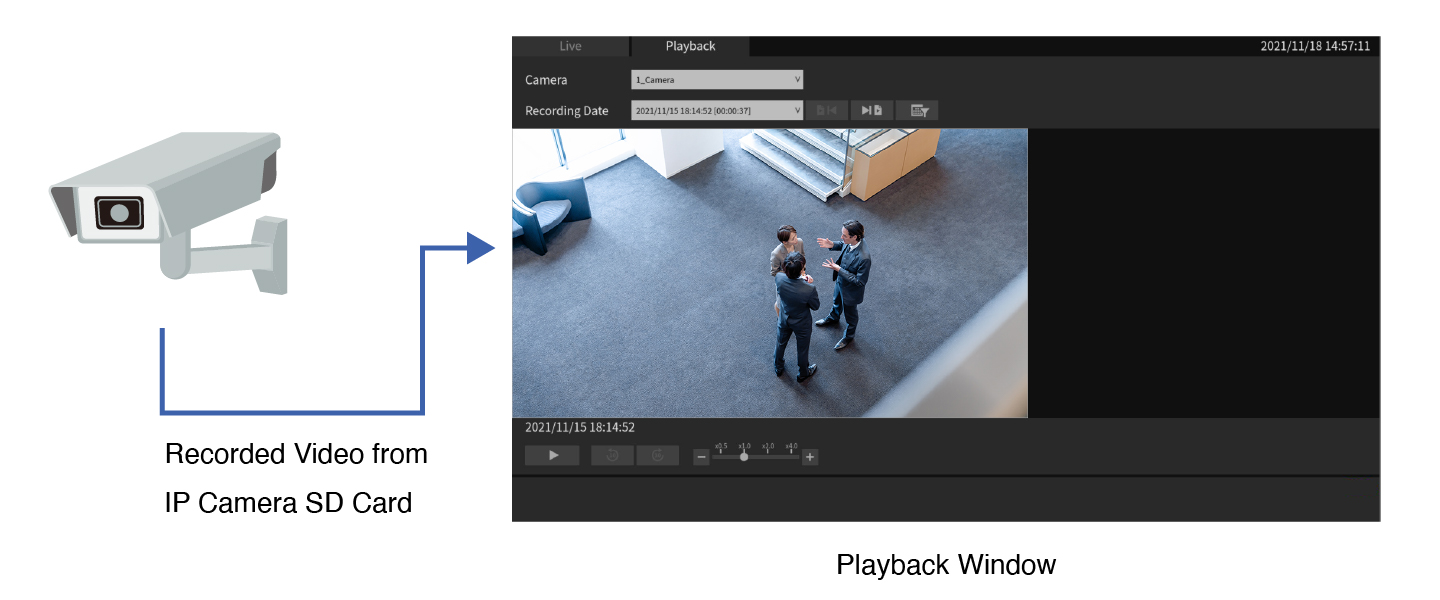

Playback Recorded Video
Video segments recorded to the registered IP camera's SD card can be played back for quick review. Simply select the camera and the recorded data from the pull-down menu.
Supported by cameras with Panasonic or AXIS protocols only.
Requires Extension Playback License in addition to the Enterprise License. Contact EIZO for details.

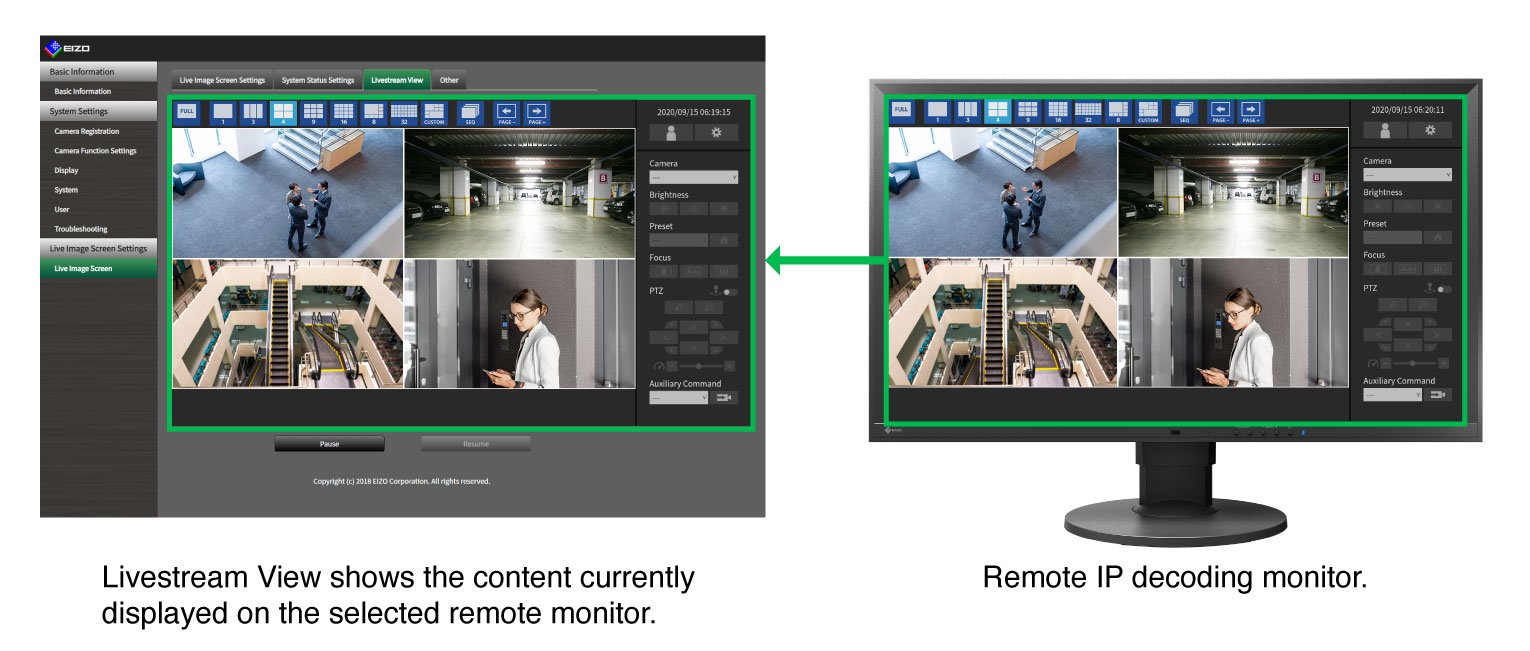

View Remote Monitor Live Streams via the Web UI
Live video streams displayed on remotely located monitors can be viewed in real-time via the web UI so operators can check display status without needing to visit the installation site.
Video plays back at 1 fps in the live stream window.

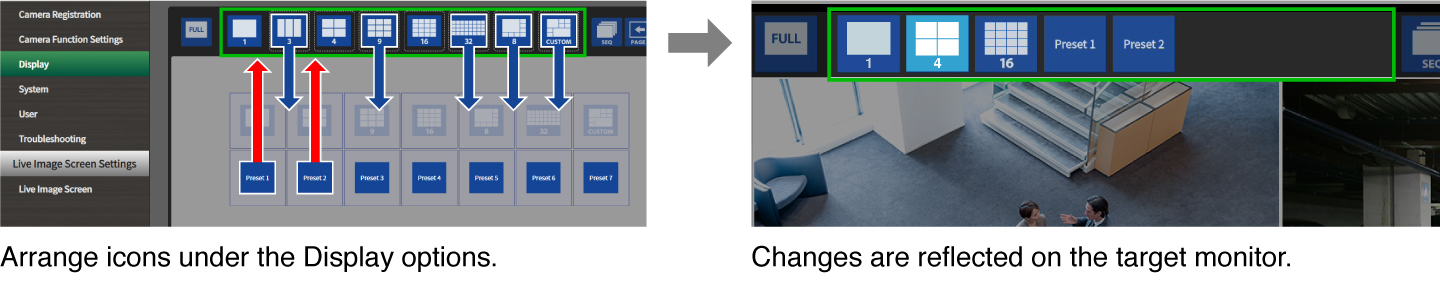

Live Image Menu Customization
Customize the live view menu with preset icons of your choice using the Icon arranger function. You can also save up to seven custom layout presets and add it to the live view menu. Presets can also be renamed for easier menu navigation.

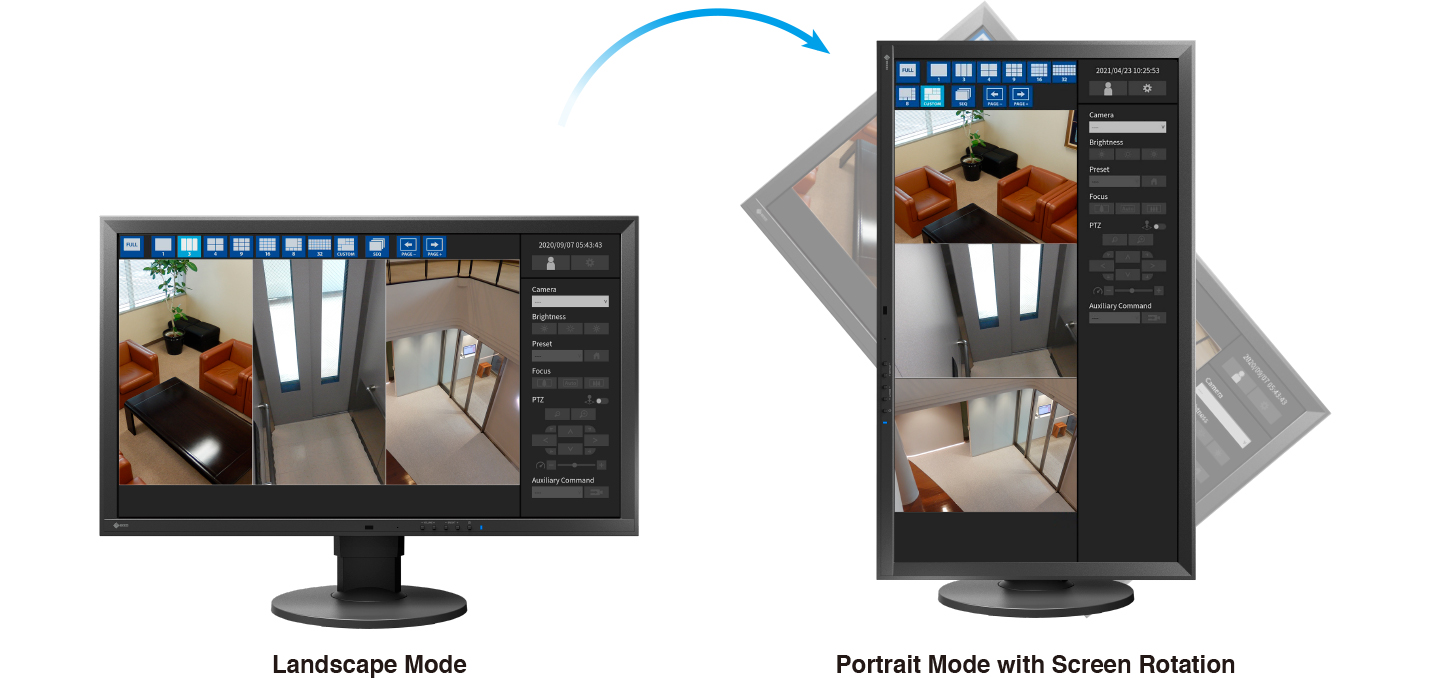

Screen Rotation
The screen can be rotated to adapt to the monitor in portrait position for environments requiring this layout.
VMS Failover
When used with a VMS (video management software/system), a monitor receives IP camera video streams through the VMS server. In the event the server is disrupted, the monitor may stop displaying the live video feed. With the failover feature, if the IP monitor or box loses communication with the VMS server, it connects directly to the cameras registered to continue to display video.
Requires Extension Failover License in addition to the Enterprise License. Contact EIZO for details.
Support for a Range of Protocols
|
SRT (Secure Reliable Transport)
SRT is an open source video transport protocol that enables the delivery of high-quality and secure, low-latency video across the public internet. It is ideal for video streaming in environments where latency and consistent connection pose a challenge, such as onboard ships or in remote locations. Requires Extension SRT License in addition to the Enterprise License. Contact EIZO for details. |
|
LDAP (Lightweight Directory Access Protocol)
LDAP is a protocol for connecting to directory services that centrally manage network devices and users. User and password management is simple and secure when under the LDAP server.
AXIS SRTP (Secure Real-Time Transport Protocol)
AXIS SRTP support enables the IP monitor or box to receive encrypted video streams from AXIS cameras, further increasing security.
SNMP (Simple Network Management Protocol)
SNMP is a communication protocol for monitoring and controlling devices connected to a network. It consists of an SNMP manager and SNMP agent. The IP monitor or box acts as an SNMP agent to return device information in response to a request sent by the SNMP manager, and to notify a change in status when a specified event occurs. The DuraVision FDF2711W-IP support SNMP v1 and v2c.
Enterprise License is not required for SNMP support.
Flexible Installation
VESA-Supported Solution
The DuraVision FDF2711W-IP can be mounted on a wall or ceiling using VESA-supported fixtures for convenient installation in any environment.
Built-In Power Supply
The AC power supply is built-in so you can easily connect with a single power cord. This helps to keep the installation area clear of additional clutter.
Safety Lock
The monitor is equipped with a safety lock that can lock it in place on a desk or other surface, preventing the monitor from being knocked over or removed.
Durability and Reliability
24-Hour Use, 2-Year Warranty
The monitor is built for 24-hour use and is backed by a two-year manufacturer’s warranty for long-term reliability.
IP Decoding Solution Range
EIZO's IP decoding solutions also include 23- and 46-inch monitors (generation 1), as well as an external box solution (generation 2).
| Model Variations | FDF2711W-IP-BK: with stand, black |
|---|---|
| Panel | |
| Type | VA |
| Backlight | LED |
| Size | 27.0" (68.6 cm) |
| Native Resolution | 1920 x 1080 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 597.6 x 336.2 mm |
| Pixel Pitch | 0.311 x 0.311 mm |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 350 cd/m2 |
| Contrast Ratio (typical) | 3000:1 |
| Response Time (typical) | 12 ms (black-white-black) |
| Video Processor | |
| Simultaneous Display Channels | 32 (maximum) |
| Registrable Cameras | 48 (maximum) |
| Camera Protocol | ONVIF Profile S, AXIS VAPIX, Panasonic, RTSP |
| Video Codec | H.26510, H.264, MJPEG13 |
| Streaming Protocol | RTP (H.265, H.264, MJPEG, MPEG2-TS), SRT14 (H.265, H.264), SRTP15 (H.265, H.264), UDP (MPEG2-TS) |
| Video Input Performance (resolution / framerate) *Bitrate 4096 kbps |
1-screen display: 3840 x 2160 / 30 fps, 1920 x 1080 / 60 fps
4-screen display: 3840 x 2160 / 20 fps, 1920 x 1080 / 60 fps 16-screen display: 1920 x 1080 / 20 fps 32-screen display: 1280 x 720 / 15 fps |
| Bitrate | 8192 kbps (maximum) |
| Video Signals | |
| Input Terminals | IP Camera: RJ-45 |
| Output Terminals | HDMI |
| Output Resolution | 1920 x 1080 (fixed) / 60 Hz |
| Network | |
| Wired LAN | IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX) |
| Transmission Rate | 1000 Mbps, 100 Mbps |
| USB | |
| Host | USB 2.0: Type-A x 2 |
| Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Maximum Power Consumption | 59 W |
| Features & Functions | |
| Security | HTTPS, IEEE802.1X15 |
| OSD Languages | English, German, Japanese |
| Others | Key Lock, USB Lock, Remote Controller Lock, Privacy Mask, Event Rules, LDAP15, SNMP |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 640 x 404.5 - 554.5 x 245 mm |
| Dimensions (Without Stand, W x H x D) | 640 x 379 x 65 mm |
| Net Weight | 9.9 kg / 21.8 lbs |
| Net Weight (Without Stand) | 7.1 kg / 15.7 lbs |
| Height Adjustment Range | 150 mm |
| Tilt | 35° Up, 5° Down |
| Swivel | 344° |
| Pivot | 90° |
| Hole Spacing (VESA Standard) | 100 x 100 mm, M4, screw depth 11.0 mm |
| Environmental Requirements | |
| Operating Temperature | 0 - 40°C |
| Operating Humidity (R.H., non condensing) | 20 - 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE, UKCA, cTUVus, FCC-A, CAN ICES-3 (A), TUV/S, PSE, VCCI-A, EAC, RCM, RoHS, WEEE |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Others | AC Power cord (2 m), Setup manual |
| Warranty | 2 Years (24-hour use) |
| Dimension Drawing |
- 10 Please check IP camera compatibility.
- 13 MJPEG is only available with the ONVIF Profile S protocol.
- 14 Enterprise license and extension license are required.
- 15 Enterprise license is required.
