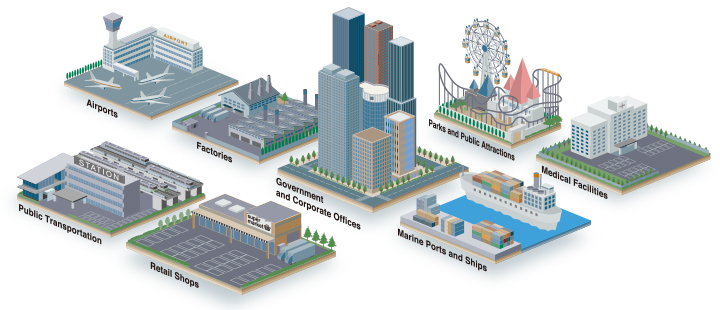

Solutions for Every Market
EIZO's IP decoding solutions provide high performance, long-term reliability, and flexible installation to a wide range of environments.

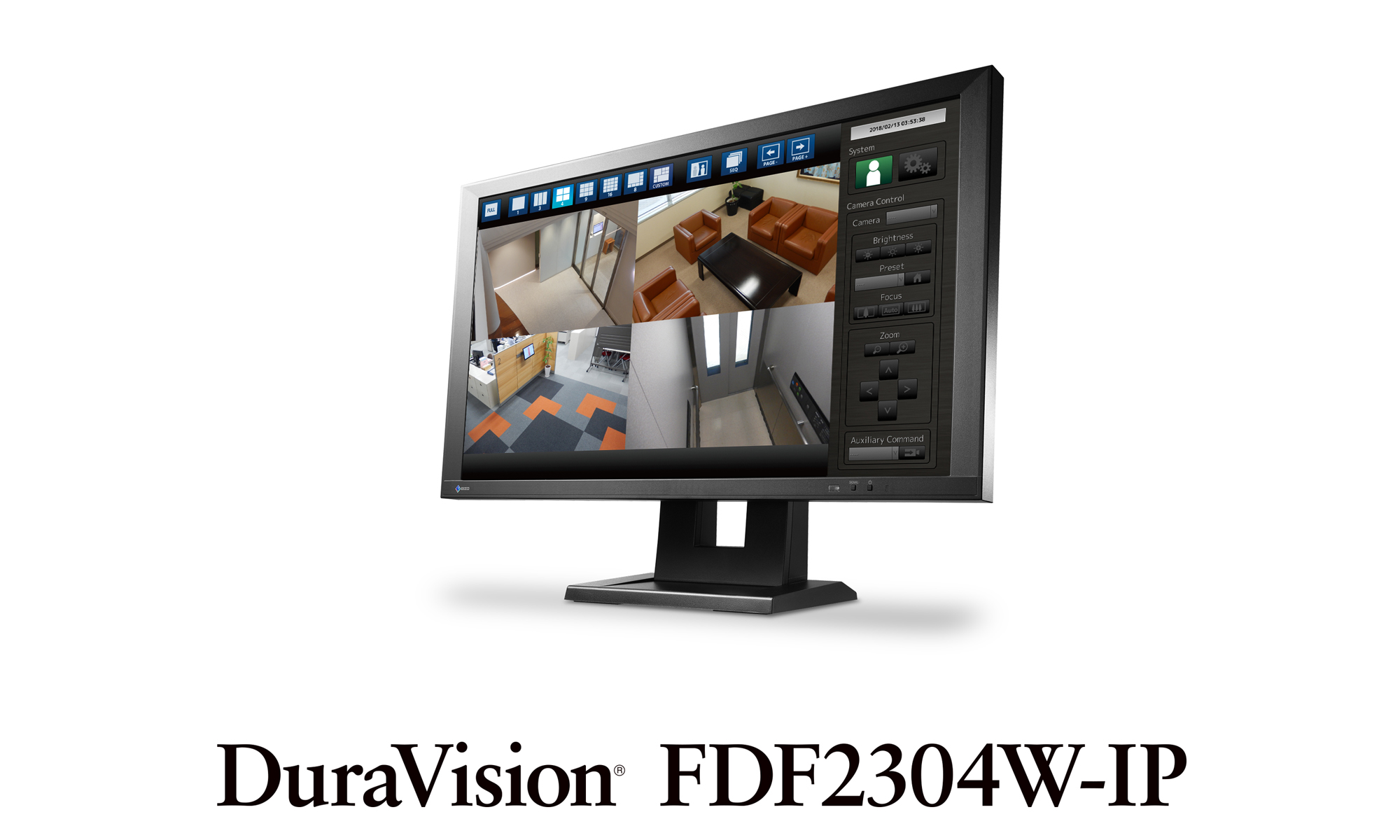

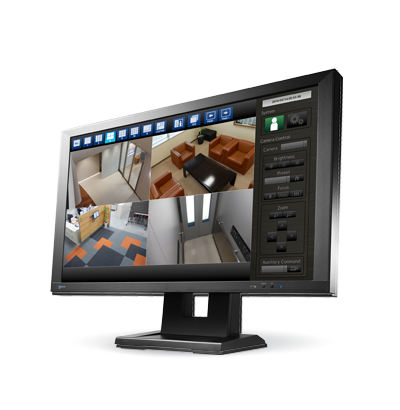

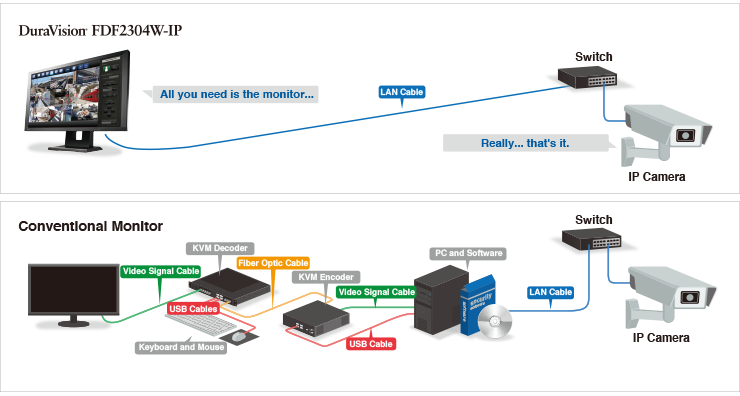

The DuraVision FDF2304W-IP connects to an IP camera or switch to immediately begin streaming video. It does not require a PC, software, or other hardware to operate, greatly simplifying installation and saving on time and labor costs. This also eliminates several potential points of failure and addresses security concerns typical of a conventional setup by heavily reducing the amount of equipment needed to manage sensitive visual data.
The DuraVision FDF2304W-IP can decode H.264 and MJPEG codecs, displaying them in real time for assessing any situation quickly. In addition, the decoding technology ensures a high fps (frames-per-second) for displayed content, even when streaming high-resolution video. For example, 16 video feeds at 640 x 480 resolution displayed simultaneously on a single monitor achieve a consistent 20 fps.

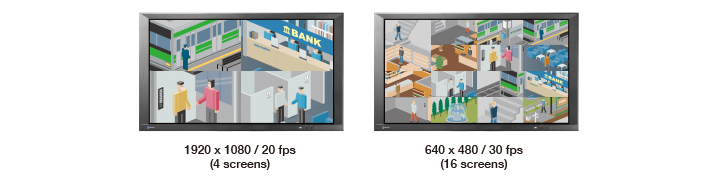

Examples of framerate at different resolution and screen combinations.
Secure Investment with Support for Over 250 Cameras
The DuraVision FDF2304W-IP supports cameras with ONVIF Profile S, Axis VAPIX, and Panasonic protocols for flexible installation and ensured interoperability with a wide range of products. In addition, a direct connection through RTSP is available (Direct URI).
Register Cameras with the Intuitive Web UI

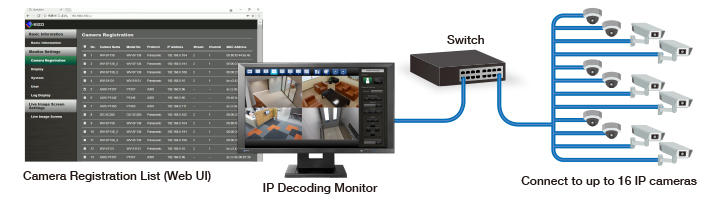

Up to 16 different IP cameras can be registered to the IP decoding monitor through the intuitive web UI. Cameras can be discovered automatically or registered manually, and individual settings are easily managed from a remote location.

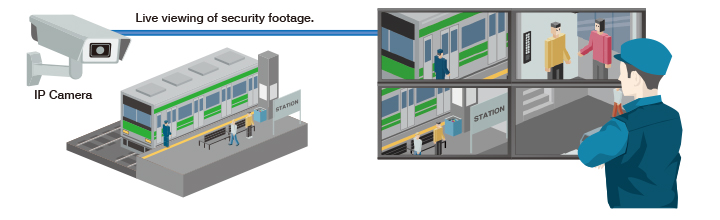

Live Streaming Directly from IP Cameras
Connecting IP cameras directly to the DuraVision FDF2304W-IP allows for the live streaming of video without a decentralized recording solution, such as edge recording or cloud archiving. This provides a solution for scenarios which require live streaming without the storage of recorded images.
Features for Ease-of-Use

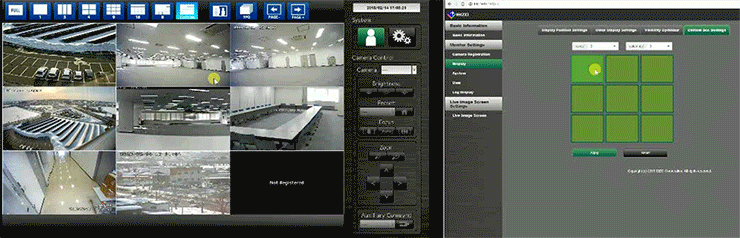

Adjustable Screen Layout
With the user-friendly web UI, you can easily adjust the layout of the video streams with 6 default options, displaying up to 16 screens on the monitor. In addition, flexible arrangement of the screens in a custom layout allows you to fulfill individual viewing needs. With custom layout you can merge individual windows to focus on specific areas, or split them to see more on a single screen. Video feeds can be viewed in the original aspect ratio or stretched to fill the custom-created space.

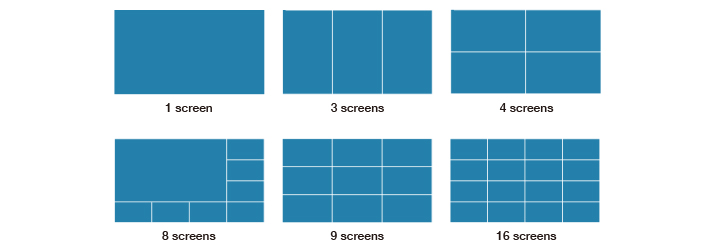

Choose from 6 default layouts.
Create a custom layout.
Upgraded Functionality with Software Updates
EIZO's in-house development team continues to provide upgraded features and functions to its IP decoding solutions through periodic software updates. Innovating these updates in-house ensures EIZO provides its customers with the latest functionality and technical support with efficiency and reliability.
Integration with Security Systems

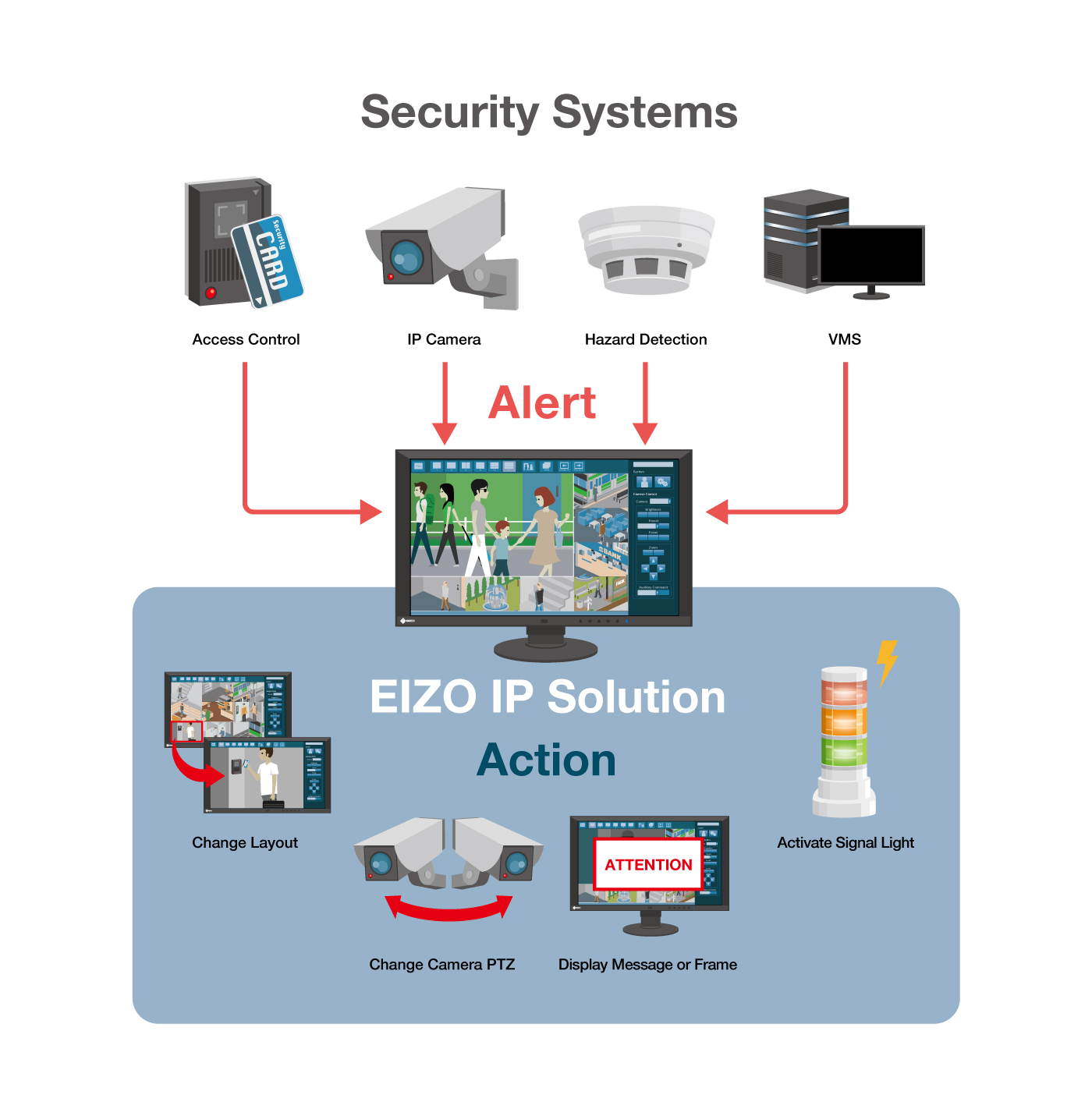

Custom Event Response with Alert-to-Action
The web API supports custom integration with local security systems and devices to allow communication with and response to alerts over the network. When an event occurs and an alert is sent from IP cameras, access control, hazard detection, VMS, or other systems, EIZO's IP decoding solution responds with a preassigned action, such as layout adjustment, message display, audio activation, camera adjustment, masking, and more. Implementing an intelligent visual communication system into the workflow ensures operators have the most pertinent information at the right time to respond to situations quickly. EIZO works closely with security system providers and end users to custom tailor Alert-to-Action to streamline individual environments.

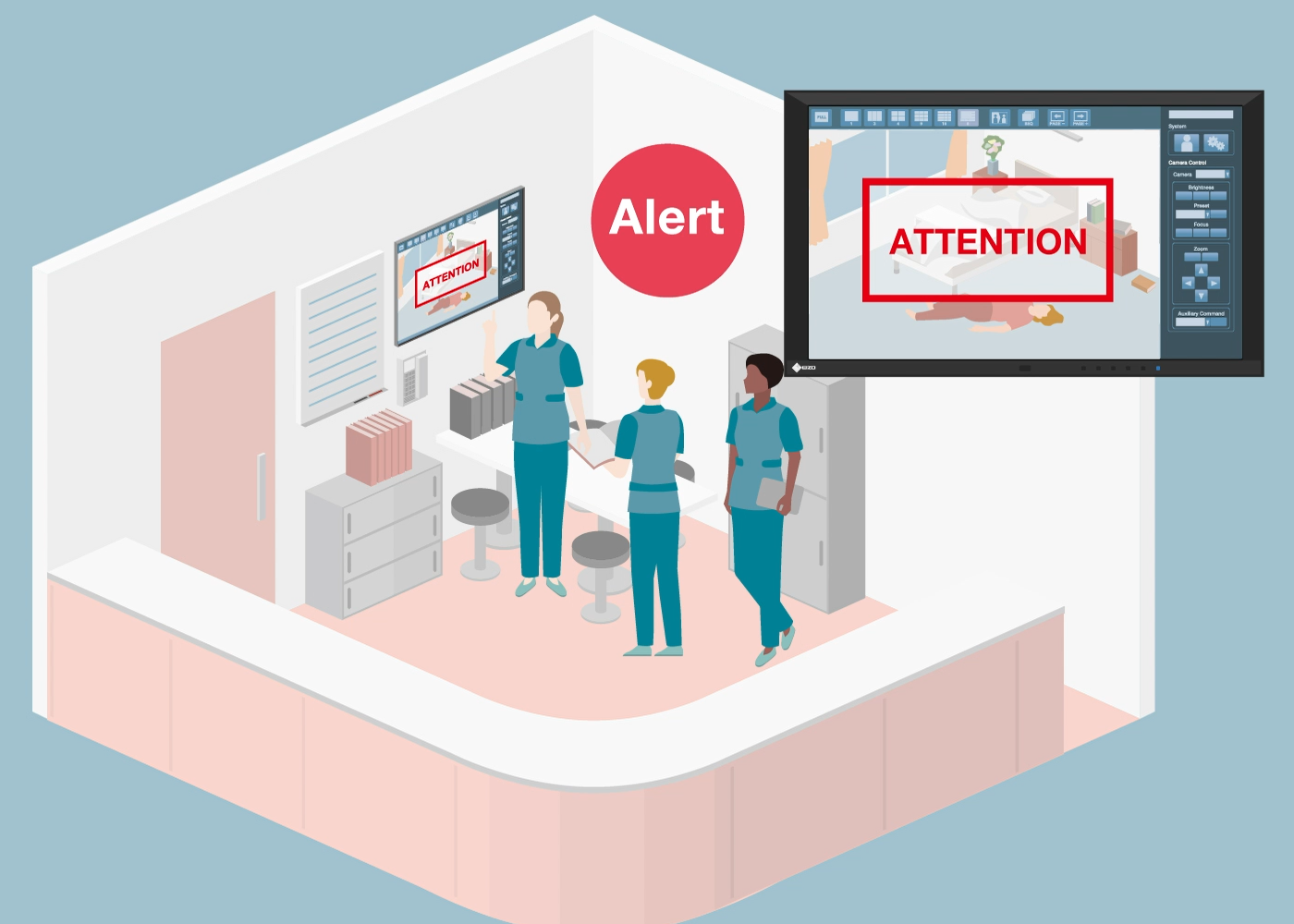

Event Response for Every Environment
An efficiently running facility relies heavily on staff and security personnel having the right information at the right time. See how Alert-to-Action helps facilitate streamlined operations and maintain a safe environment for hospitals, public transportation hubs, and more.Learn more
Synergy with Leading VMS
EIZO works with security & surveillance leaders to ensure technical compatibility and streamlined functionality with various video management systems/software (VMS).
Co-Development of User-Requested Plugins

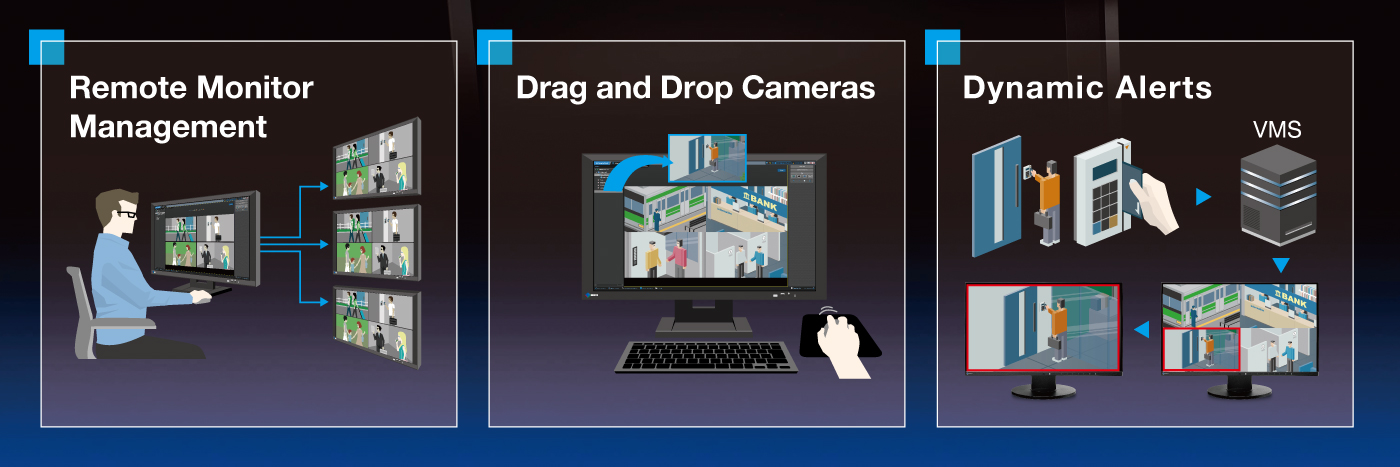

EIZO came together with leading VMS makers to design plugins to meet highly requested end user requirements. By fully integrating into these VMS frameworks, users can easily setup, manage, and command EIZO's IP decoding solutions from a centralized platform.

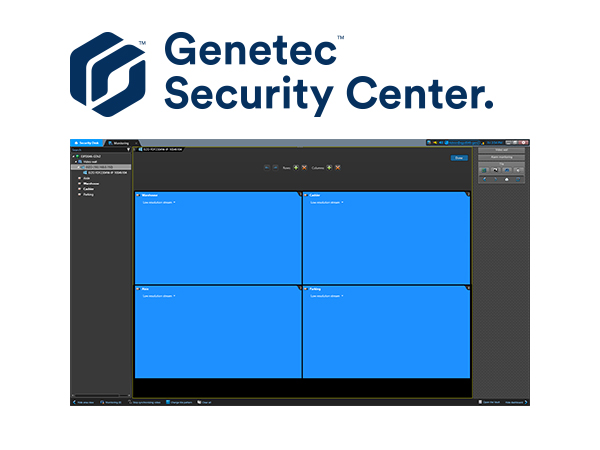

|Read more on the plugin for Genetec Security Center.||Download the plugin for Milestone XProtect.|
Visibility Optimizer for Clear Images
EIZO's unique technology called Visibility Optimizer includes a number of functions for improving the clarity of images in security & surveillance environments. Individually optimize these settings for up to 4 connected cameras in any layout.

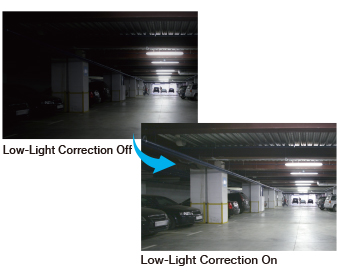

Low-Light Correction detects areas of the screen that are dark and difficult to see and adjusts the brightness of each pixel. This reproduces highly visible images with a realistic sense of depth by brightening dark areas while keeping lighter areas from becoming washed out.

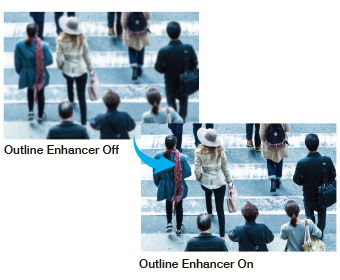

Outline Enhancer analyzes the displayed content and ensures that noise is not accentuated while correcting blurred areas for a sharper, clearer image. For images with a great deal of depth, it sharpens the foreground more strongly to maintain a real-world sense of focus.
The monitor includes settings to reduce the amount of block noise that occurs due to video compression.
Day and Night Preset Modes
Day and Night preset modes are optimized for displaying images under different environmental conditions throughout the day. You can easily switch between modes with the included remote control.
Clear View Across the Screen
The monitor is equipped with a non-glare IPS panel with wide viewing angles for minimal color shift and contrast change, even when viewed off-center. This ensures accurate color reproduction and clear visibility across the screen.
The DuraVision FDF2304W-IP can be mounted on a wall or ceiling using VESA-supported fixtures for convenient installation in any environment.
Built-In Power Supply
The AC power supply is built-in so you can easily connect with a single power cord. This helps to keep the installation area clear of additional clutter.
The monitor is equipped with a safety lock that can lock it in place on a desk or other surface, preventing the monitor from being knocked over or removed.
Durability and Reliability
24-Hour Use, 2-Year Warranty
The monitor is built for 24-hour use and is backed by a two-year manufacturer’s warranty for long-term reliability.
IP Decoding Solution Range
EIZO's IP decoding solutions also include an external box solution and 27-inch monitor (generation 2).
|Model Variations||FDF2304W-IP-BK: with stand, black|
|Size||23.0" (58 cm)|
|Native Resolution||1920 x 1080 (16:9 aspect ratio)|
|Viewable Image Size (H x V)||509.1 x 286.4 mm|
|Pixel Pitch||0.265 x 0.265 mm|
|Display Colors||16.77 million|
|Viewing Angles (H / V, typical)||178° / 178°|
|Brightness (typical)||300 cd/m2|
|Contrast Ratio (typical)||1000:1|
|Response Time (typical)||8 ms (gray-to-gray)|
|Simultaneous Display Channels||16 (maximum)|
|Registrable Cameras||16 (maximum)|
|Camera Protocol||ONVIF Profile S, AXIS VAPIX, Panasonic, RTSP|
|Video Codec||H.264, MJPEG13|
|Streaming Protocol||RTP (H.264, MJPEG)|
|Video Input Performance (resolution / framerate) *Bitrate 4096 kbps||
1-screen display: 1920 x 1080 / 30 fps
4-screen display: 1920 x 1080 / 20 fps
16-screen display: 640 x 480 / 30 fps
|Bitrate||8192 kbps (maximum)|
IP Camera: RJ-45
PC: HDMI (HDCP1.4)
|Wired LAN||IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX)|
|Transmission Rate||1000 Mbps, 100 Mbps|
|Host||USB 2.0: Type-A x 2|
|Power Input||AC 100 - 120 V / AC 200 - 240 V, 50 / 60 Hz|
|Maximum Power Consumption||61 W|
|Features & Functions|
|Visibility Optimizer||Visibility Optimizer|
|Preset Modes||Day, Night|
|OSD Languages||English, German, Japanese|
|Others||Key Lock, USB Lock, Remote Lock|
|Dimensions (Landscape, W x H x D)||563.5 x 411.5 x 157 mm|
|Dimensions (Without Stand, W x H x D)||563.5 x 325 x 63 mm|
|Net Weight||7.2 kg / 15.9 lbs|
|Net Weight (Without Stand)||4.8 kg / 10.6 lbs|
|Tilt||30° Up, 0° Down|
|Hole Spacing (VESA Standard)||100 x 100 mm, M4, screw depth 3.0 - 10.8 mm|
|Operating Temperature||0 - 35°C|
|Operating Humidity (R.H., non condensing)||20 - 80%|
|Certifications & Standards (Please contact EIZO for the latest information.)||CB, CE, UKCA, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, CCC, EAC, RCM, RoHS, WEEE|
|Supplied Accessories (May vary by country. Please contact EIZO for details.)|
|Signal Cables||HDMI (2 m)|
|Others||AC Power cord (2 m), Remote control with battery, CD-ROM (PDF user's manual), Setup manual|
|Warranty||2 Years (24-hour use)|
- 13 MJPEG is only available with the ONVIF Profile S protocol.
