ColorNavigator 7 logo
Color Management Software
Complete color management software solution for reliable calibration and quality control management of ColorEdge monitors

  • Contact EIZO

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

New and Improved for Photo to Film

Color Management Software for All Creatives

ColorNavigator 7 is the latest calibration and quality control software for ColorEdge color management monitors. It combines all the features of EIZO's previous color management software, ColorNavigator 6 and ColorNavigator NX, to create a new and improved solution for creatives in a range of fields. The proprietary software makes calibration simple and produces predictable results for photography, design, print, and video creation.



Features

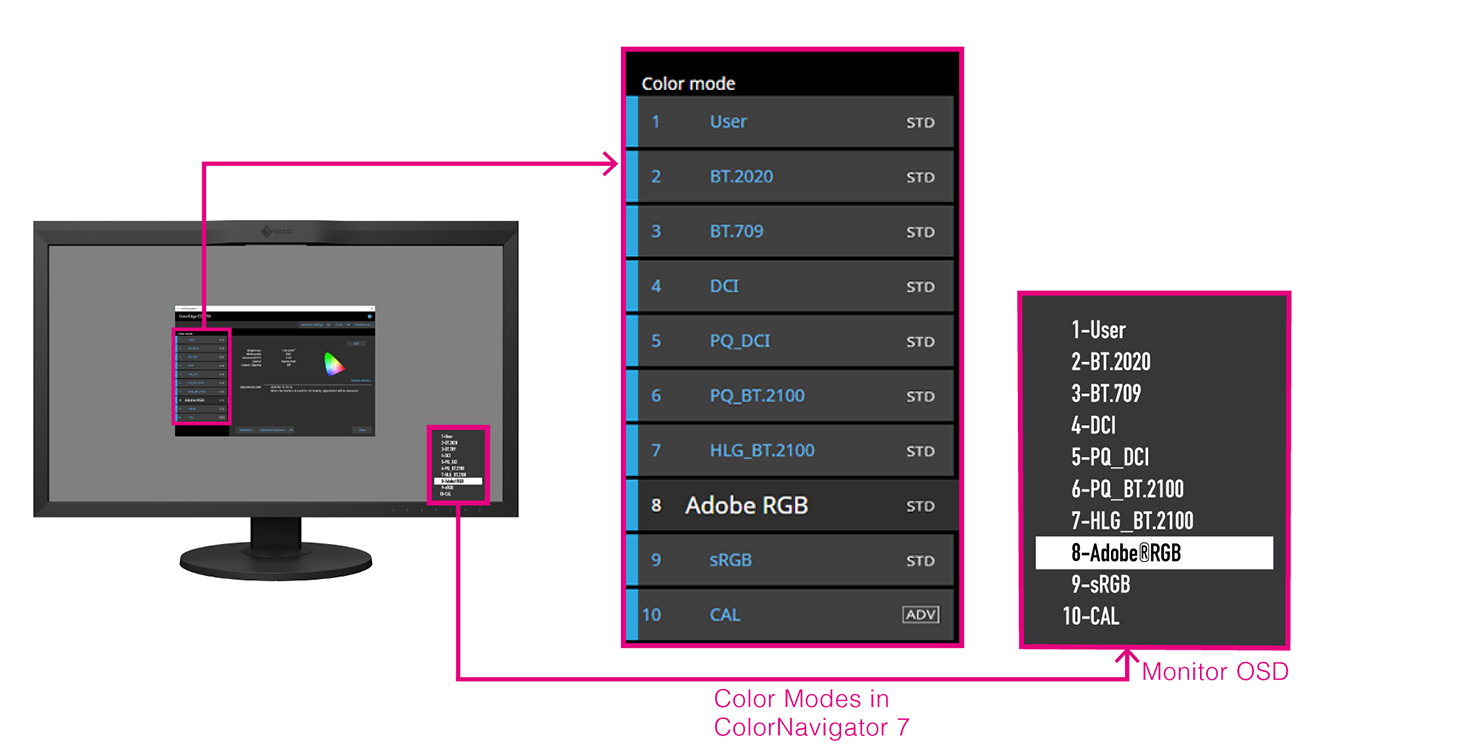

Multiple Color Modes

ColorNavigator 7 includes multiple color modes so you can choose the one that matches your field's target values. Furthermore, the color mode list is populated according to the monitor's OSD menu so you can rest assured that all possible options are covered.

Multiple Color Modes

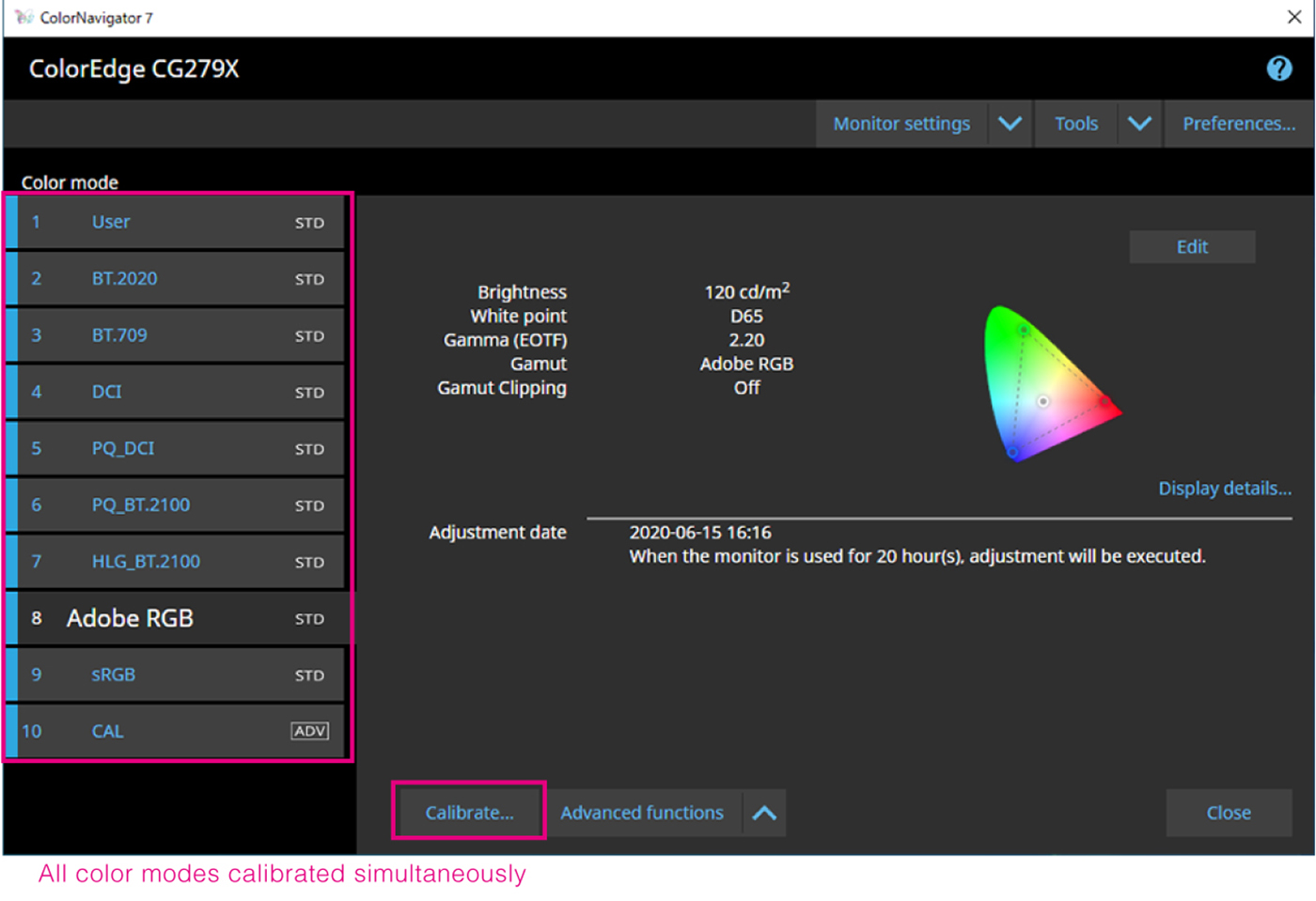

Calibrate All Color Modes at Once

New with ColorNavigator 7 is the ability to calibrate every color mode (Standard Mode) simultaneously so you do not have to spend time managing each one individually. This saves time and ensures your screen remains accurate no matter which color mode you work in.

Calibrate All Color Modes at Once

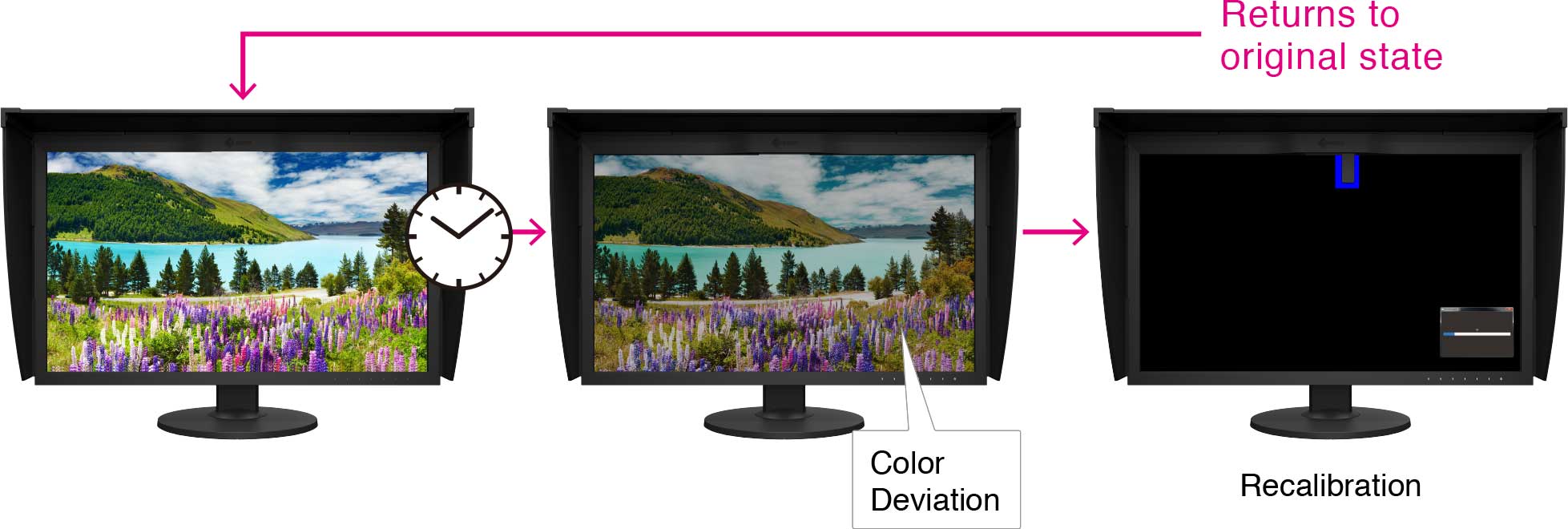

Schedule Automatic Recalibration

A monitor needs to be recalibrated at regular intervals to maintain color accuracy. With ColorNavigator 7 you can schedule the monitor to automatically recalibrate at a specific time or at regular intervals, even if the monitor is switched off. A reminder will also appear after a certain number of user-determined hours so you can be sure that your monitor maintains color consistency over time.


Features for Media & Entertainment

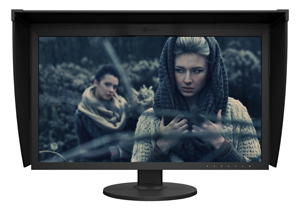

Film Emulation with 3D LUT

ColorNavigator 7 can create emulation data from the 3D LUT of the video content used in the color grading system for matching the look of the film on the monitor.
Supported by the CG Series only. Not applicable to the CG2730 or CG2420.

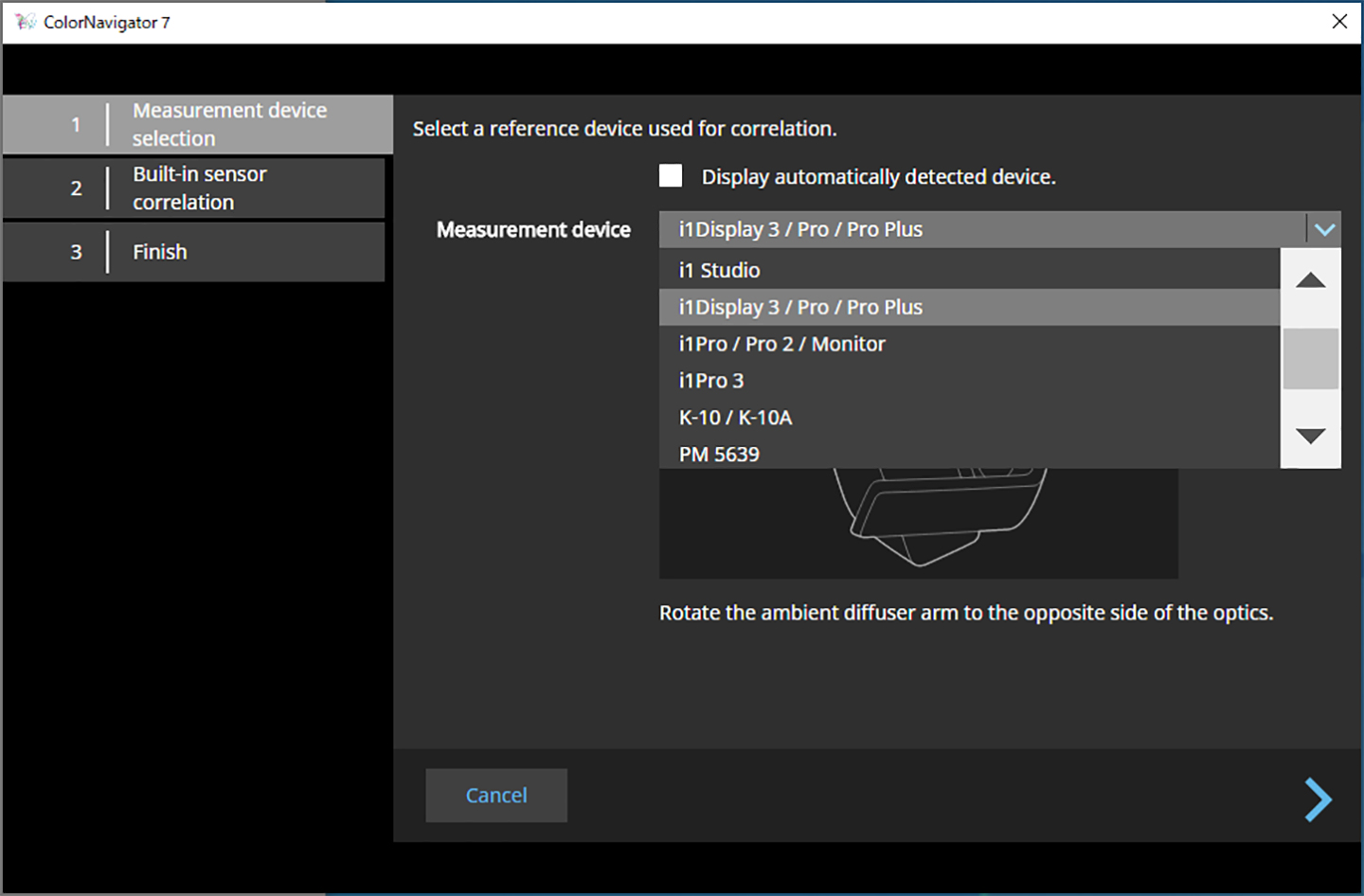

Correlation with External Sensors

Many post production, VFX, and broadcasting studios define a specific spectrophotometer as the master sensor for their internal color management framework. ColorEdge CG series built-in calibration sensors can be correlated to any high-end spectrophotometer using ColorNavigator 7 to ensure each project meets defined standards and achieves expected levels of accuracy.

Correlation with External Sensors

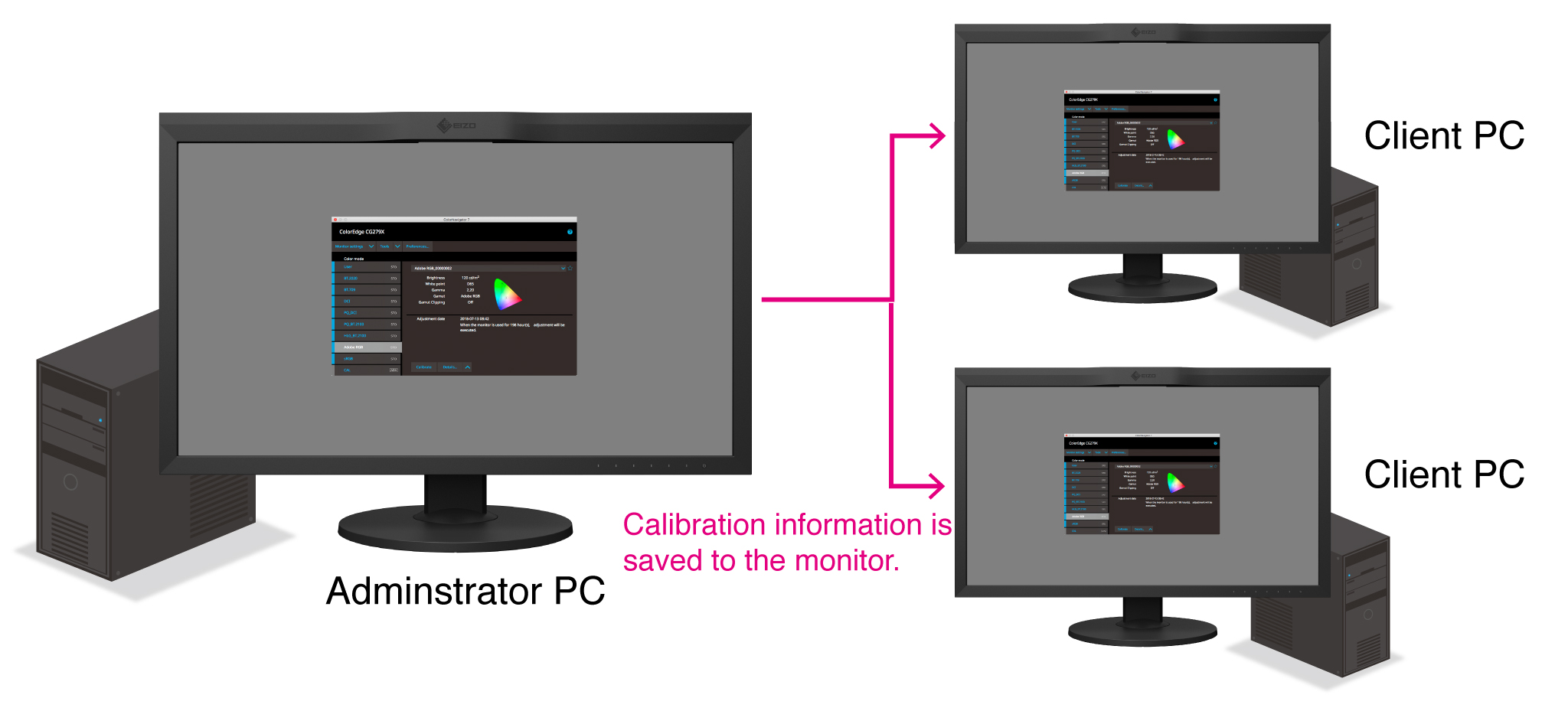

Maintain Calibration Settings with Different PCs

With ColorNavigator 7, calibration information carried out by the administrator is saved to each ColorEdge monitor instead of the operating system. This means that users do not need to recalibrate the monitor, even when using a different PC.

Maintain Calibration Settings with Different PCs

Features for Print Proofing

Fine-Tuned Manual Calibration

Sometimes due to variations in output from different printers or the special requirements of a project, it is necessary to have fine-tuned control over specific calibration targets. ColorNavigator 7 allows you to easily adjust the print proofing target's hue and saturation for all six primary and secondary colors (red, green, blue, cyan, magenta, yellow, as well as grayscale balance, to achieve the closest possible visual match.

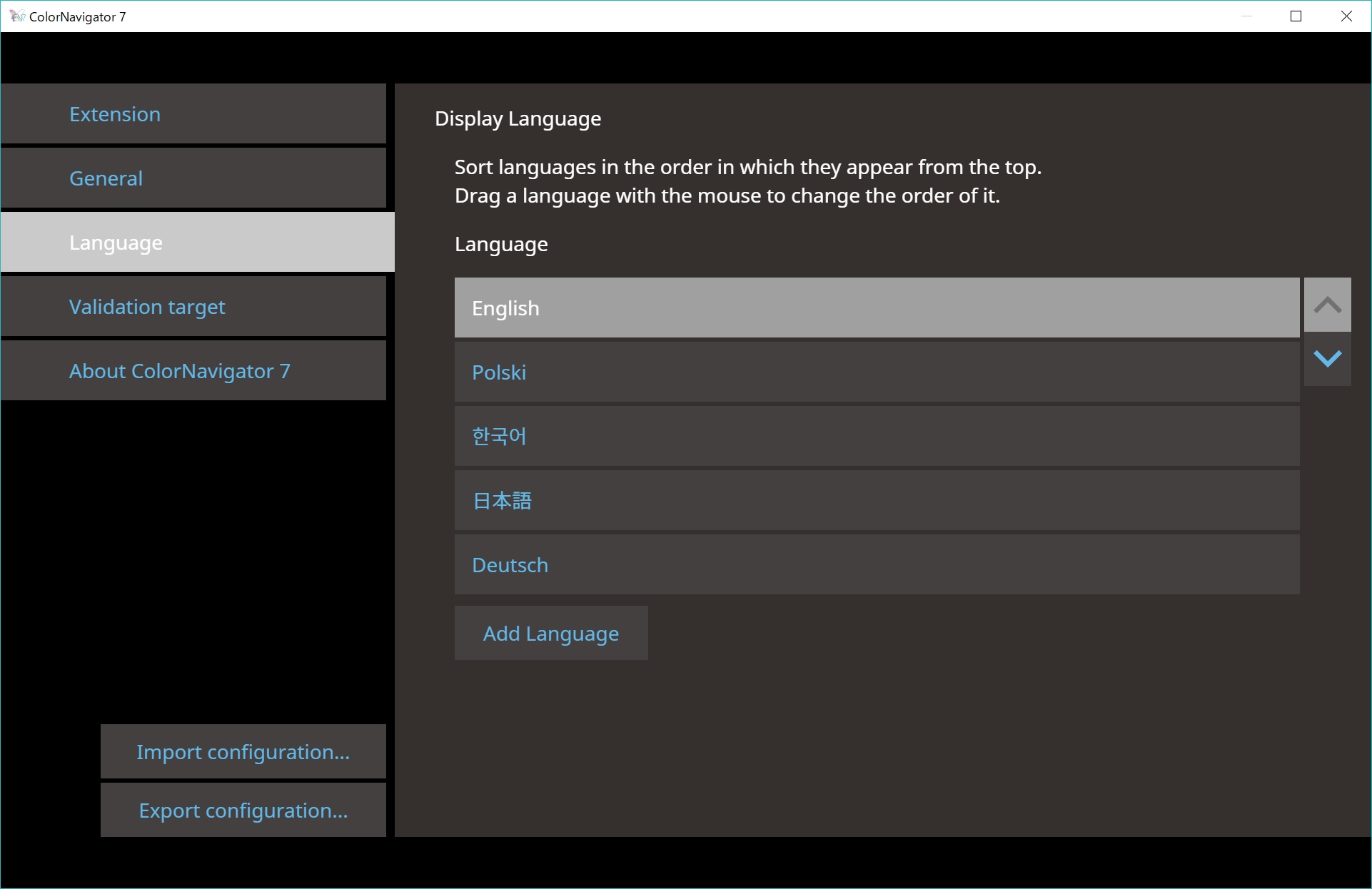

Support in Multiple Languages

ColorNavigator 7 can be run in English, German, or Japanese by default. Users can also download language packs to run the software in other languages. New language packs will continue to be added to support users worldwide. Visit the download page for currently available language packs.
Download language packs here.





Download ColorNavigator 7

ColorNavigator 7 is available as a free download here.

System Requirements

Supported Monitors CG3146, CG3145, CG319X, CG318-4K, CG248-4K, CG279X, CG277, CG2730*, CG247X, CG247, CG2420*, CX271, CX241, CS2740, CS2731, CS2730, CS2420, CS2410, CS270, CS240 *LogView LUT and ICC Profile Emulation are not available.
CX270, CX240, CS230 - Color Mode selection not available.
- LogView LUT and ICC Profile Emulation are not available.
CG276, CG275W, CG246, CG245W - Color Mode selection not available.
- LogView LUT and ICC Profile Emulation are not available. ICC Profile Emulation is available with ColorNavigator 6.



Compatible OS Mac Windows Linux
macOS Monterey (12) / macOS Big Sur (11) / macOS Catalina (10.15) / macOS Mojave (10.14) / macOS High Sierra (10.13) Windows 11 / Windows 10* (64-bit)

* The ARM-based Windows 10 is not supported.
Red Hat Enterprise Linux 7 (64-bit)



Compatible Measurement Devices

Supported measurement devices differ by the ColorNavigator version. Please check the compatibility chart (PDF).

*1 In ColorNavigator 7, select i1Display 3 / Pro / Pro Plus for the sensor name.
*2 In ColorNavigator 7, select i1 Studio for the sensor name.
*3 Below indicated sensors are not supported by macOS Catalina (10.15) or later.
*4 Below indicated sensor is not supported by macOS models using the Apple M1 chip.

Manufacturer Supported Sensor ColorEdge Series (excludes CG3146 / CG3145) ColorEdge CG3146 / CG3145 Notes
X-Rite i1 Monitor (XRGA) Yes Not Supported - Ambient light adjustment is not available with the i1Monitor or i1 Display.
- When measuring the CG3146 / CG3145 using i1 Pro 3/i1 Pro 2, it is necessary to place the device away from the panel surface.
- i1 Display Studio is not supported.
i1 Pro (XRGA) Yes Not Supported
i1 Pro 2 (XRGA) Yes Yes
i1 Pro 3 Yes Yes
i1 Display 3 Yes Not Supported
i1 Display Pro Yes Not Supported
i1 Display Pro Plus Yes Not Supported
i1 Studio Yes Not Supported
ColorMunki PHOTO Yes Not Supported - ColorMunki Display and ColorMunki Smile are not supported.
ColorMunki DESIGN Yes Not Supported
Calibrite ColorChecker Display Pro*1 Yes Not Supported - ColorChecker Display is not supported.
ColorChecker Display Plus*1 Yes Not Supported
ColorChecker Studio*2 Yes Not Supported
Datacolor Spyder4 Yes*3 Not Supported - Ambient light adjustment and gray balance prioritizing function are not available.
Spyder5 Yes Not Supported
SpyderX Yes Not Supported
EIZO EX2 Yes*3 Not Supported
EX3 Yes Not Supported
EX4 Yes Not Supported
Built-In Calibration Sensor Yes (excludes CS series) Yes (excludes CG3145) - Ambient light adjustment, paper white measurement and gray balance prioritizing function are not available.
basICColor DISCUS Yes*4 Not Supported - Drivers not included.
Klein K-10 Yes Yes - Ambient light adjustment and paper white measurement are not available.
K-10A Yes Yes
Photo Research PR-655 Yes Yes - Ambient light adjustment and paper white measurement are not available.
PR-680 Yes Yes
Konica Minolta CS-2000 Yes Yes - Not compatible with macOS.
- Ambient light adjustment and paper white measurement are not available.
- Drivers not included (Except CA-410).
CS-2000A Yes Yes
CS-200 Yes Yes
CA-210 Yes Not Supported
CA-310 Yes Not Supported
CA-410 Yes Yes
Colorimetry Research CR-100 Yes Yes - Ambient light adjustment is not available.
CR-250 Yes Yes
CR-300 Yes Yes
JETI Specbos 1211 Yes Yes - Ambient light adjustment is not available.
Spectraval 1501 Yes Yes
TOPCON SR-3 Yes Not Supported - Ambient light adjustment is not available.
- Not compatible with macOS.
SR-UL1R Yes Yes
DK Technologies PM-5639 Yes Not Supported - Ambient light adjustment is not available.
- Not compatible with macOS.

Download ColorNavigator 7

ColorNavigator 7 is available as a free download here.

Manuals

Languages

Document Language Size Download
ColorNavigator 7 Advanced Photo Printing Instructions English 4.32 MB Download
ColorNavigator 7 User's manual English 4.45 MB Download
ColorNavigator 7 User's manual for macOS Big Sur (11, M1) English 4.08 MB Download
ColorNavigator 7 User's manual Chinese-Simplified 4.82 MB Download
ColorNavigator 7 User's manual for macOS Big Sur (11, M1) Chinese-Simplified 4.44 MB Download
ColorNavigator 7 User's manual German 4.57 MB Download
ColorNavigator 7 User's manual for macOS Big Sur (11, M1) German 4.2 MB Download

Compatibility

Date Subject
November 25, 2021 Microsoft Windows 11 and EIZO Software Compatibility
November 18, 2021 macOS Monterey (12) and EIZO Software Compatibility
July 6, 2021 macOS Big Sur (11) and EIZO Software Compatibility
June 29, 2021 Microsoft Windows 10 May 2021 Update (21H1) and EIZO Software Compatibility
May 25, 2021 Microsoft Windows 10 November 2019 Update (1909) and EIZO Software Compatibility
May 25, 2021 32-bit ColorNavigator Software and Sensors Incompatible with macOS Catalina (10.15)
May 25, 2021 macOS Catalina (10.15) and EIZO Software Compatibility
November 26, 2020 Microsoft Windows 10 October 2020 Update (20H2) and EIZO Software Compatibility
November 5, 2020 Microsoft Windows 10 May 2020 Update (2004) and EIZO Software Compatibility
