DuraVision FDF2121WT-A
21.5" Touch Panel Color LCD Monitor
The DuraVision FDF2121WT-A is a fully flat multitouch monitor for use in factories, clean rooms, and public access areas. It offers flexible installation and exceptional durability for long-term use.
  • Contact EIZO
2 items


  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

Fully Flat Design

The fully flat design enables seamless touch operation across the screen. The smooth surface allows for easy cleaning.

Fully Flat Design

Touch Operation with Your Hand, Glove, or Stylus

The DuraVision FDF2121WT-A uses surface acoustic wave technology (SAW) which exhibits a higher light transmittance compared with resistive touch panels for high visibility. It supports 2-point multi-touch operation and accepts touch input even when wearing gloves, as well as from styluses. This makes it easy to use in factories, clean rooms, and public access areas.

Touch Operation with Your Hand, Glove, or Stylus

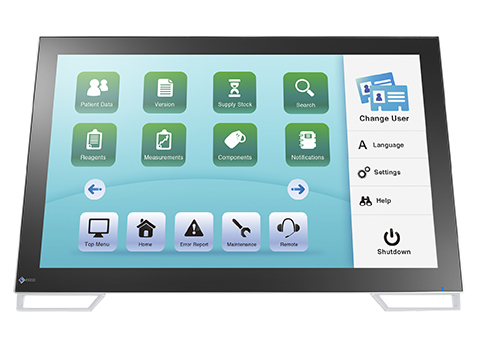

High Visibility

The antiglare screen minimizes reflections to maintain high visibility. It is also resistant to fingerprints to ensure clear images at all times.

High Visibility

Reclining Stand

The monitor's reclining stand provides flexible positioning of the screen to the desired angle. A desktop stand with tilt is also available, as well as compliance with the VESA standard for mounting on an arm or other fixture.

Reclining Stand

Durable and Reliable

The screen has a non-scratch surface made of reinforced glass with a hardness of 7H (Mohs scale), making it durable for long-term use. The monitor can withstand temperatures ranging from 0 - 40°C.

Durable and Reliable

Multiple Inputs

The monitor is equipped with DisplayPort, DVI-D, and D-Sub inputs for supporting digital and analog signals. The terminals are positioned on the side of the monitor for easy access.

Multiple Inputs

Touch Operation Without Additional Drivers

The multitouch interface is supported by standard Windows 10 or 8.1 drivers. You can operate the touch panel without additional drivers by simply connecting the USB cable.

Built-In Stereo Speakers

The DuraVision FDF2121WT-A comes equipped with built-in 1.0 W + 1.0 W speakers for environments which require sound output from the monitor.

24-Hour Use, 3-Year Warranty

The monitor is built for 24-hour use and is backed by a 3-year manufacturer's warranty for long-term reliability.

Model Variations FDF2121WT-AGY: with LaidBack stand, gray
FDF2121WT-ABK: with LaidBack stand, black
FDF2121WT-ATGY: with Tilt stand, gray
FDF2121WT-ATBK: with Tilt stand, black
FDF2121WT-AFGY: without stand, gray
FDF2121WT-AFBK: without stand, black
Panel
Type VA
Backlight LED
Size 21.5" (54.7 cm)
Native Resolution 1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V) 476.6 x 268.1 mm
Pixel Pitch 0.248 x 0.248 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 200 cd/m2
Contrast Ratio (typical) 5000:1
Response Time (typical) 25 ms (black-white-black)
Touch Panel
Type Surface Acoustic Wave
Touch Points 2
Surface Treatment Anti-Glare coating, Anti-Fingerprint coating
Communication Protocol USB
Surface Hardness 7 Mohs
Compatible OS Windows 10 / 8.1 (64-bit, 32-bit)
Video Signals
Input Terminals DisplayPort (HDCP1.3), DVI-D (HDCP1.4), D-Sub mini 15 pin
Digital Scanning Frequency (H / V) 31 - 68 kHz, 59 - 61 Hz
Analog Scanning Frequency (H / V) 31 - 81 kHz, 55 - 76 Hz
Sync Formats Separate
USB
Upstream USB 2.0: Type-B
Audio
Speakers 1.0 W + 1.0 W
Input Terminals Stereo mini jack, DisplayPort
Power
Power Requirements AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption 11 W
Maximum Power Consumption 33 W
Power Save Mode 2.0 W or less
Features & Functions
Preset Modes User1, User2, sRGB
OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
Others Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, DDC/CI, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, Power Indicator, Reset
Physical Specifications
Dimensions (Landscape, W x H x D) With LaidBack stand: 533 x 139 – 347.5 x 89 – 401.5 mm
With Tilt stand: 533 x 402 x 157 mm
Dimensions (Without Stand, W x H x D) 533 x 326 x 54 mm
Net Weight With LaidBack stand: 6.5 kg / 14.3 lbs
With Tilt stand: 8.4 kg / 18.5 lbs
Net Weight (Without Stand) 6.0 kg / 13.2 lbs
Tilt With LaidBack stand: 15° - 70°
With Tilt stand: 30° Up, 0° Down
Hole Spacing (VESA Standard) 100 x 100 mm, M4, screw depth 3.0 - 9.5 mm
Environmental Requirements
Operating Temperature 0 - 40°C
Operating Humidity (R.H., non condensing) 20 - 90%
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, UKCA, cTUVus, FCC-B, CAN ICES-3 (B), VCCI-B, CCC, RoHS, WEEE, China RoHS
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables DVI-D (2 m), D-Sub mini 15 pin (1.8 m)
Others USB Type-A - USB Type-B cable (1.8m), Audio cable (2.1m), Setup manual, CD-ROM, VESA mounting screw x 4 (Freemount Only)
Warranty 3 Years (24-hour use)
